Downspout Adapters

An adapter connects components with different shapes or dimensions, such as a rectangular downspout and a round receiving pipe. The correct fitting must match both connections and the available installation space.

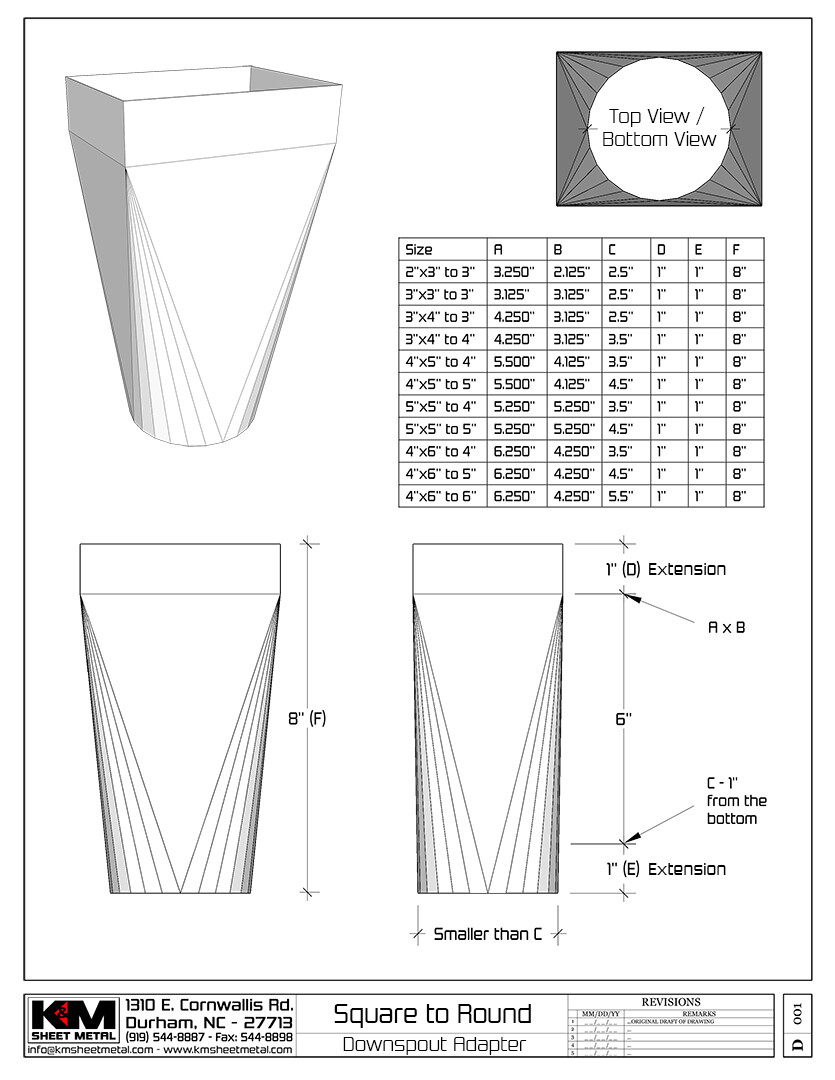

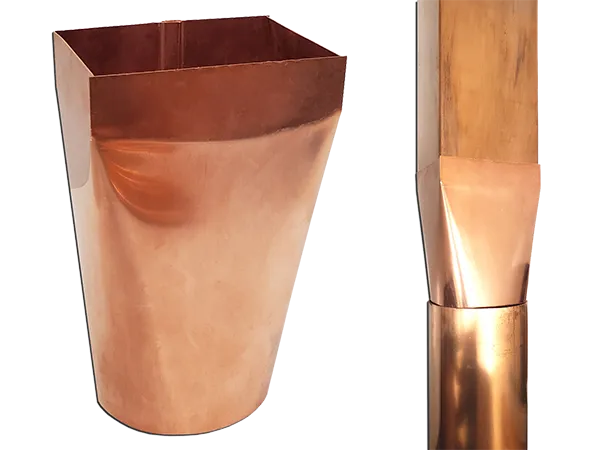

A square-to-round adapter changes the pipe shape from square or rectangular to round. A round reducer funnel transitions between round sizes. Choose according to the actual shape and measurements of both components.

Measure both ends of the connection. Record the downspout profile and outside dimensions, the receiving pipe’s inside opening and material, and the available height. Compare the measurements with the selected product drawing instead of relying only on nominal size labels.

Do not assume so. Pipe wall thickness, socket design and fitting type affect the actual opening. Identify and measure the receiving pipe or socket before ordering, and confirm which part is intended to fit inside the other.

Check the actual profile and dimensions before selecting the adapter. Corrugations, seams and end shape affect fit. Send measurements and a photo if the published drawing does not establish compatibility with your pipe.

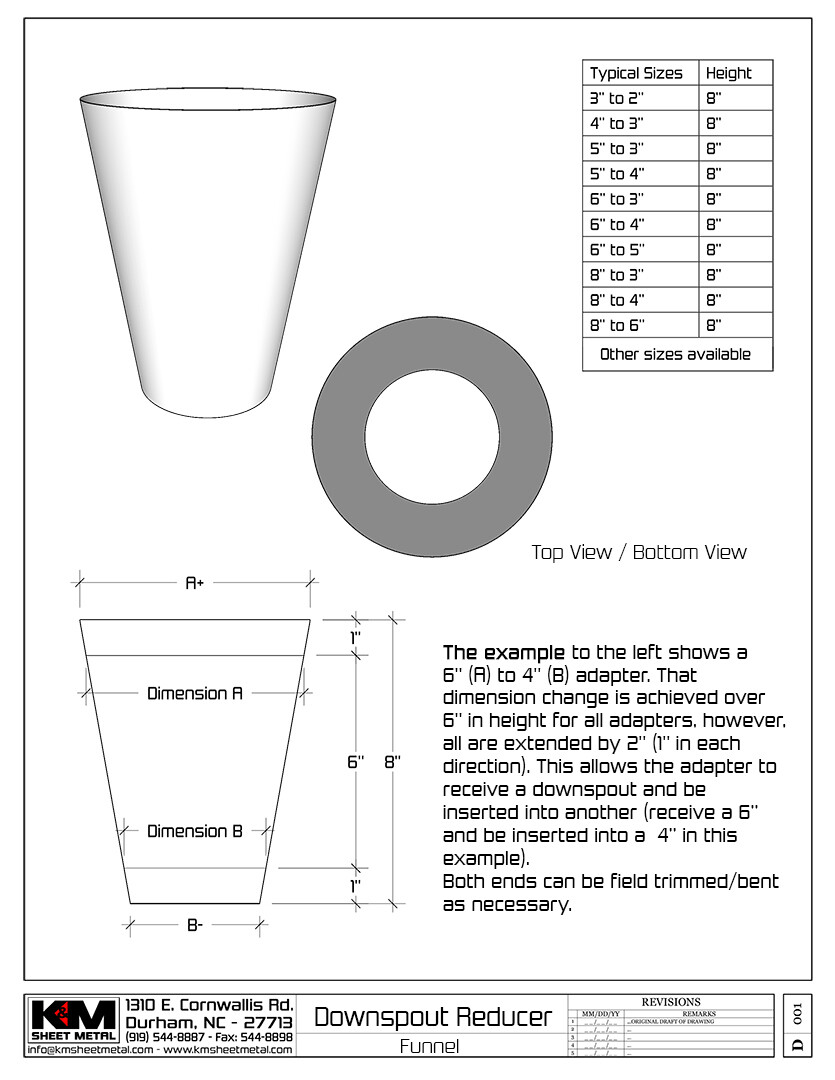

The round reducer funnel is described as 8 inches overall, with a 6-inch transition and 1-inch connection allowances at each end. Confirm the overall height of a square-to-round adapter for the selected configuration before ordering or cutting the downspout.

Only after confirming that the downstream drainage system can handle the incoming water. A reducer creates a physical connection but does not increase the capacity of the smaller pipe. Check the complete drainage route when choosing a reduction.

Not necessarily. Overflow can involve blockage, insufficient capacity or another problem elsewhere in the drainage route. Check the gutter, outlet, downspout and receiving drain before changing the connection size.

The reducer funnel description allows field trimming or forming where necessary. Dry-fit the assembly first and preserve enough overlap for both connections. Ask K&M before making an adjustment that substantially changes the intended fit.

The appropriate joining method depends on the metal, finish and receiving component. Soldering may suit a specified solderable-metal assembly; other connections use compatible mechanical fastening and any sealing required by the joint design. Do not apply one joining method to every material.

No, our downspout adapters are meant for a gravity drainage system and are not intended or designed for any pressure related plumbing.

Yes. Contact K&M with a dimensioned sketch showing both openings, overall height, connection direction and any offset. Include the material, finish, quantity and delivery location so the fabrication options can be reviewed.

Specify the material, coating and color as completely as possible. Existing finishes may have weathered, and similar color names do not guarantee an exact match. Compare a physical sample where available before making a final choice.

The square-to-round and reducer funnel are made-to-order products. Preparation time depends on the selected configuration and production schedule. Confirm the estimated lead time for your order and allow separately for shipping.

Check the selected product’s downloads or the Submittals and Downloads page for the square-to-round adapter and reducer funnel references. Verify that the drawing matches your intended configuration, especially for custom work.
