WUKO Standing Seam Lock’n’Roller 1040

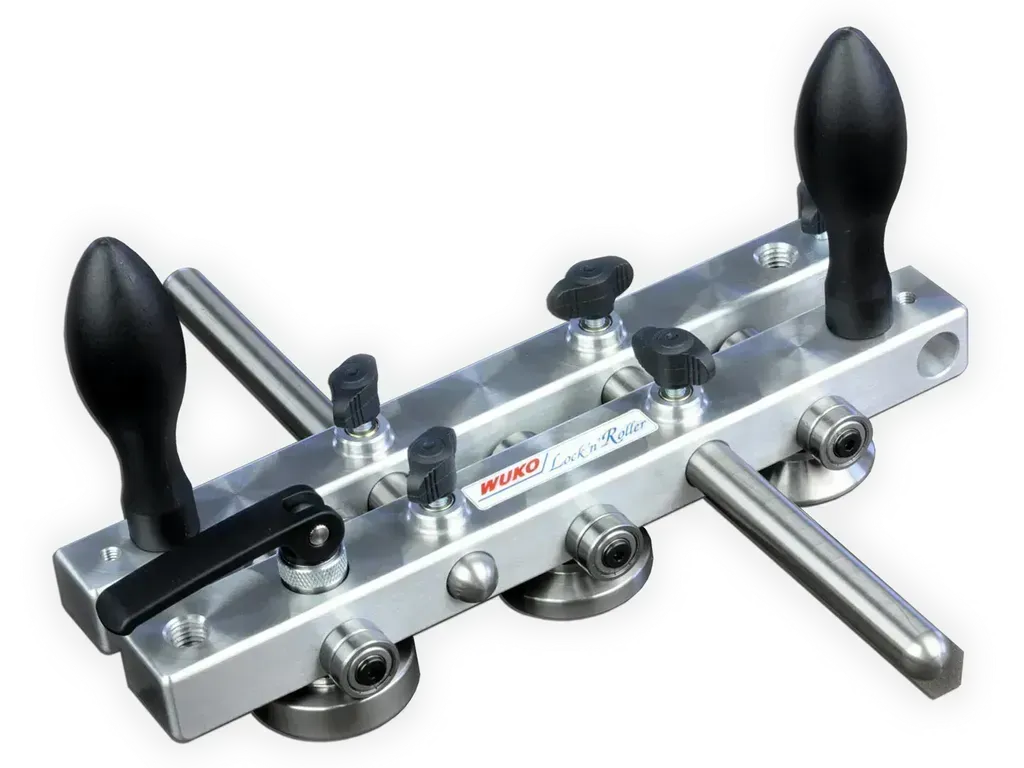

WUKO Lock’n’Roller 1040 with Carrying Case

Tool for closing the single-lock standing seam

The Lock'n'Roller 1040 is a tool used to easily and quickly lock the fist stage of a standing seam metal roof panel system, called the single lock.

Using the Wuko Lock'n'Roller

1 - Close a short piece of seam e.g. with pliers
2 - Place the WUKO Lock’n’Roller on the seam, adjust to seam width, fix with wing screws
3 - Move the tool forward (using handholds, handle bars or rope)
4 - If necessary increase or reduce contact pressure with the eccentric lever
Removing the WUKO Lock’n’Roller from the seam:
5 - Drive out at the end of the seam at any time by opening the eccentric lever (relieving of pressure) and loosening the wing screws
6 - bring back to the beginning of the seam

Using the Wuko Lock'n'Roller to easily lock batten seams!

1 - Purchase 2 Lock'n'Rollers
2 - Combine 2 of the sides with the holders
3 - Use it as described above
6 - bring back to the beginning of the seam
Another great tool from the Wuko Arsenal.
Wuko tools are a must have tools for metal roofers and sheet metal workers.

Specifications

  • Maximum sheet metal thickness Galvanized steel: 0.65 mm / 0.025″
  • Maximum sheet metal thickness Aluminum, copper, zinc: 0.80 mm / 0.031″
  • Maximum sheet metal thickness Stainless steel: 0.50 mm / 0.020″
  • Width of the profile: 12–15 mm / 0.47″-0.59″
  • Weight: 2.9 kg / 5 lbs.
  • Tool length: 270 mm / 10.6″
  • Made in Austria

Details

  • Closes the profile in both directions
  • Clever system of eccentric lever with disc springs
  • adjustment of the pressure if necessary
  • clean and precise result regardless of material
  • Simple removal of the tool from seam by relieving pressure – at any time and without scratching
  • Ergonomic handholds above and on both sides of the tool
  • Forming rollers of stainless steel
  • Rope-tying device included
  • Carrying case included

Wuko Lock'n'Roller 1040 in action

WU5792

WUKO Standing Seam Lock’n’Roller 1040

Product SKU : WU5792
Helpful Crowd review badge icon
$ 1,129.00 1129.0 USD $ 1,129.00
$ 1,129.00
/ ea
    This combination does not exist.


    ADD TO CART BUY NOW
