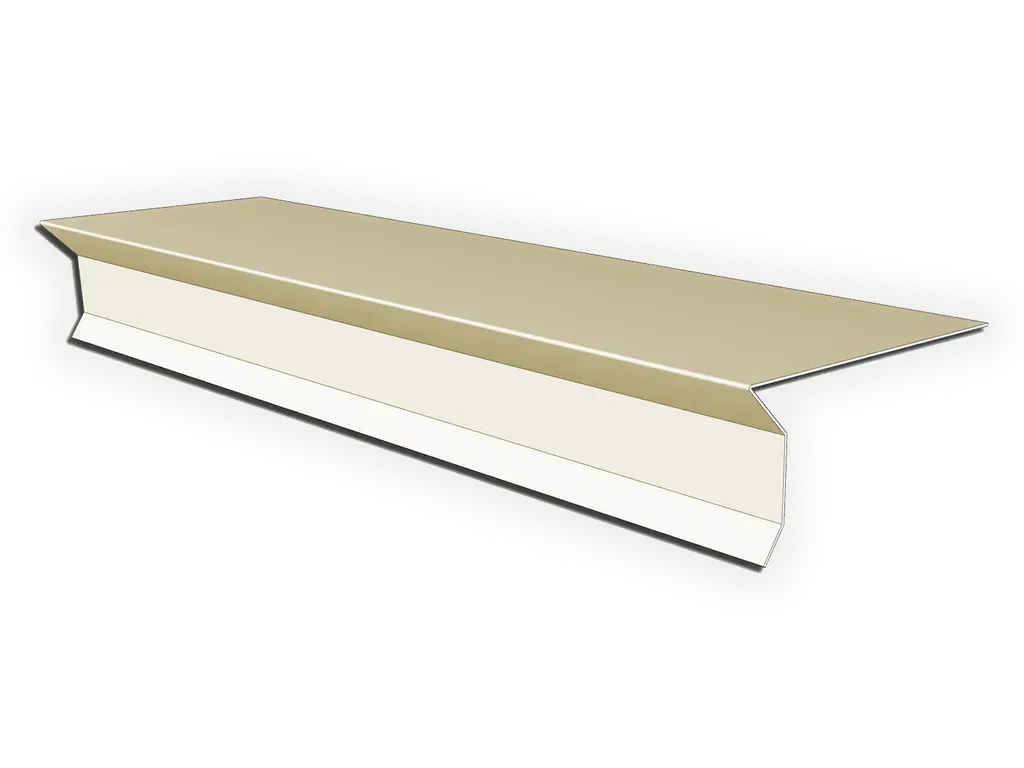

D-Style Shingle Roof Drip Edge Flashing Metal with Kick - 10' Length
Available in 24 Gauge Kynar® Steel.
This simple drip edge profile known as "D-Style" most commonly used on shingle roofs, but can be used for tile or slate roofs as well.
This style of drip edge is a preferred choice for most shingle roofers for the ease to work with and because the overhang helps with directing water away
from the vertical portion of the drip edge, minimizing the risk of the water going back against the fascia.
The name drip edge comes from the kick portion of this profile, at the very bottom, responsible for kicking the water away from the fascia board.
That portion is essentially a drip edge.
For modified profiles, send us an email with a sketch for a quote.
Specifications
- Material: 24 Gauge Kynar® Steel
- 10' Lengths
- Made to Order
- Made in the USA
| (H) Nominal Size | Material | (A) Kick | (B) Face | (C) Overhang | (D) Roof / Deck | Stock (Total Material) |
|---|---|---|---|---|---|---|
| 1.5" | 0.027" Aluminum | 0.375" | 0.75" | 0.625" | 3.25" | 5" |
| 1.5" | 0.027" Aluminum | 0.375" | 1.75" | 0.75" | 3.125" | 6" |
| 1.5" | Copper, Freedom Gray, Lead Coated Copper | 0.375" | 0.75" | 0.625" | 3.392" | 5.142" |
| 2.5" | Copper, Freedom Gray, Lead Coated Copper | 0.375" | 1.75" | 0.75" | 3.125" | 6" |
| 2.5" | Aluminum, Steel, Galvalume and Stainless Steel | 0.375" | 0.75" | 0.625" | 3.583" | 5.333" |
| 2.5" | Aluminum, Steel, Galvalume and Stainless Steel | 0.375" | 1.75" | 0.75" | 3.125" | 6" |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum Steel
Charcoal Grey Aluminum Steel
Classic Bronze (Dark Bronze) Aluminum Steel
Medium Bronze Aluminum Steel
Coppertone (Faux Copper) Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
