Stainless Steel Z Flashing

Product SKU :

17.95 17.95 USD 17.95

17.95

/ ea
  • Product custom made to order
  • Material
  • Size
  • Dimensions (For Custom Profiles ONLY)

This combination does not exist.

ADD TO CART

Select Variant Min. Quantity Price per Unit

Terms and Conditions
30-day money-back guarantee
Lead Time: 5.0 Days

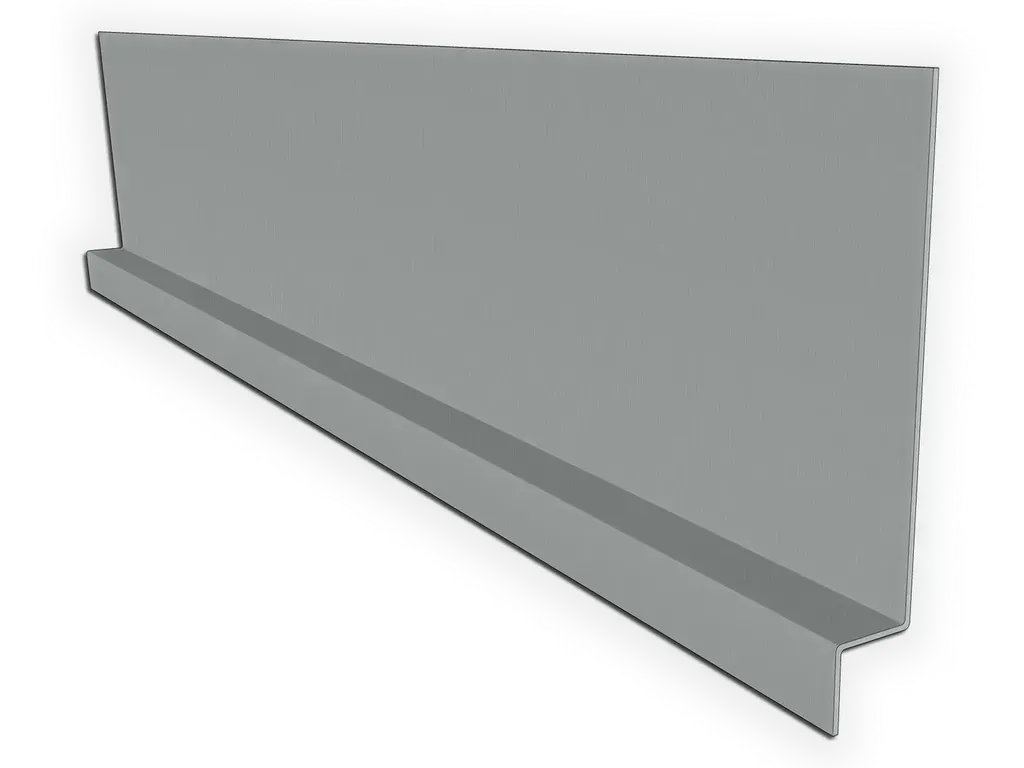

Z Flashing Metal - 10' Length

Edge metal available in 24 and 26 Gauge Stainless Steel 304 2B.

This simple flashing profile is used on siding, roofing, EIFS, stucco, masonry and for odd, random jobs. On siding applications, this flashing is used to protect the seams from water infiltration.
Custom dimensioned profiles can be ordered through this page. Other profiles are available on our webstore. For quotes on more intricate flashings, please send us an email.

Specifications

  • Material: 24 and 26 Gauge Stainless Steel 304 2B
  • 10' Lengths
  • Made to Order
  • Made in the USA
Nominal Size Material (A) (B) (C) Stock (Total Material)
3/8" Copper, Freedom Gray, Lead Coated Copper 0.375" 0.375" 2.25" 3"
5/8" Copper, Freedom Gray, Lead Coated Copper 0.375" 0.625" 2" 3"
Custom Copper, Freedom Gray, Lead Coated Copper Custom Custom Custom Optimal at 3", 6", 12", 18", 24"
3/8" Aluminum, Steel, Galvalume and Stainless Steel 0.375" 0.375" 2.25" 3"
5/8" Aluminum, Steel, Galvalume and Stainless Steel 0.375" 0.625" 2" 3"
4x4 Aluminum, Steel, Galvalume and Stainless Steel Custom Custom Custom Optimal at 3", 4", 6", 8", 9.6", 12", 16", 24", 36"

All dimensions are approximate with ~1/8" tolerance.

Ordering Instructions
  • 1 - Pick your material/color. For other materials navigate back to Edge Metal.
  • 2 - Pick your profile dimensions. These are provided in the chart above. If a custom dimensioned profile is desired, pick the appropriate stock size: If adding all dimensions of your custom profile (A+B) equals 6.5", you'll pick the next dimension up, in this case 9" or 8" depending on the material.
  • 3 - This is where you'll enter dimensions for fields A and B if custom dimensioned profile is desired, as well as the custom inside angle, otherwise leave blank.
  • 4 - If you prefer to email a sketch you can use this field, otherwise, leave blank.
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper

Copper

Pre Patina Copper

Pre Patina Copper

Freedom gray

Freedom Gray®

Galvalume Plus

Galvalume Plus

Lead coated copper

Lead Coated Copper

Stainless Steel

Stainless Steel

Zinc

Zinc

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
