Masonry Drip Edge - 10' Length
Available in Stainless Steel, Galvanized Steel and other materials as special order.

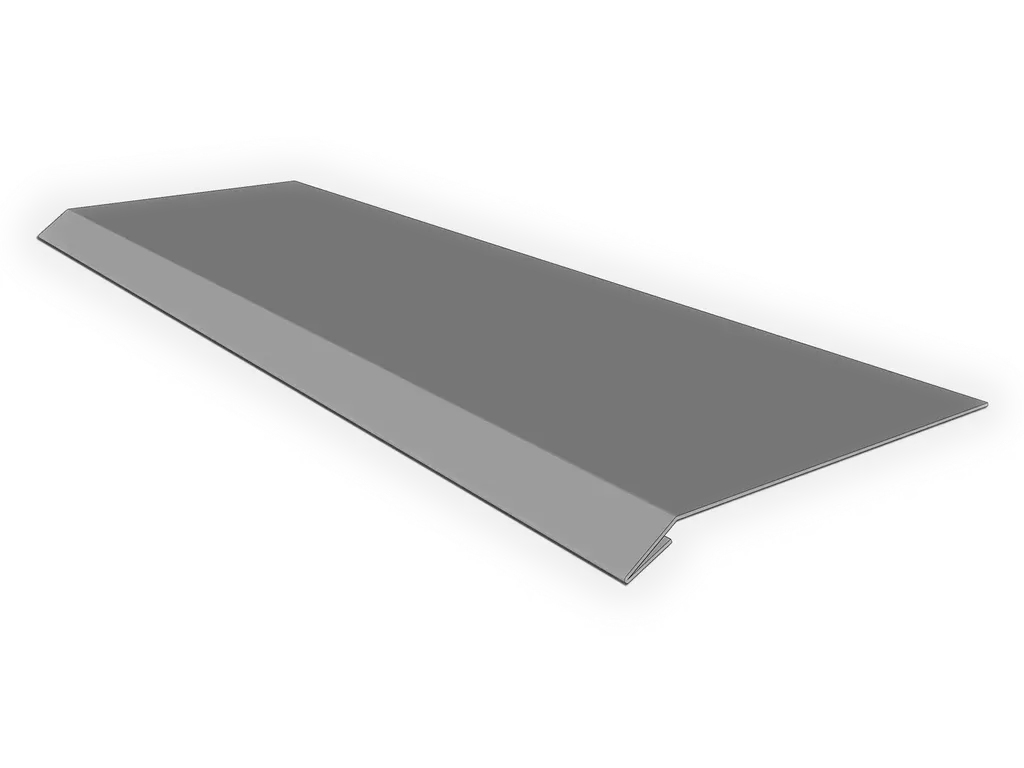

This simple drip edge profile is used to divert water away from the surface of the wall of a building. It features a 0.5" kick with a
0.375" closed hem but can be customized to different sizes.
The most commonly used material for this style masonry drip edge is 26 gauge 304 2B finish, but 316 alloy as well as 24 gauge or even thicker may be purchased
as a special order.
This profile is also commonly used for roofing, EIFS and stucco flashing.
For modified profiles, send us an email with a sketch for a quote.
Specifications
- Material: 26 Gauge 304 Stainless Steel 2B Finish
- 10' Lengths
- Made to Order
- Made in the USA
| Nominal Size | (A) Kick | (B) Drip | (C) | Stock (Total Material) |
|---|---|---|---|---|
| 4" | 0.375" | 0.5" | 3.125" | 4" |
| 6" | 0.375" | 0.5" | 5.125" | 6" |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Stainless Steel
Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
