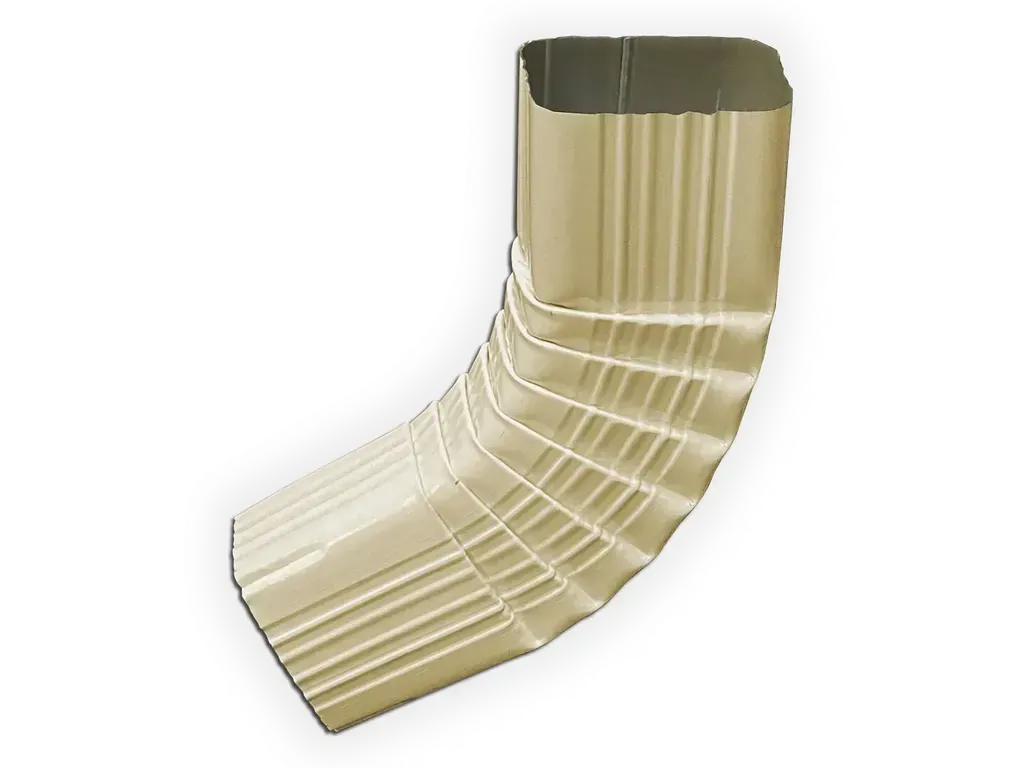

Square Corrugated 0.032" (B) Aluminum Elbow
Available in several colors. 0.032" Kynar® Aluminum.
Elbows are fittings designed to change the downspout direction in pre specified angles.
A "B" style elbow refers to an elbow that, when attached to a downspout, angles the downspout sideways in reference to a building.
Our square corrugated elbows are available in the colors below and match our downspouts.
The square corrugated downspout and elbow system is commonly used with k-style and box gutters, but can be used with any other gutter system.
The non crimped end easily fits over the outside of an outlet or the crimped end of a downspout. We also sell
crimpers for the downspout portion not crimped (if it was trimmed for example).
Custom colors and materials are available. Please contact us for pricing.
Specifications
- Size: 3" x 4"
- Material Thickness: 0.032"
- Angle: #0 (30°), #1 (45°), #2 (60°), #3 (75°) and #4 (90°)
Submittals & Downloads
Color and Material Options
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Downspout Elbow Color Options
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Downspout Elbow Color Options
Black Aluminum Steel
Charcoal Grey Aluminum Steel
Classic Bronze (Dark Bronze) Aluminum Steel
Medium Bronze Aluminum Steel
Coppertone (Faux Copper) Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
