Standard Round Corrugated / Plain Round Blonerized - Paint Grip Downspout Strap
Available in 26 Gauge G90 Bonderized Steel. Downspout wall attachment.

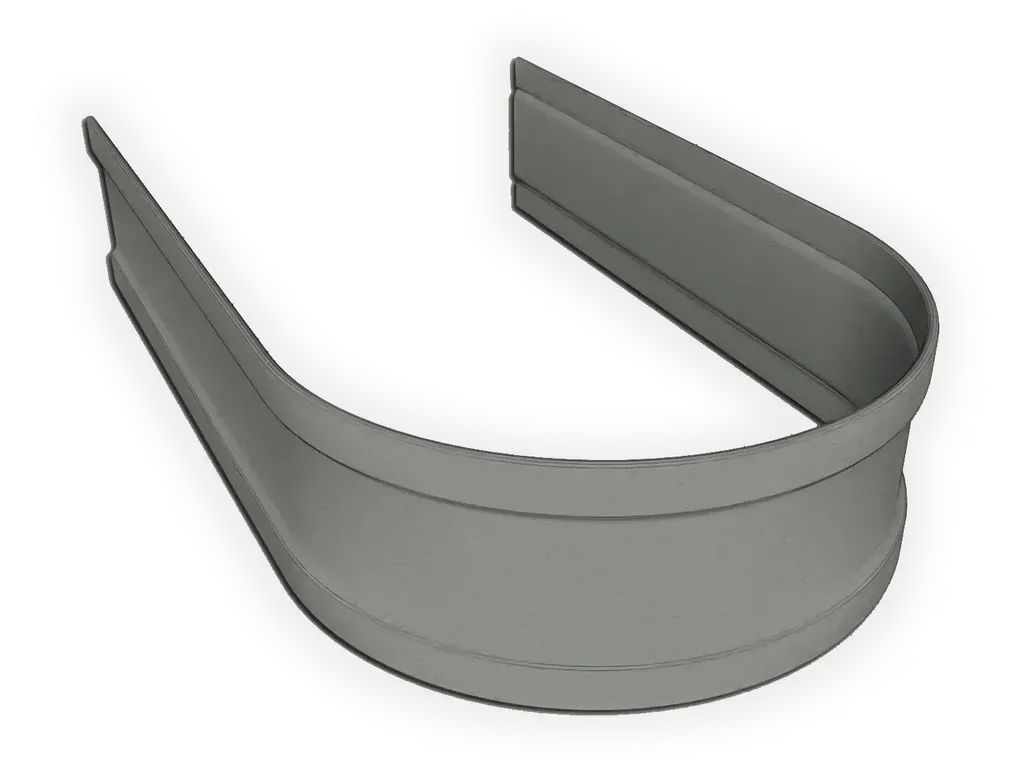

Downspout straps come flat or pre formed to fit one of our standard
downspouts. The standard leg length is for a flush to 1" downspout offset from the
wall (depending on how much is bent for the leg portion) however, if a longer length is needed please select the
larger version.
The legs on these downspout straps do not come pre bent
at the wall location to allow you to adjust the length depending on your installation.
At least two downspout straps are required for every 10 feet of downspout. Three are usually sufficient for a straight 20' foot run.
For a 10 foot run, place a strap approximately 1' from the bottom and another 1' from the top. For a 20' foot run, use the same adding a strap
right at the seam between the 2 downspouts, which also hides the seam giving it the appearance of a continuous
length.
Custom colors, sizes and materials are available as custom items. Please, contact us for a quote.
Size | A | B | C | D | E | F / Stock Size |
---|---|---|---|---|---|---|
3" | 3.125" | 2.988" | 3.125" | 6.113" | 1.562" | 14" |
3" Large | 3.125" | 4.988 | 3.125 | 8.113" | 1.562" | 18" |
4" | 4.125" | 2.700" | 4.125" | 6.825" | 1.562" | 16" |
4" Large | 4.125" | 4.700" | 4.125" | 8.825" | 1.562" | 20" |
5" | 5.125" | 3.414" | 5.125" | 8.539" | 1.562" | 20" |
5" Large | 5.125" | 5.414" | 5.125" | 10.539" | 1.562" | 24" |
6" | 6.125" | 3.129" | 6.125' | 9.254" | 1.562" | 22" |
6" Large | 6.125" | 5.129" | 6.125" | 11.254" | 1.562" | 26" |
Submittals & Downloads
PDF - Round downspout strap
Color and Material Options
Common Material Options for Downspout Cleanouts

Copper

Pre Patina Copper

Freedom Gray®

Galvalume Plus

Lead Coated Copper

Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
