Standard Valley Flashing For Roofs - 10' Length
Flashing metal used on tile, slate and metal roofs. Available in 16 oz. and 20 oz. Lead Coated Copper.
A roof valley is a channel created where two different roof slopes meet / where a roof changes direction.

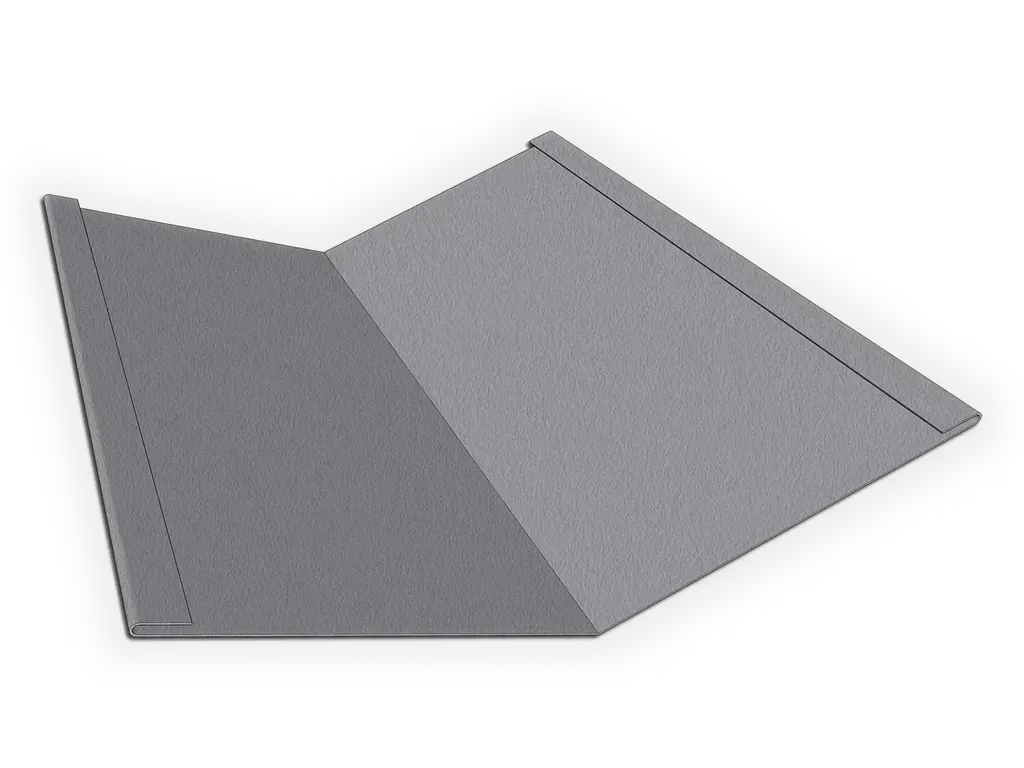

A regular valley flashing is one that features only one bend in the middle, unlike the
W valley.
The V valley profile we sell features 1/2" open hems for clip installation, while making edges not sharp which is always a plus when carrying the material. Removing the hem, will make B and C dimensions grow.
Custom profiles and dimension changes can be quoted via email.
Specifications
Material: 16 oz. and 20 oz. LCC
10' Lengths
Made to Order
Made in the USA
Nominal / Stock size
Material
(A) Open Hem
(B)
(C)
18"
Copper, Freedom Gray, Lead Coated Copper
0.5"
7.5"
1"
24"
Copper, Freedom Gray, Lead Coated Copper
0.5"
10.5"
1"
36"
Copper, Freedom Gray, Lead Coated Copper
0.5"
16.5"
1"
16"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
6.5"
1"
24"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
10.5"
1"
36"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
16.5"
1"
Hip and Valley Factor Table
Roof Pitch
Roof Slope
Hip or Valley Rafter Slope
Hip and Valley Factor
Finished Angle (Measured on the inside)
1"
4.76°
3.37°
1.4167
1.5"
7.13°
5.05°
1.4197
2"
9.46°
6.72°
1.424
166.5°
2.5"
11.77°
8.38°
1.4295
3"
14.04°
10.03°
1.4362
3.5"
16.26°
11.65°
1.444
4"
18.43°
13.26°
1.4529
154°
4.5"
20.56°
14.85°
1.4631
5"
22.62°
16.42°
1.4743
5.5"
24.62°
17.96°
1.4866
6"
26.57°
19.47°
1.5
143°
6.5"
28.44°
20.96°
1.5144
7"
30.26°
22.42°
1.5298
7.5"
32.01°
23.84°
1.5462
8"
33.69°
25.24°
1.5635
134°
8.5"
35.31°
26.61°
1.5817
9"
36.87°
27.94°
1.6008
9.5"
38.37°
29.24°
1.6207
10"
39.81°
30.51°
1.6415
126°
10.5"
41.19°
31.75°
1.663
11"
42.51°
32.95°
1.6853
11.5"
43.78°
34.12°
1.7083
12"
45°
35.27°
1.7321
120°
12.5"
46.17°
36.38°
1.7564
13"
47.29°
37.45°
1.7815
13.5"
48.37°
38.50°
1.8071
14"
49.4°
39.52°
1.8333
115°
14.5"
50.39°
40.51°
1.8601
15"
51.34°
41.47°
1.8874
15.5"
52.25°
42.41°
1.9153
16"
53.13°
43.31°
1.9437
111°
16.5"
53.97°
44.20°
1.9725
17"
54.78°
45.05°
2.0017
17.5"
55.56°
45.88°
2.0314
18"
56.31°
46.69°
2.0616
108°
18.5"
57.03°
47.47°
2.0921
19"
57.72°
48.23°
2.123
19.5"
58.39°
48.97°
2.1542
20"
59.04°
49.69°
2.1858
105°
20.5"
59.66°
50.38°
2.2177
21"
60.26°
51.06°
2.25
21.5"
60.83°
51.72°
2.2826
22"
61.39°
52.35°
2.3154
103°
22.5"
61.93°
52.98°
2.3485
23"
62.45°
53.58°
2.3819
23.5"
62.95°
54.17°
2.4156
24"
63.43°
54.74°
2.4495
24.5"
63.90°
55.29°
2.4836
All dimensions are approximate with ~1/8" tolerance.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
Product custom made to order:
I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.
Flashing metal used on tile, slate and metal roofs. Available in 16 oz. and 20 oz. Lead Coated Copper.
A roof valley is a channel created where two different roof slopes meet / where a roof changes direction.
A regular valley flashing is one that features only one bend in the middle, unlike the
W valley.
The V valley profile we sell features 1/2" open hems for clip installation, while making edges not sharp which is always a plus when carrying the material. Removing the hem, will make B and C dimensions grow.
Custom profiles and dimension changes can be quoted via email.
Specifications
Material: 16 oz. and 20 oz. LCC
10' Lengths
Made to Order
Made in the USA
Nominal / Stock size
Material
(A) Open Hem
(B)
(C)
18"
Copper, Freedom Gray, Lead Coated Copper
0.5"
7.5"
1"
24"
Copper, Freedom Gray, Lead Coated Copper
0.5"
10.5"
1"
36"
Copper, Freedom Gray, Lead Coated Copper
0.5"
16.5"
1"
16"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
6.5"
1"
24"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
10.5"
1"
36"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
16.5"
1"
Hip and Valley Factor Table
Roof Pitch
Roof Slope
Hip or Valley Rafter Slope
Hip and Valley Factor
Finished Angle (Measured on the inside)
1"
4.76°
3.37°
1.4167
1.5"
7.13°
5.05°
1.4197
2"
9.46°
6.72°
1.424
166.5°
2.5"
11.77°
8.38°
1.4295
3"
14.04°
10.03°
1.4362
3.5"
16.26°
11.65°
1.444
4"
18.43°
13.26°
1.4529
154°
4.5"
20.56°
14.85°
1.4631
5"
22.62°
16.42°
1.4743
5.5"
24.62°
17.96°
1.4866
6"
26.57°
19.47°
1.5
143°
6.5"
28.44°
20.96°
1.5144
7"
30.26°
22.42°
1.5298
7.5"
32.01°
23.84°
1.5462
8"
33.69°
25.24°
1.5635
134°
8.5"
35.31°
26.61°
1.5817
9"
36.87°
27.94°
1.6008
9.5"
38.37°
29.24°
1.6207
10"
39.81°
30.51°
1.6415
126°
10.5"
41.19°
31.75°
1.663
11"
42.51°
32.95°
1.6853
11.5"
43.78°
34.12°
1.7083
12"
45°
35.27°
1.7321
120°
12.5"
46.17°
36.38°
1.7564
13"
47.29°
37.45°
1.7815
13.5"
48.37°
38.50°
1.8071
14"
49.4°
39.52°
1.8333
115°
14.5"
50.39°
40.51°
1.8601
15"
51.34°
41.47°
1.8874
15.5"
52.25°
42.41°
1.9153
16"
53.13°
43.31°
1.9437
111°
16.5"
53.97°
44.20°
1.9725
17"
54.78°
45.05°
2.0017
17.5"
55.56°
45.88°
2.0314
18"
56.31°
46.69°
2.0616
108°
18.5"
57.03°
47.47°
2.0921
19"
57.72°
48.23°
2.123
19.5"
58.39°
48.97°
2.1542
20"
59.04°
49.69°
2.1858
105°
20.5"
59.66°
50.38°
2.2177
21"
60.26°
51.06°
2.25
21.5"
60.83°
51.72°
2.2826
22"
61.39°
52.35°
2.3154
103°
22.5"
61.93°
52.98°
2.3485
23"
62.45°
53.58°
2.3819
23.5"
62.95°
54.17°
2.4156
24"
63.43°
54.74°
2.4495
24.5"
63.90°
55.29°
2.4836
All dimensions are approximate with ~1/8" tolerance.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.

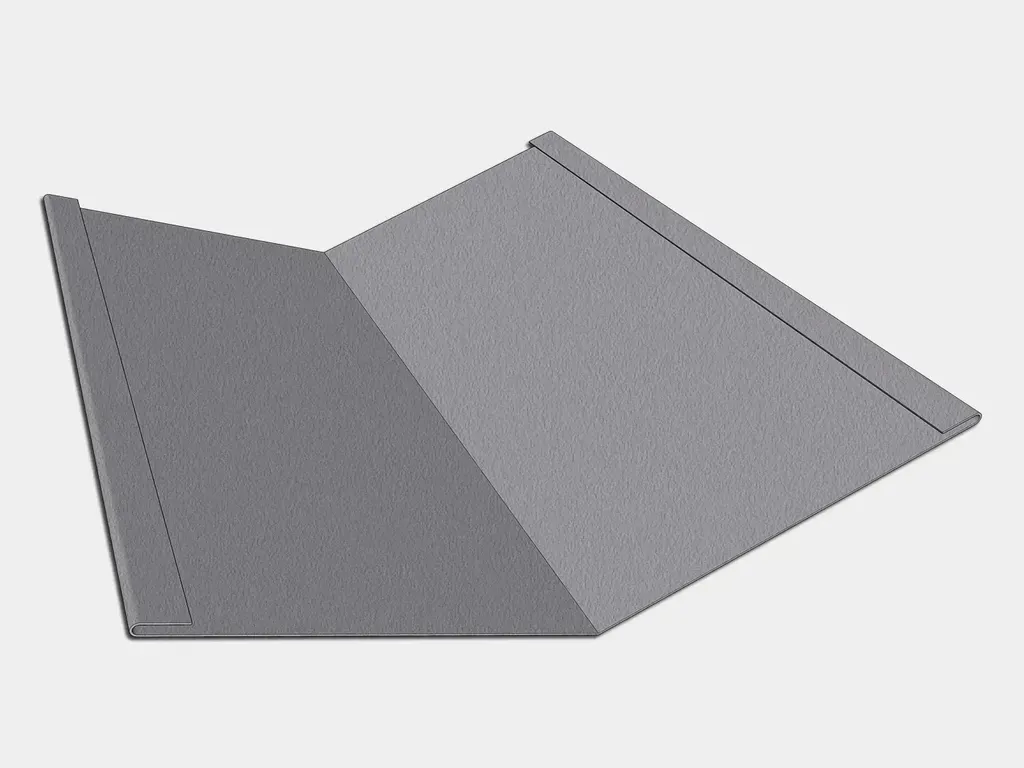

![[FVV18-1301] Lead Coated Copper Standard Roof Valley Flashing
