Ridge Cap with Rounded Top - 10' Length
Flashing metal used on tile, slate and metal roofs. Available in 16 oz. and 20 oz. Lead Coated Copper.
A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.
A Ridge Roll is a type of ridge cap with a rounded portion at its very top.
We offer one with a 3" diameter circle. These parts are made to order per your choice of the roof pitch.
Custom profiles and dimension changes can be quoted via email.
Disclaimer: due to limitations in bending, we can only manufacture this
profile up to a 14 pitch. However, due to it's flexibility given by the rounded top,
this can still be used on higher pitches. While installing, push down on the material
to get it to sit correctly,
or manually bend the round portion more prior to installation.
End caps are available for pitches 15, 16, 17 and 18.
Specifications
Material: 16 oz. and 20 oz. LCC
10' Lengths
Made to Order
Made in the USA
(A) Nominal / Stock size
Material
(B)
(C)
(D) Closed Hem
(E)
Stock
3"
Copper, Freedom Gray, Lead Coated Copper
5.125"
0.5"
0.25"
2"
18"
3"
Aluminum, Steel, Galvalume and Stainless Steel
4.125
0.5"
0.25"
2"
16"
Roof Ridge Angle
Roof Pitch
Roof Slope
Ridge Angle
1"
4.76°
9.52°
2"
9.46°
18.92°
3"
14.04°
28.08°
4"
18.43°
36.86°
5"
22.62°
45.24°
6"
26.57°
53.14°
7"
30.26°
60.52°
8"
33.69°
67.38°
9"
36.87°
73.74°
10"
39.81°
79.62°
11"
42.51°
85.02°
12"
45°
90°
13"
47.29°
94.58°
14"
49.4°
98.8°
15"
51.34°
102.68°
16"
53.13°
106.26°
17"
54.78°
109.56°
18"
56.31°
112.62°
All dimensions are approximate with ~1/8" tolerance.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
Flashing metal used on tile, slate and metal roofs. Available in 16 oz. and 20 oz. Lead Coated Copper.
A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.
A Ridge Roll is a type of ridge cap with a rounded portion at its very top.
We offer one with a 3" diameter circle. These parts are made to order per your choice of the roof pitch.
Custom profiles and dimension changes can be quoted via email.
Disclaimer: due to limitations in bending, we can only manufacture this
profile up to a 14 pitch. However, due to it's flexibility given by the rounded top,
this can still be used on higher pitches. While installing, push down on the material
to get it to sit correctly,
or manually bend the round portion more prior to installation.
End caps are available for pitches 15, 16, 17 and 18.
Specifications
Material: 16 oz. and 20 oz. LCC
10' Lengths
Made to Order
Made in the USA
(A) Nominal / Stock size
Material
(B)
(C)
(D) Closed Hem
(E)
Stock
3"
Copper, Freedom Gray, Lead Coated Copper
5.125"
0.5"
0.25"
2"
18"
3"
Aluminum, Steel, Galvalume and Stainless Steel
4.125
0.5"
0.25"
2"
16"
Roof Ridge Angle
Roof Pitch
Roof Slope
Ridge Angle
1"
4.76°
9.52°
2"
9.46°
18.92°
3"
14.04°
28.08°
4"
18.43°
36.86°
5"
22.62°
45.24°
6"
26.57°
53.14°
7"
30.26°
60.52°
8"
33.69°
67.38°
9"
36.87°
73.74°
10"
39.81°
79.62°
11"
42.51°
85.02°
12"
45°
90°
13"
47.29°
94.58°
14"
49.4°
98.8°
15"
51.34°
102.68°
16"
53.13°
106.26°
17"
54.78°
109.56°
18"
56.31°
112.62°
All dimensions are approximate with ~1/8" tolerance.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.

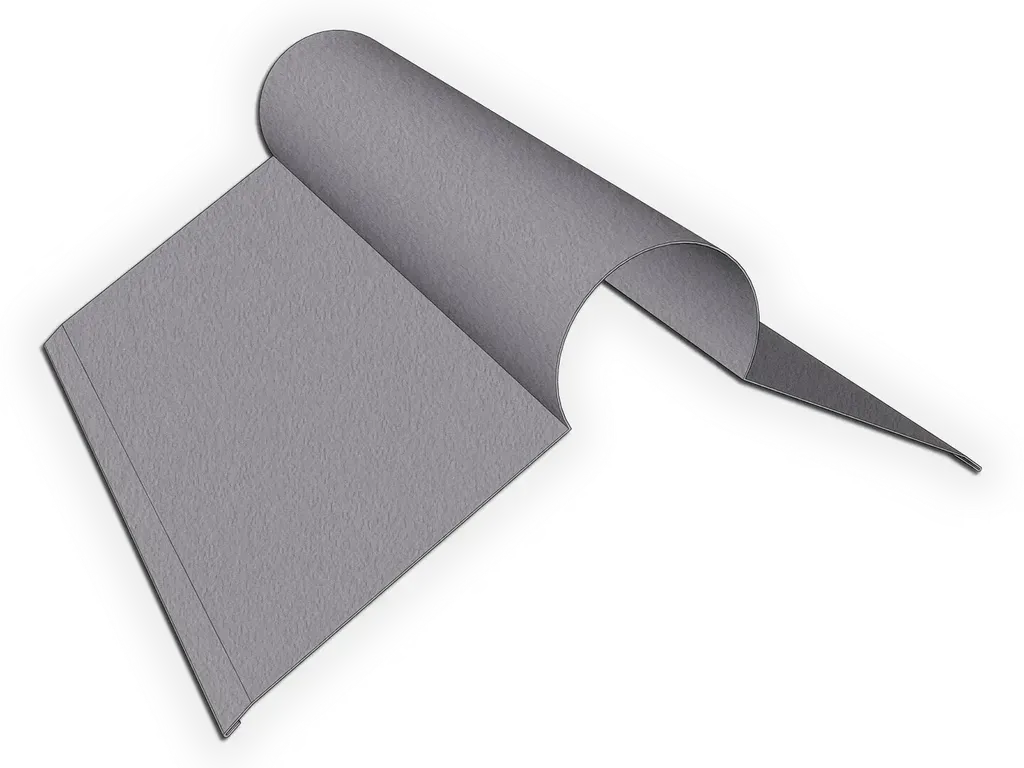

![[FRR18-1301] Lead Coated Copper Ridge Roll Roof Flashing
