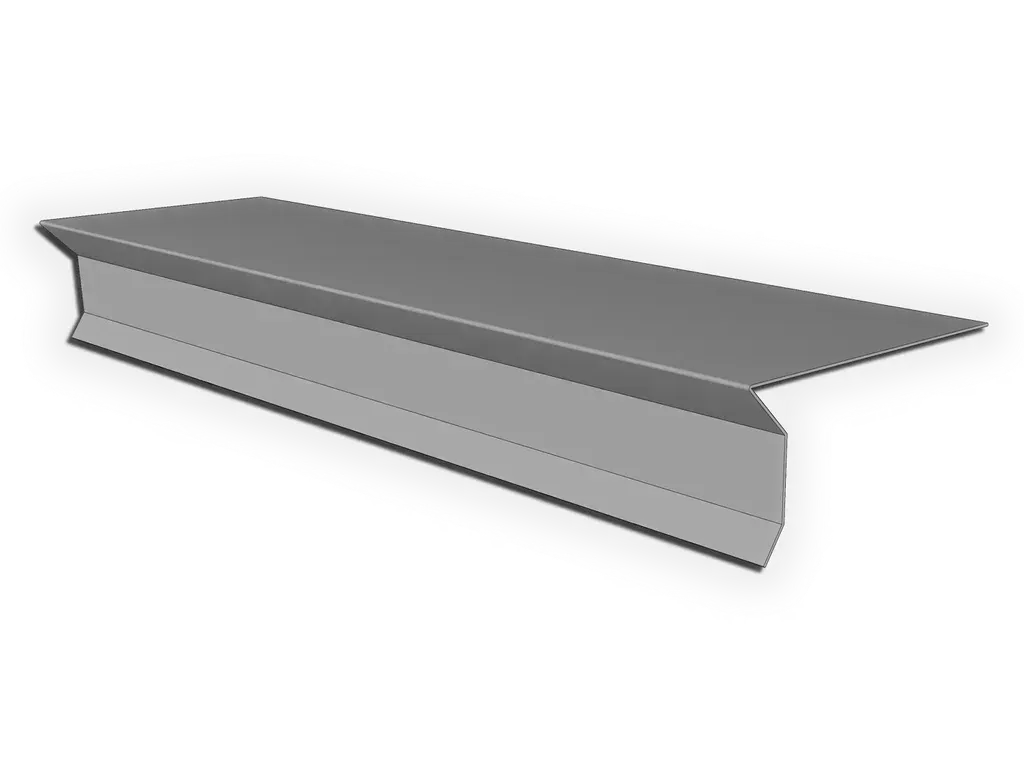

D-Style Shingle Roof Drip Edge Flashing Metal with Kick- 10' Length
Available 24 Gauge Galvalume Plus.
This simple drip edge profile known as "D-Style" most commonly used on shingle roofs, but can be used for tile or slate roofs as well.
This style of drip edge is a preferred choice for most shingle roofers for the ease to work with and because the overhang helps with directing water away
from the vertical portion of the drip edge, minimizing the risk of the water going back against the fascia.
The name drip edge comes from the kick portion of this profile, at the very bottom, responsible for kicking the water away from the fascia board.
That portion is essentially a drip edge.
For modified profiles, send us an email with a sketch for a quote.
Specifications
- Material: 24 Gauge Galvalume Plus
- 10' Lengths
- Made to Order
- Made in the USA
| (H) Nominal Size | Material | (A) Kick | (B) Face | (C) Overhang | (D) Roof / Deck | Stock (Total Material) |
|---|---|---|---|---|---|---|
| 1.5" | 0.027" Aluminum | 0.375" | 0.75" | 0.625" | 3.25" | 5" |
| 1.5" | 0.027" Aluminum | 0.375" | 1.75" | 0.75" | 3.125" | 6" |
| 1.5" | Copper, Freedom Gray, Lead Coated Copper | 0.375" | 0.75" | 0.625" | 3.392" | 5.142" |
| 2.5" | Copper, Freedom Gray, Lead Coated Copper | 0.375" | 1.75" | 0.75" | 3.125" | 6" |
| 2.5" | Aluminum, Steel, Galvalume and Stainless Steel | 0.375" | 0.75" | 0.625" | 3.583" | 5.333" |
| 2.5" | Aluminum, Steel, Galvalume and Stainless Steel | 0.375" | 1.75" | 0.75" | 3.125" | 6" |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
