Ridge Cap with Rounded Top - 10' Length
Flashing metal used on tile, slate and metal roofs. Available in 24 Gauge Galvalume Plus.
A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.

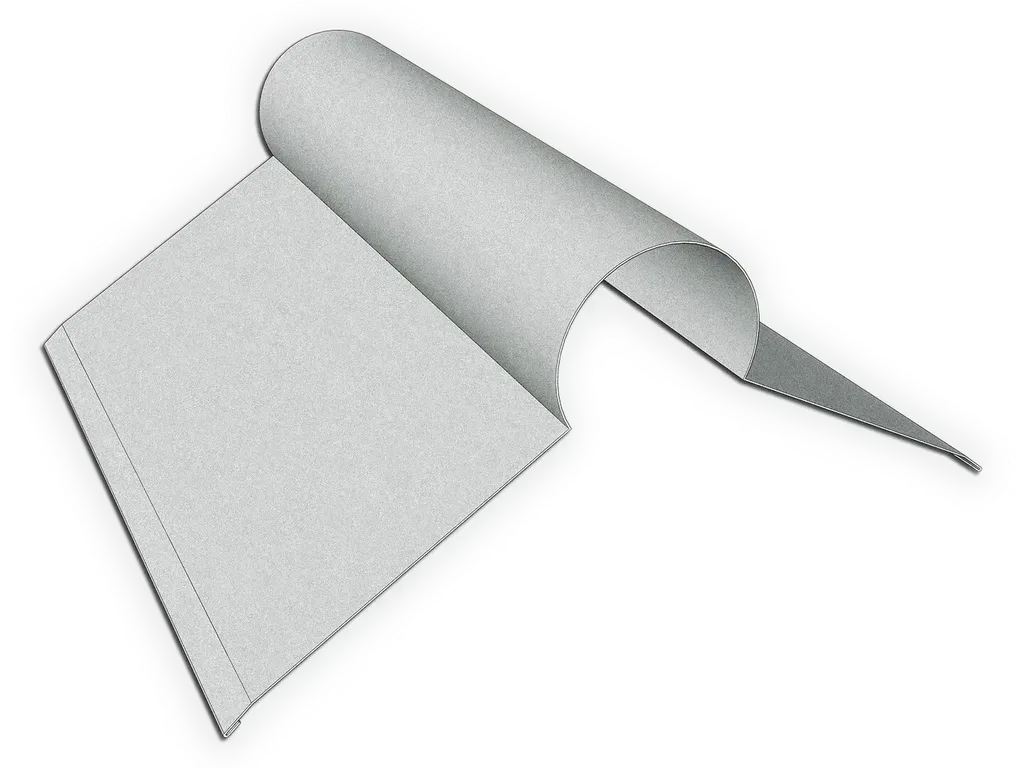

A Ridge Roll is a type of ridge cap with a rounded portion at its very top.
We offer one with a 3" diameter circle. These parts are made to order per your choice of the roof pitch.
Custom profiles and dimension changes can be quoted via email.
Disclaimer: due to limitations in bending, we can only manufacture this
profile up to a 14 pitch. However, due to it's flexibility given by the rounded top,
this can still be used on higher pitches.
While installing, push down on the material
to get it to sit correctly,
or manually bend the round portion more prior to installation.
End caps are available for pitches 15, 16, 17 and 18.
Steel and Galvalume are less flexible and a little harder to work with.
Specifications
- Material: 24 Gauge Galvalume Plus
- 10' Lengths
- Made to Order
- Made in the USA
| (A) Nominal / Stock size | Material | (B) | (C) | (D) Closed Hem | (E) | Stock |
|---|---|---|---|---|---|---|
| 3" | Copper, Freedom Gray, Lead Coated Copper | 5.125" | 0.5" | 0.25" | 2" | 18" |
| 3" | Aluminum, Steel, Galvalume and Stainless Steel | 4.125 | 0.5" | 0.25" | 2" | 16" |
Roof Ridge Angle
| Roof Pitch | Roof Slope | Ridge Angle |
|---|---|---|
| 1" | 4.76° | 9.52° |
| 2" | 9.46° | 18.92° |
| 3" | 14.04° | 28.08° |
| 4" | 18.43° | 36.86° |
| 5" | 22.62° | 45.24° |
| 6" | 26.57° | 53.14° |
| 7" | 30.26° | 60.52° |
| 8" | 33.69° | 67.38° |
| 9" | 36.87° | 73.74° |
| 10" | 39.81° | 79.62° |
| 11" | 42.51° | 85.02° |
| 12" | 45° | 90° |
| 13" | 47.29° | 94.58° |
| 14" | 49.4° | 98.8° |
| 15" | 51.34° | 102.68° |
| 16" | 53.13° | 106.26° |
| 17" | 54.78° | 109.56° |
| 18" | 56.31° | 112.62° |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
