End Cap for Vented Ridge Cap Roof Flashing Metal
Available in 16 oz. and 20 oz. Lead Coated Copper.

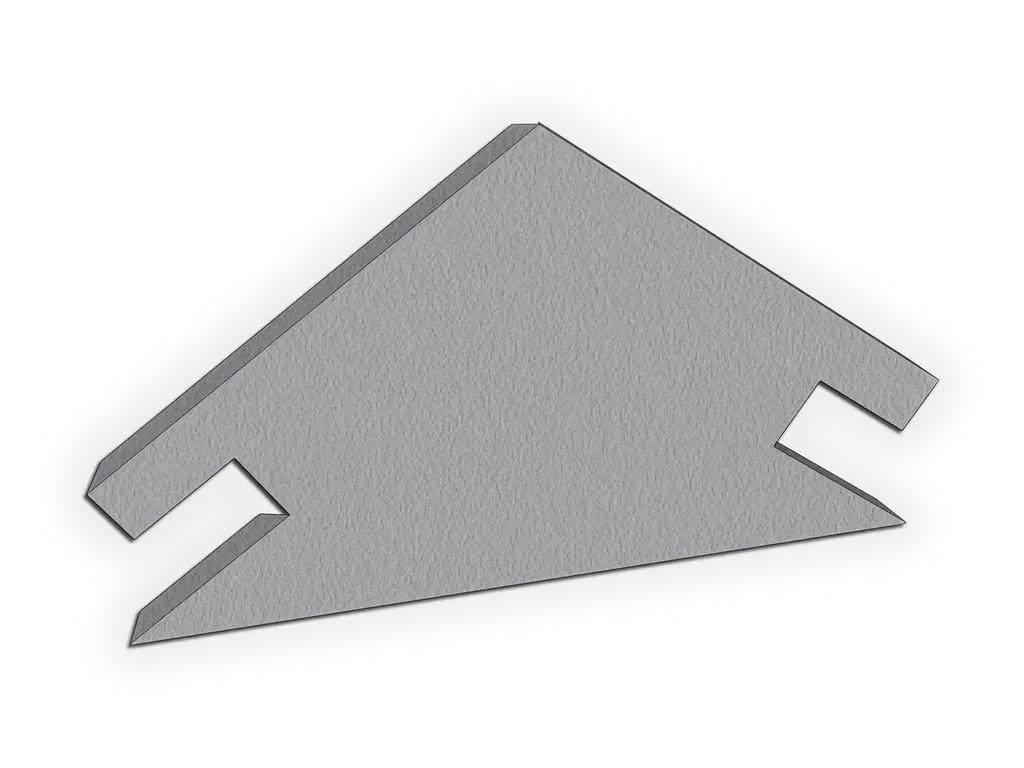

Flat end cap for K&M's our vented ridge cap. Features tabs for
securing to our ridge cap via rivets, zip screws or soldering.
Custom profiles and dimension changes may be available for purchase and can be quoted via email.
Specifications
- Material: 16 oz. and 20 oz. LCC
- Made to Order
- Made in the USA
| Stock Size | (A) | (B) | (C) Vented Portion | (D) | (E) | (F) Closed Hem |
|---|---|---|---|---|---|---|
| Small | 6.25" | 0.813" | 1.437" | 0.875" | 2.25" | 0.375" |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
