End Cap for Ridge Roll
Available in 16 oz. and 20 oz. Lead Coated Copper.

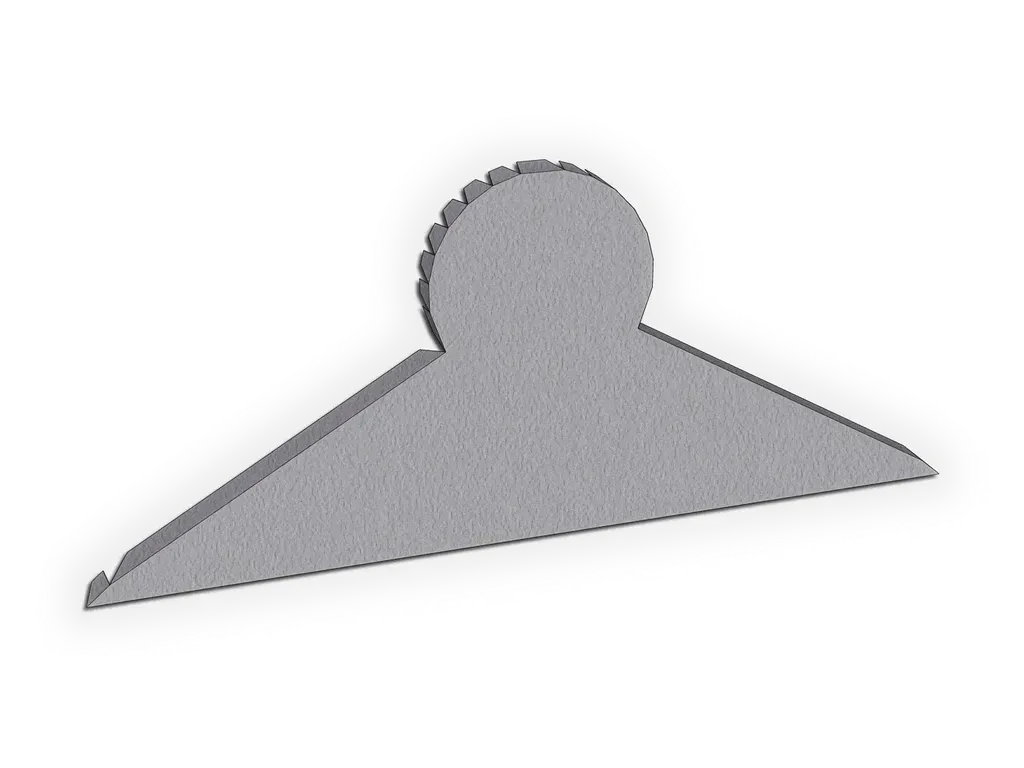

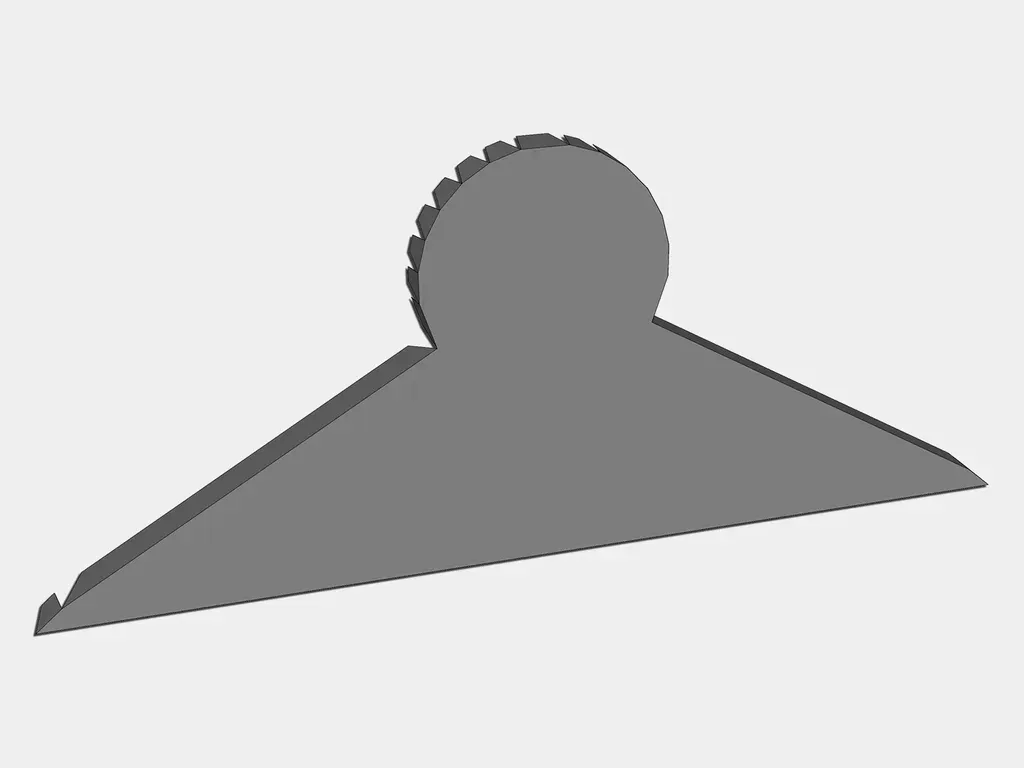

Flat end cap for K&M's Ridge Roll. Features tabs for
securing to our ridge cap via rivets, zip screws or soldering.
Custom profiles and dimension changes may be available for purchase and can be quoted via email.
Specifications
Material: 16 oz. and 20 oz. LCC
Made to Order
Made in the USA

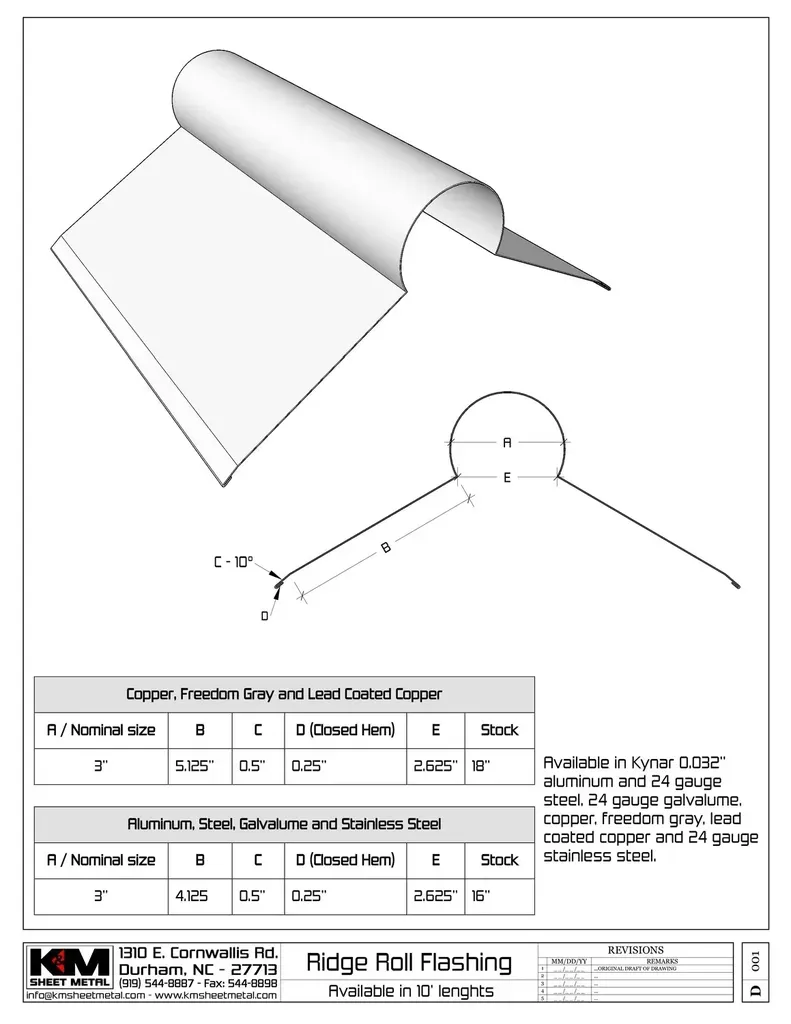

Ridge Cap Dimensions
(A) Nominal / Stock size
Material
(B)
(C)
(D) Closed Hem
(E)
Stock
3"
Copper, Freedom Gray, Lead Coated Copper
5.125"
0.5"
0.25"
2"
18"
3"
Aluminum, Steel, Galvalume and Stainless Steel
4.125
0.5"
0.25"
2"
16"
All dimensions are approximate with ~1/8" tolerance.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
Available in 16 oz. and 20 oz. Lead Coated Copper.
Flat end cap for K&M's Ridge Roll. Features tabs for
securing to our ridge cap via rivets, zip screws or soldering.
Custom profiles and dimension changes may be available for purchase and can be quoted via email.
Specifications
Material: 16 oz. and 20 oz. LCC
Made to Order
Made in the USA
Ridge Cap Dimensions
(A) Nominal / Stock size
Material
(B)
(C)
(D) Closed Hem
(E)
Stock
3"
Copper, Freedom Gray, Lead Coated Copper
5.125"
0.5"
0.25"
2"
18"
3"
Aluminum, Steel, Galvalume and Stainless Steel
4.125
0.5"
0.25"
2"
16"
All dimensions are approximate with ~1/8" tolerance.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
