Custom Stainless Steel Masonry Drip Edge with Back

Product SKU :

$ 25.95 25.95 USD $ 25.95

$ 25.95

/ ea
  • Product custom made to order
  • Material
  • Size
  • Dimensions A, B, C & D

This combination does not exist.

ADD TO CART

Terms and Conditions
30-day money-back guarantee
Lead Time: 10.0 Days

Custom Masonry Flashing Metal with Drip Edge and High Back - 10' Length

Available in Stainless Steel, Galvanized Steel and other materials as special order.

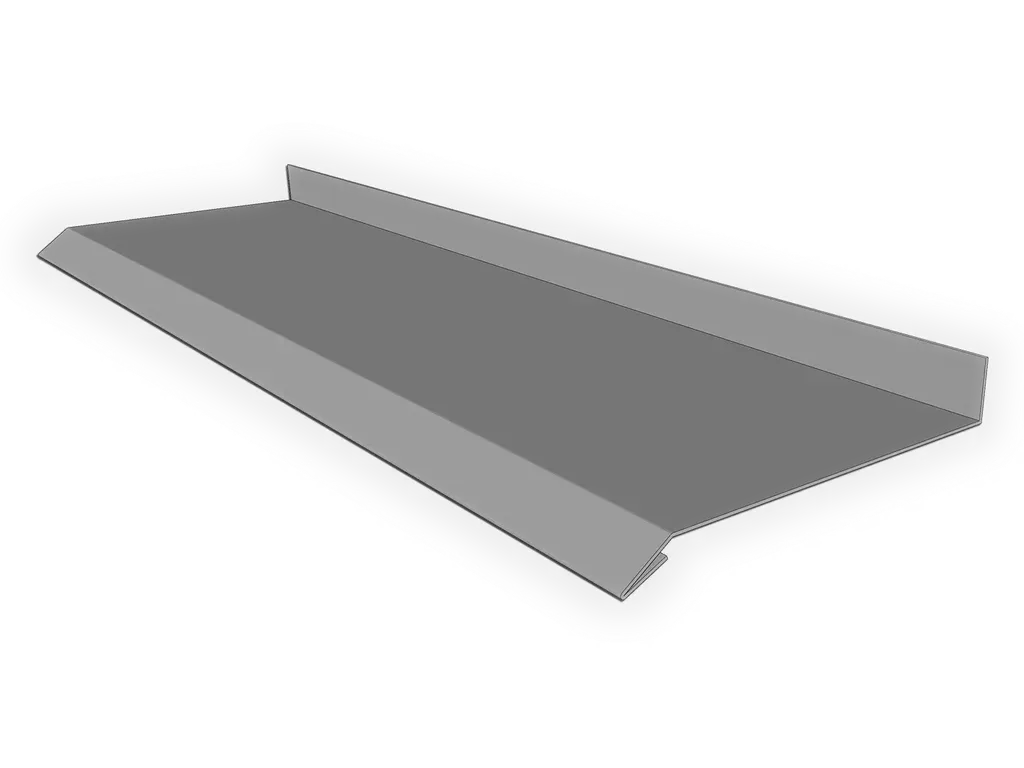

This simple drip edge profile is used to divert water away from the surface of the wall of a building, featuring a vertical back portion. It features a 0.5" kick with a 0.375" closed hem but can be customized to different sizes.
The most commonly used material for this style masonry drip edge is 26 gauge 304 2B finish, but 316 alloy as well as 24 gauge or even thicker may be purchased as a special order.
This profile flashing is commonly used for EIFS and stucco applications. It can also be used as window and door pan flashing, or sometimes, be modified to be used as such. For modified profiles, send us an email with a sketch for a quote.

Specifications

  • Material: 26 Gauge 304 Stainless Steel 2B Finish
  • 10' Lengths
  • Made to Order
  • Made in the USA
Profile (A) Kick (B) Drip (C) (D) Back Stock (Total Material)
Custom Masonry Drip Edge Minimum 0.375" Minimum 0.5" Custom Custom 4", 6", 8", 9.6", 12", 16", 24" and 36"

All dimensions are approximate with ~1/8" tolerance.

Ordering Instructions
  • 1 - Pick your material. For other materials email us a sketch.
  • 2 - Material Stretch-out: Pick the appropriate selection for the amount of stock material needed.
    Example: If adding all dimensions of your custom profile (A+B+C+D) equals 11.5", you'll pick the next size up, for example, 12" stock. Provide dimensions for A, B, C and D on field 3.
  • 3 - This is where you'll enter dimensions for fields A, B, C and D. You may also upload a sketch and leave this field blank. A and B are standard at 0.375" and 0.5".
  • 4 - If you prefer to email a sketch you can use this field, otherwise, leave blank. Either field 3 or 4 will be required.
  • 5 - If D is bent at an angle different than 90° a sketch will be required for manufacturing.
Submittals & Downloads

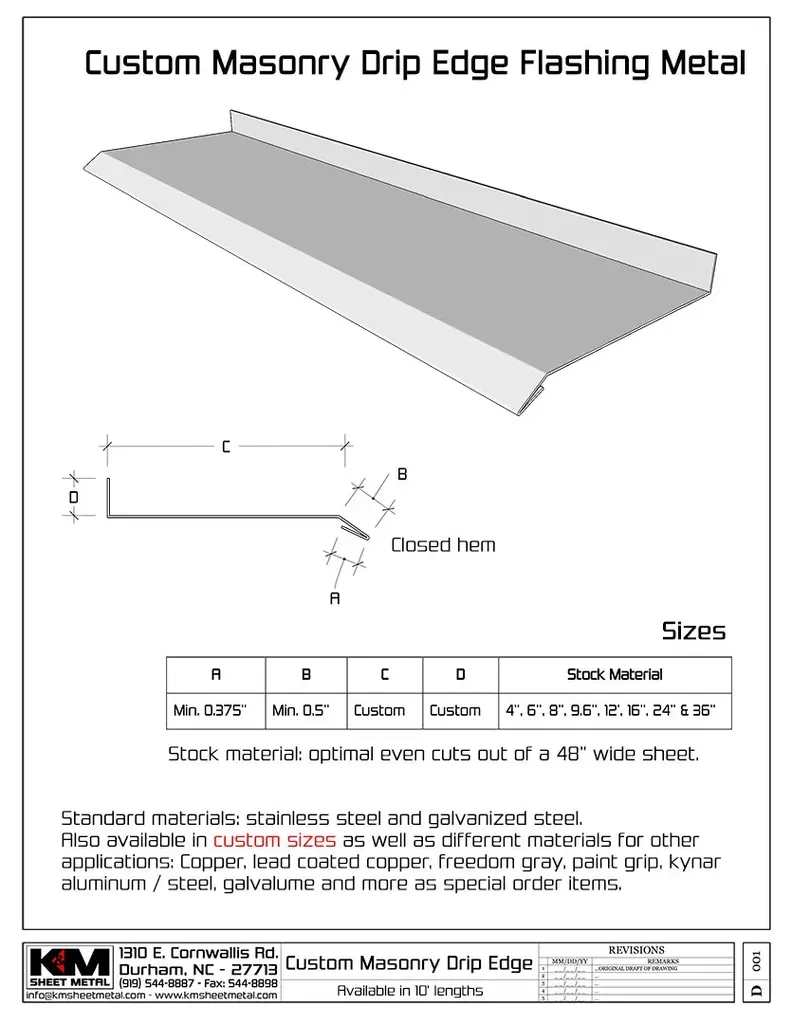

PDF - Masonry drip edge flashing metal with vertical back bend

Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Stainless Steel

Stainless Steel

Copper

Copper

Freedom gray

Freedom Gray®

Galvalume Plus

Galvalume Plus

Lead coated copper

Lead Coated Copper

Zinc

Zinc

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
