Universal Aluminum Roof Mount for Gutter Hanger
Available in Mill Finish or several Powder Coated Colors. For Hangers used with Half-Round Copper Gutters, K-Style and Box Gutters

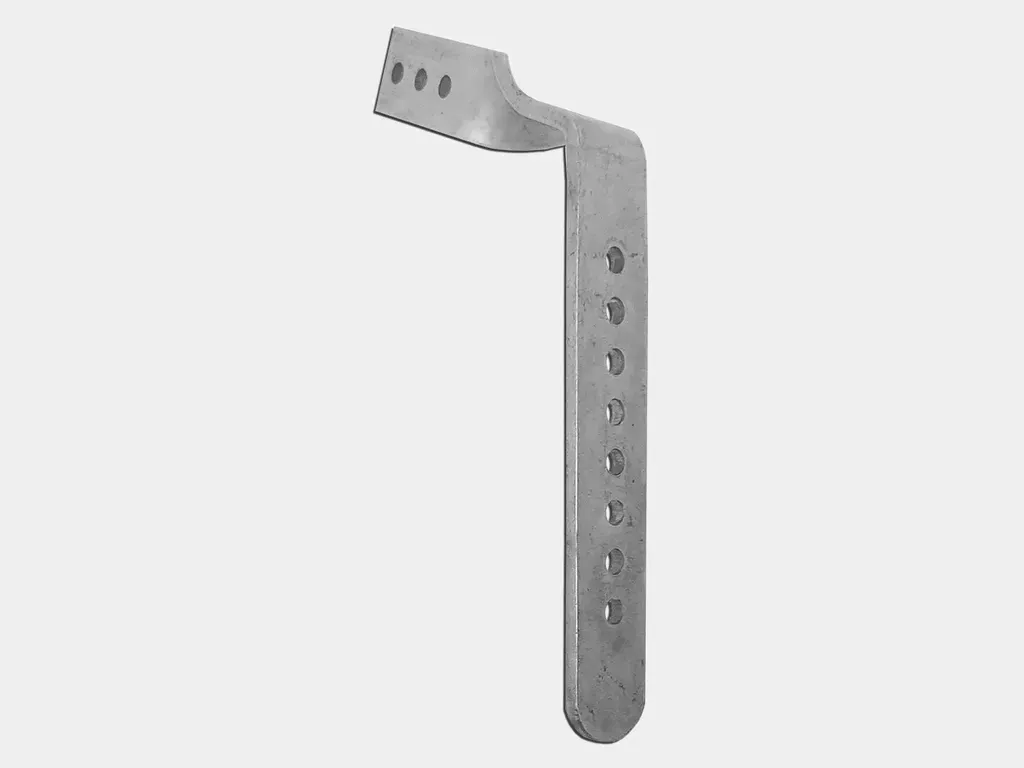

The Universal Rafter Mount is designed to be used with our
#15 half round gutter hanger on roofs with exposed rafters
for gutter installations.

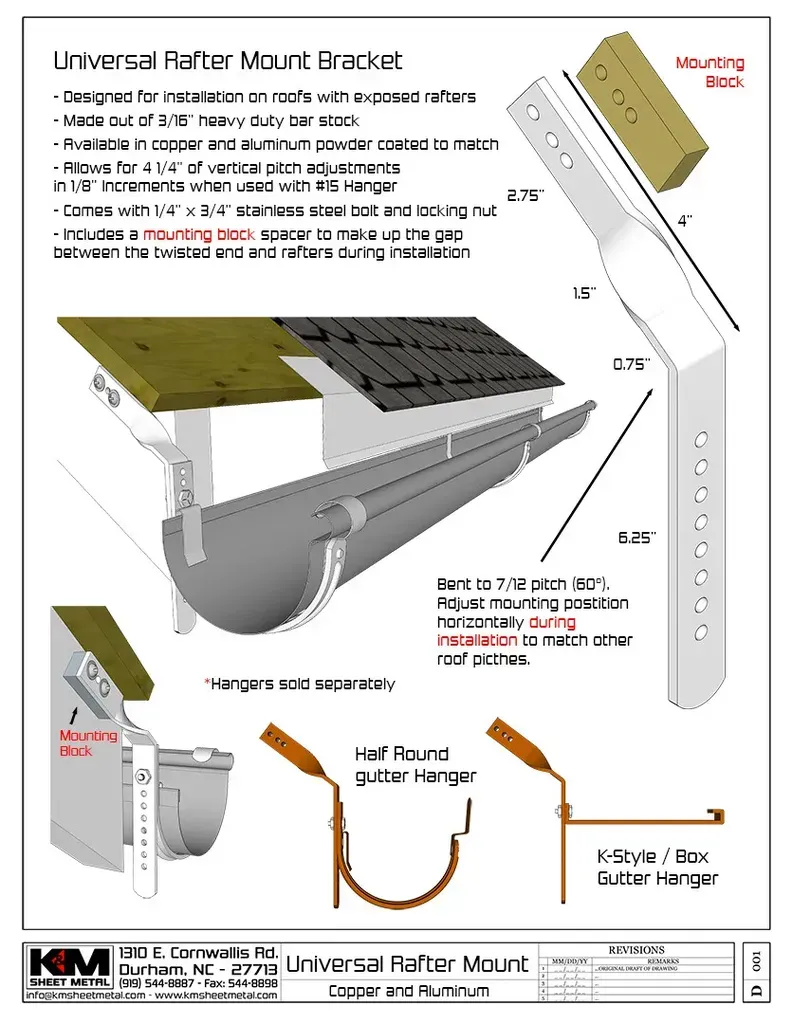

Our rafter mount is always bent to a pitch 7 (60°) but it can be used on any roof pitch: simply rotate the rafter mount to
adjust to your roof pitch for correct mounting.
It can also be used with other gutter profiles and gutter hangers as long as those can be attached to one of the 1/4" holes provided in our rafter mount via a bolt.
Just make sure it'll work for your application before ordering.
The rafter mount is formed from heavy duty 3/16" bar stock material.
Like our Universal Roof Mounts and Gutter Wedges, the Universal Rafter Mount allows for 4.25" of total vertical pitch adjustments in 1/8" increments.
It comes with a 1/4" Stainless Steel bolt and locking nut.

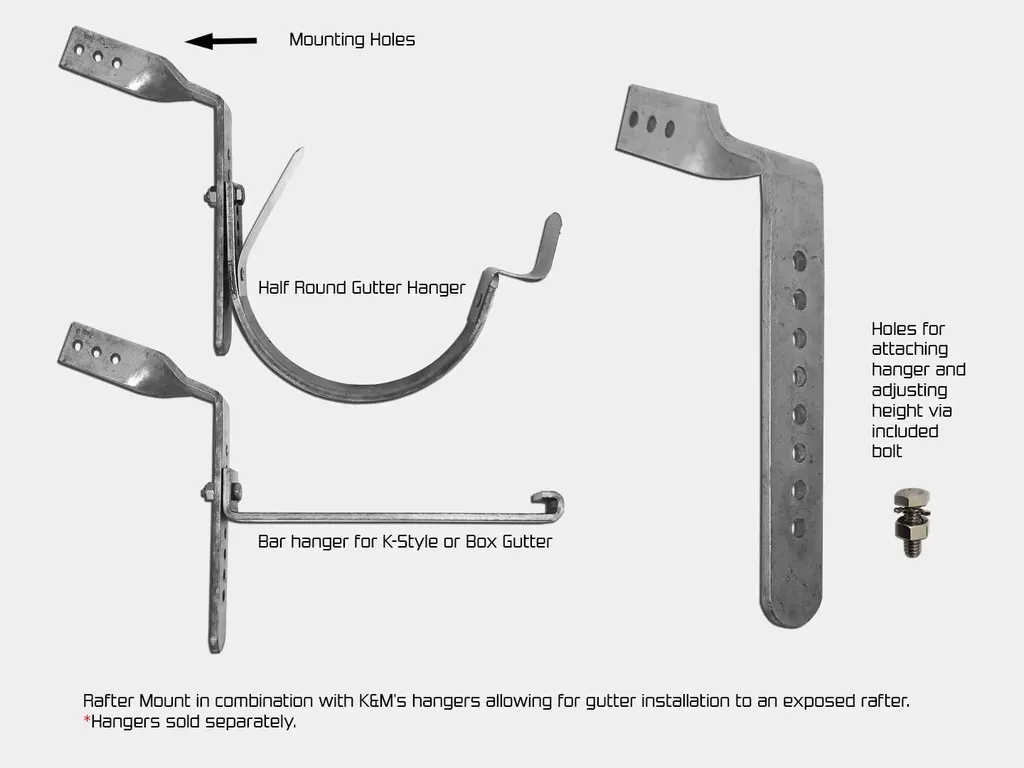

When a hidden hanger is used (as the crossbar hanger in the examples shown), a hole will need to be drilled in the back of the gutter
to attach the hanger to the rafter mount with the provided bolt.
Specifications
Powder Coating Disclosure
Our colored rafter mount bars are powder coated, which provides a very durable, long lasting finish. Because they are manufactured from thick bar stock,
there is significant paint stretching in post powder coating bending, which will lead to some paint cracking / chipping.
To avoid any issues, we recommend that the rafter mount bars not be bent after purchasing and for touch ups, that a can of
touch up spray paint be added to your order.
Submittals & Downloads
Color and Material Options
0.027" Aluminum Material Colors to Match
Black
Dark Bronze
Musket Brown
Royal Brown
Almond
Linen
Low Gloss White (30°)
High Gloss White (80°)
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Material Powder Coated Color Options to Match
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Material Powder Coated Color Options to Match
Black Aluminum Steel
Charcoal Grey Aluminum Steel
Classic Bronze (Dark Bronze) Aluminum Steel
Medium Bronze Aluminum Steel
Coppertone (Faux Copper) Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Common Material Options for Gutter Hangers
Mill Finish Aluminum
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
