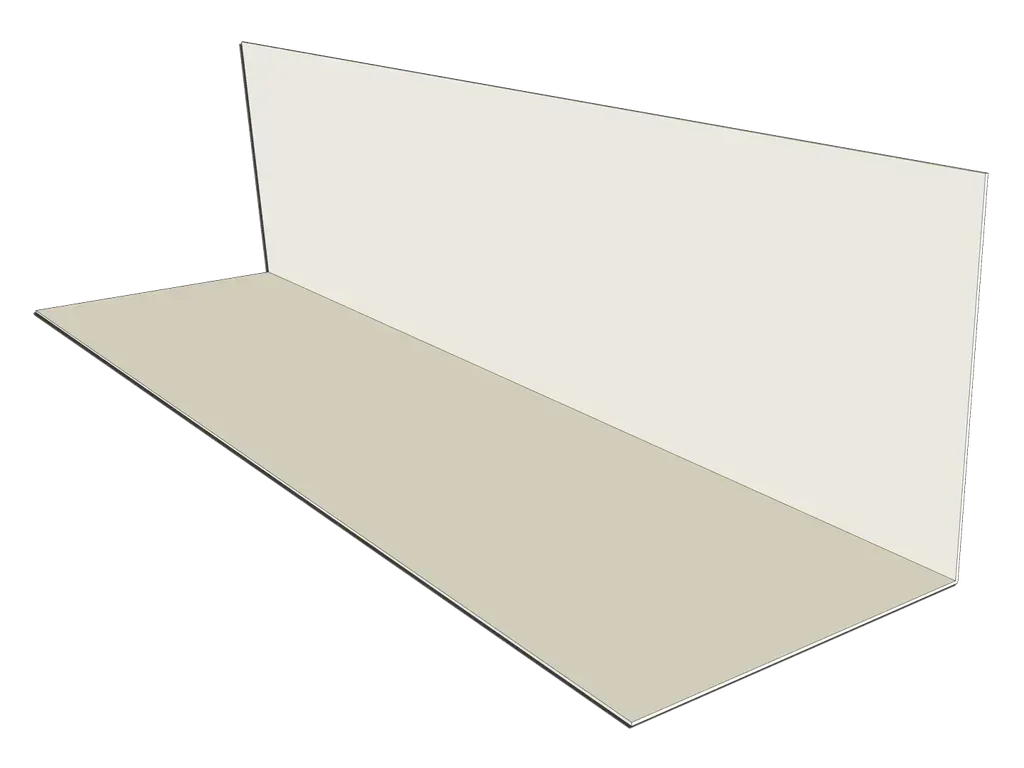

This simple flashing profile, also simply known as "angle" or "L-shape" is commonly used on any type roofing.
Typically, L flashings are used in sidewall adjacent to roofs or end wall applications to prevent water infiltration, but are also used on random
flashings, chimney flashings, sometimes even cut up to be used as step flashings. Color on the inside for colored profiles.
Custom dimensioned profiles can be ordered through this page. Other profiles are available on our webstore. For quotes on more intricate flashings,
please send us an email.
Specifications
Material: 0.032" Kynar® Aluminum
10' Lengths
Made to Order
Made in the USA

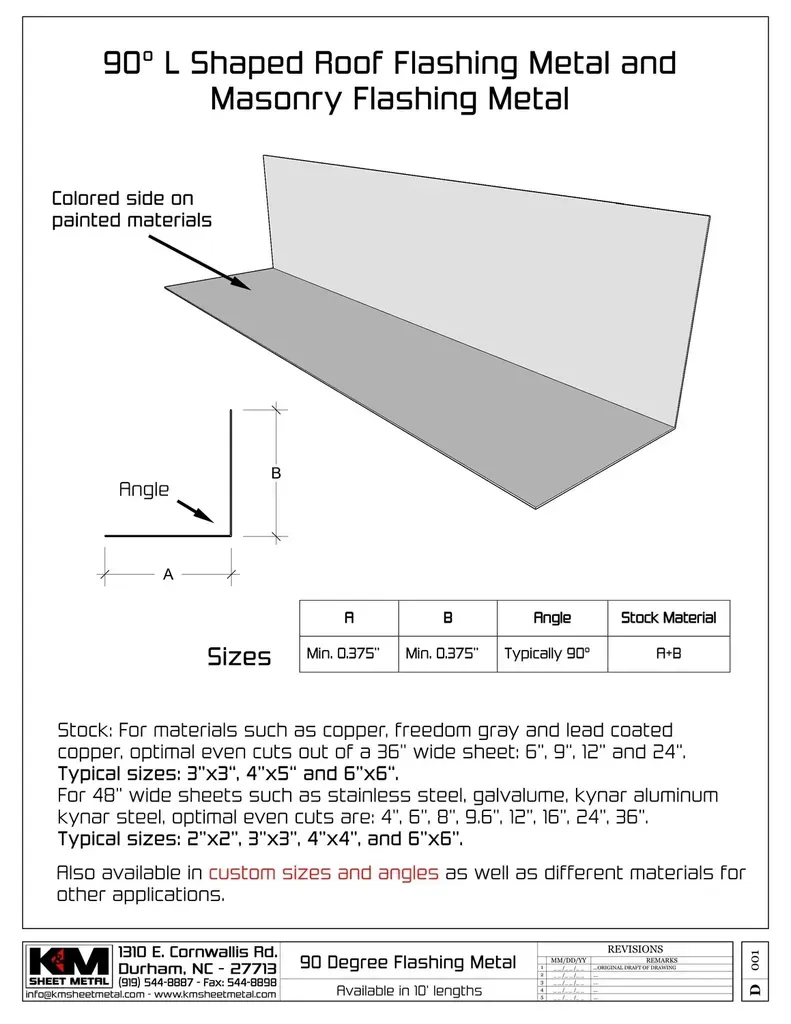

Nominal Size
Material
(A)
(B)
Angle
Stock (Total Material)
3x3
Copper, Freedom Gray, Lead Coated Copper
3"
3"
45°/90°
6"
4x5
Copper, Freedom Gray, Lead Coated Copper
4"
5"
45°/90°
9"
6x6
Copper, Freedom Gray, Lead Coated Copper
6"
6"
45°/90°
12"
2x2
Aluminum, Steel, Galvalume and Stainless Steel
2"
2"
45°/90°
4"
3x3
Aluminum, Steel, Galvalume and Stainless Steel
3"
3"
45°/90°
6"
4x4
Aluminum, Steel, Galvalume and Stainless Steel
4"
4"
45°/90°
8"
6x6
Aluminum, Steel, Galvalume and Stainless Steel
6"
6"
45°/90°
12"
All dimensions are approximate with ~1/8" tolerance.
Ordering Instructions
1 - Pick your material/color. For other materials navigate back to
Edge Metal.
2 - Pick your profile dimensions. These are provided in the chart above. If a custom dimensioned profile is desired,
pick the appropriate stock size: If adding all dimensions of your custom profile (A+B) equals
6.5", you'll pick the next dimension up, in this case 9" or 8" depending on the material.
3 - Pick your angle. 90° standard.
4 - This is where you'll enter dimensions for fields
A and B if custom dimensioned profile is desired, as well as the custom inside angle, otherwise leave blank.
5 - If you prefer to email a sketch you can use this field, otherwise, leave blank.
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
The most popular roof flashing metal colors in Galvalume Steel and Aluminum Kynar® are Bone White and Classic Bronze (Dark Bronze) Click here for a full list of Kynar® metal colors
Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum Steel
Charcoal Grey Aluminum Steel
Classic Bronze (Dark Bronze) Aluminum Steel
Medium Bronze Aluminum Steel
Coppertone (Faux Copper) Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
The most popular roof flashing metal colors in Galvalume Steel and Aluminum Kynar® are Bone White and Classic Bronze (Dark Bronze) Click here for a full list of Kynar® metal colors
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
Product custom made to order:
I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.
