24 Gauge Kynar Steel Ridge Cap Roof Flashing

Product SKU :

39.95 39.95 USD 39.95

39.95

/ ea
  • Product custom made to order
  • Size
  • Color
  • Roof Pitch / Inside Angle
  • Hems

This combination does not exist.

ADD TO CART

Select Variant Min. Quantity Price per Unit

Terms and Conditions
30-day money-back guarantee
Lead Time: 14.0 Days

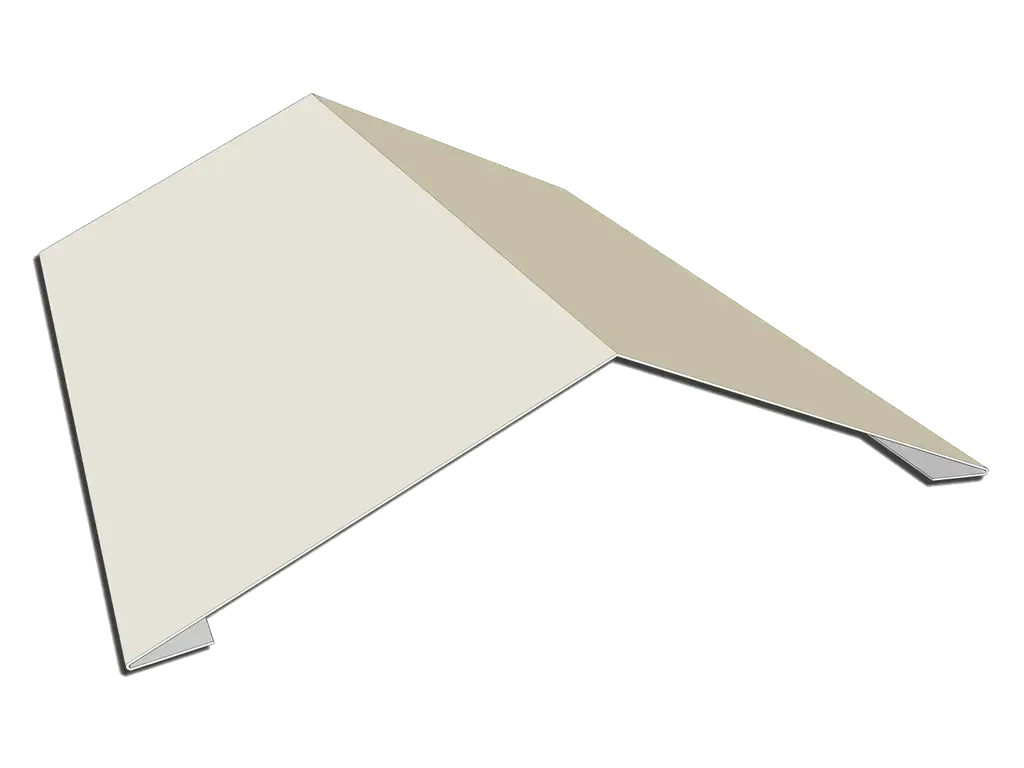

Ridge Cap Roof Flashing Metal - 10' Length

Flashing metal used on tile, slate, wood, shingle and metal roofs. Available in several colors. 24 Gauge Kynar® Steel.

A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.
This simple profile can be used with mostly any roof system, but its design comes from its usage on metal roof systems, where it hooks onto J channels on both sides of the ridge.
Custom profiles and dimension changes can be quoted via email.

Specifications

  • Material: 24 Gauge Kynar® Steel
  • 10' Lengths
  • Made to Order
  • Made in the USA
Size Material (A) (B) (C) (D) Stock
Small Copper, Freedom Gray, Lead Coated Copper 5.25" 5.25" 0.75" 0.75" 12"
Large Copper, Freedom Gray, Lead Coated Copper 8.25" 8.25" 0.75" 0.75" 18"
Small Aluminum, Steel, Galvalume and Stainless Steel 5.25" 5.25" 0.75" 0.75" 12"
Large Aluminum, Steel, Galvalume and Stainless Steel 7.25" 7.25" 0.75" 0.75" 16"

Roof Ridge Angle

Roof Pitch Roof Slope Ridge Angle Finished Flashing Angle (Measured on the inside)
1" 4.76° 9.52° 170° (170.48°)
2" 9.46° 18.92° 161° (161.08°)
3" 14.04° 28.08° 152° (151.92°)
4" 18.43° 36.86° 143° (143.14°)
5" 22.62° 45.24° 135° (134.76°)
6" 26.57° 53.14° 127° (126.86°)
7" 30.26° 60.52° 119° (119.48°)
8" 33.69° 67.38° 113° (112.52°)
9" 36.87° 73.74° 106° (106.26°)
10" 39.81° 79.62° 100° (100.38°)
11" 42.51° 85.02° 95° (94.98°)
12" 45° 90° 90°
13" 47.29° 94.58° 85° (85.42°)
14" 49.4° 98.8° 81° (81.2°)
15" 51.34° 102.68° 77° (77.32°)
16" 53.13° 106.26° 74° (73.74)
17" 54.78° 109.56° 70° (70.44°)
18" 56.31° 112.62° 67° (67.38°)

All dimensions are approximate with ~1/8" tolerance.

Submittals & Downloads
Color and Material Options
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black kynar aluminum

Black Aluminum

Matte black kynar steel

Matte Black Steel

Black kynar aluminum and galvanized steel

Charcoal Aluminum Steel

Dark bronze aluminum and galvanized steel

Dark Bronze Aluminum Steel

Medium bronze aluminum and galvanized steel

Medium Bronze Aluminum Steel

Copper penny aluminum and galvanized steel

Copper Penny Aluminum Steel

Almond aluminum and galvanized steel

Almond Aluminum Steel

Bone white aluminum and galvanized steel

Bone White Aluminum Steel

Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Kynar Black aluminum and steel

Black Aluminum Steel

Kynar Charcoal Grey aluminum and steel

Charcoal Grey Aluminum Steel

Kynar Classic Bronze aluminum and steel

Classic Bronze (Dark Bronze) Aluminum Steel

Kynar Medium Bronze aluminum and steel

Medium Bronze Aluminum Steel

Kynar Coppertone Bronze aluminum and steel

Coppertone (Faux Copper) Aluminum Steel

Kynar Matte Almond aluminum and steel

Almond Aluminum Steel

Kynar Bone White aluminum and steel

Bone White Aluminum Steel

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
