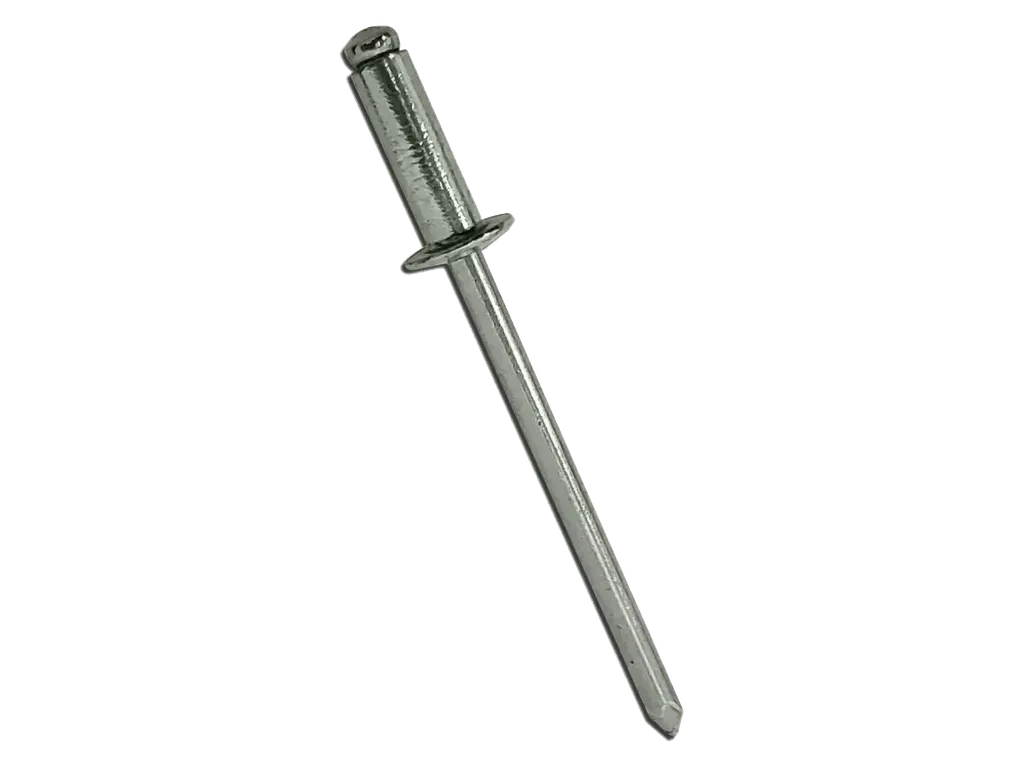

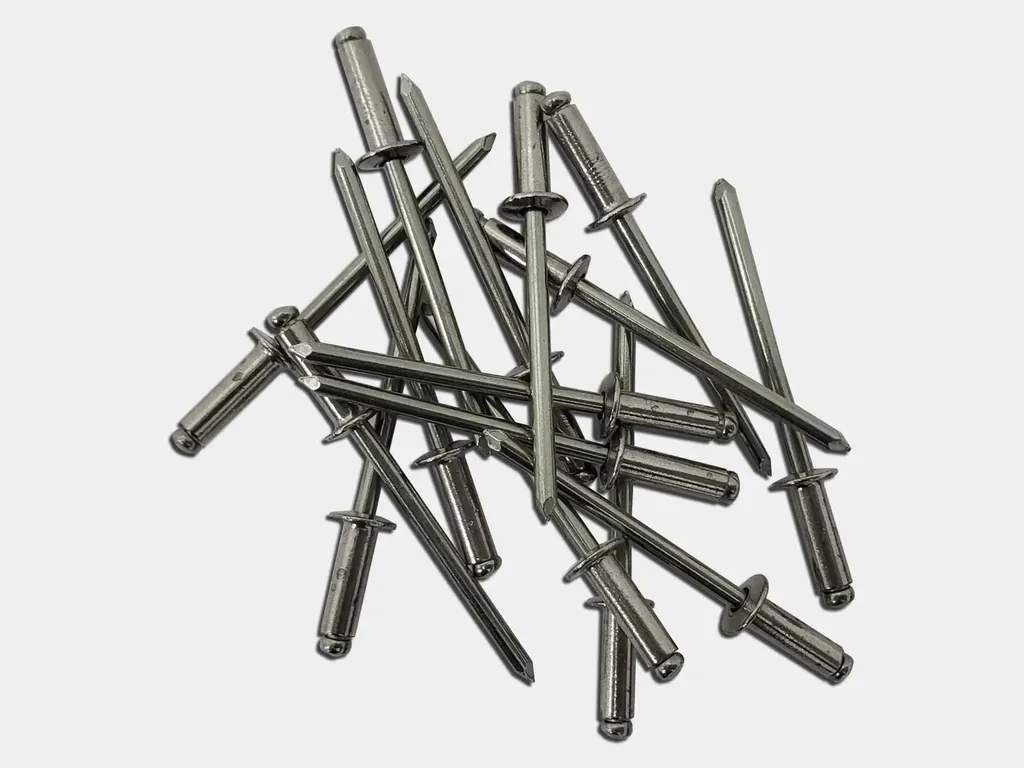

1/8" Stainless Steel Blind Pop Rivets - #42 / #44
Available in individual bags of 100 and boxes of 1000. Discounts for quantities.
Stainless steel pop rivets (blind rivets) are used to connect two pieces of material in a quick efficient way.
Often used when installing gutters, downspouts and their accessories. Sold in bags of 100 pcs or 1000 pcs. Please order in multiples of 100.
Ideal for outside applications.
Use an 1/8" or a #30 drill bit for rivet holes.
These blind rivets have a break away mandrel shaft that will require the use of a pop rivet tool.
Grip Range: The combined thickness of materials that can be joined together by a rivet
Specifications | #42 Size | #44 Size |
---|---|---|
Grip Range | 1/16" - 1/8" (0.0625" - 0.125") | 3/16" - 1/4" (0.188" - 0.25") |
Head Length | 1/4" (0.25") | 3/8" (0.375") |
Head Diameter | ~1/4" (0.26") | ~1/4" (0.26") |
Maximum Shear Strength | 420 pounds | 420 pounds |
Specification Met | IFI-114 Grade 50 | IFI-114 Grade 50 |
Item per pack | 100 pcs | 100 pcs |
Shaft Material (Mandrel) | Stainless Steel | Stainless Steel |
Drill Hole Size | #30 - 1/8" | #30 - 1/8" |
Rivet Style | Break Pull Mandrel | Break Pull Mandrel |
Tensile Strength | 530 pounds | 530 pounds |
Galvanic Reaction
Choosing the right type of fastener can be confusing as some metals don't work well together. They can "attack" other metals which will cause at best discoloration and at worst structural failure. And it is not just differing metals touching each other that can cause issues. Mere proximity must be considered. Rainwater runoff from a reactive metal to another can wreak havoc. It is therefore very important to keep galvanic reaction potential in mind when planning the design of your building.
Galvanic Reaction Table | Aluminum | Copper | Galvanized Steel | Lead | Stainless Steel | Zinc |
---|---|---|---|---|---|---|
Aluminum | OK | X | OK | OK | OK | OK |
Copper | X | OK | X | OK | OK | X |
Galvanized Steel | OK | X | OK | OK | OK | OK |
Lead | OK | OK | OK | OK | OK | OK |
Stainless Steel | OK | OK | OK | OK | OK | OK |
Zinc | OK | X | OK | OK | OK | OK |
