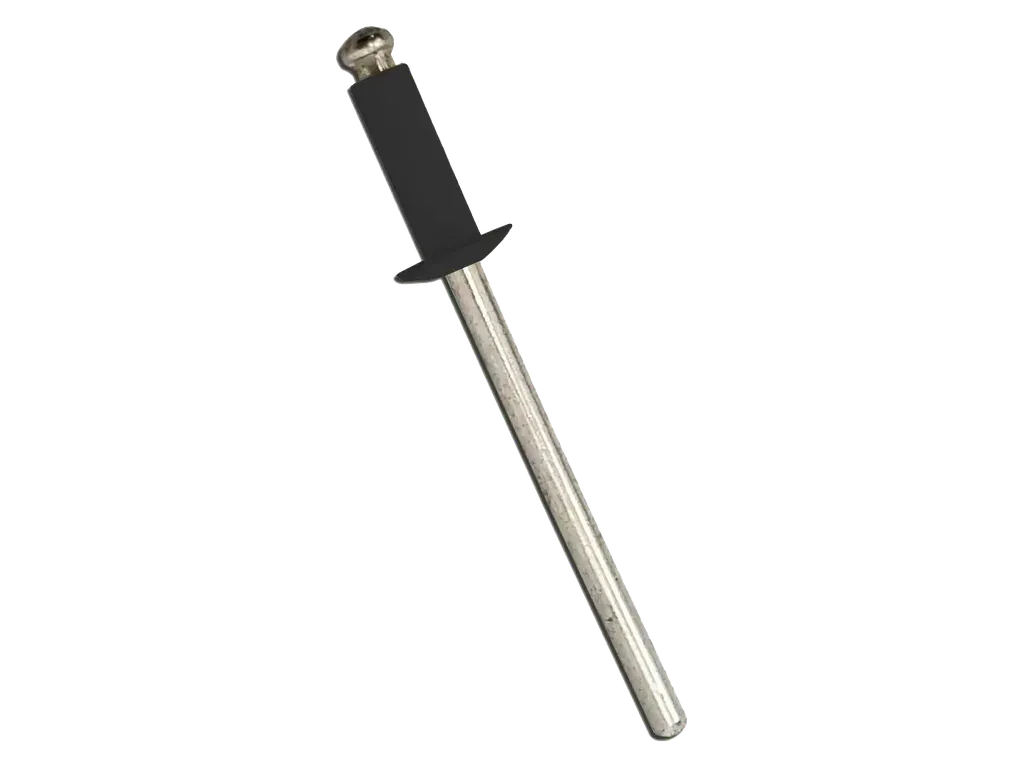

1/8" Aluminum Blind Pop Rivets - #42 / #44
Available in several colors
Aluminum pop rivets (blind rivets) are used to connect two pieces of material in a quick efficient way.
Often used when installing gutters, downspouts and their accessories.
Sold in bags of 100 pcs or 1000 pcs. Please order in multiples of 100.
Available in Plain aluminum (Mill Finish), Almond, Black (RAL 9017), Cobalt Blue (RAL 5013), Dark Bronze,
Linen, Moss Green (RAL 6005), Musket Brown, Royal Brown (RAL 8017), Ruby Red (RAL 3003) and Low Gloss White (RAL 9016).
Use an 1/8" or a #30 drill bit for rivet holes.
These blind rivets have a break away mandrel shaft that will require the use of a pop rivet tool.
Grip Range: The combined thickness of materials that can be joined together by a rivet
| Specifications | #42 Size | #44 Size |
|---|---|---|
| Grip Range | 1/16" - 1/8" (0.0625" - 0.125") | 3/16" - 1/4" (0.188" - 0.25") |
| Head Length | 1/4" (0.25") | 3/8" (0.375") |
| Head Diameter | ~1/4" (0.26") | ~1/4" (0.26") |
| Maximum Shear Strength | 120 pounds | 120 pounds |
| Specification Met | IFI-114 Grade 11 | IFI-114 Grade 11 |
| Item per pack | 100 pcs | 100 pcs |
| Shaft Material (Mandrel) | Aluminum | Aluminum |
| Drill Hole Size | #30 - 1/8" | #30 - 1/8" |
| Rivet Style | Break Pull Mandrel | Break Pull Mandrel |
| Tensile Strength | 150 pounds | 150 pounds |
Galvanic Reaction
Choosing the right type of fastener can be confusing as some metals don’t work well together. They can “attack” other metals which will cause at best discoloration and at worst structural failure. And it is not just differing metals touching each other that can cause issues. Mere proximity must be considered. Rainwater runoff from a reactive metal to another can wreak havoc. It is therefore very important to keep galvanic reaction potential in mind when planning the design of your building.
| Galvanic Reaction Table | Aluminum | Copper | Galvanized Steel | Lead | Stainless Steel | Zinc |
|---|---|---|---|---|---|---|
| Aluminum | OK | X | OK | OK | OK | OK |
| Copper | X | OK | X | OK | OK | X |
| Galvanized Steel | OK | X | OK | OK | OK | OK |
| Lead | OK | OK | OK | OK | OK | OK |
| Stainless Steel | OK | OK | OK | OK | OK | OK |
| Zinc | OK | X | OK | OK | OK | OK |
Color and Material Options
Rivet Material and Color Options
Mill Finish Aluminum
Black
Charcoal
Dark Bronze
Musket Brown
Royal Brown
Almond
Linen
White
Ruby Red
Forest Green Aluminum Steel
Cobalt Blue
Colors are for reference only. You may notice that unlike our metals (0.027" vs. Kynar material), we only offer one option of certain colors, like dark bronze, or almond for example. That is because we deem these different shades to be negligible when putting together our items, such as our conductor heads and chimney caps for example. That is our opinion. Please make an informed decision prior to ordering these.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
