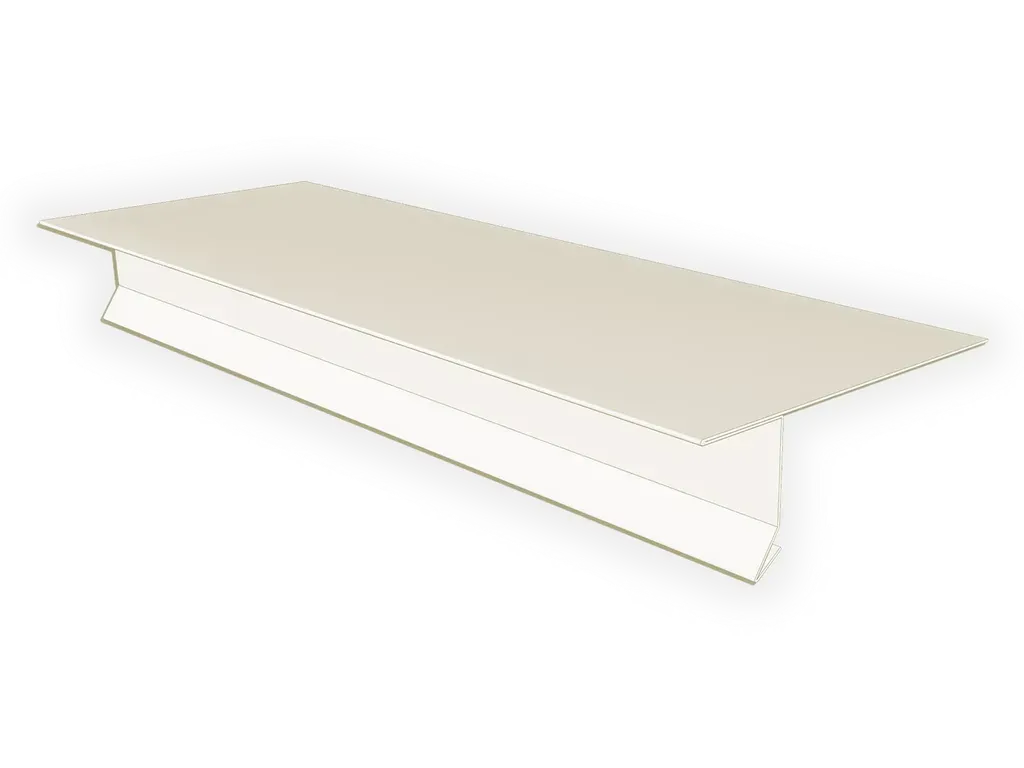

T Shape Roof Locking Drip Edge Flashing Metal - 10' Length
Edge metal used on rubber, tile, slate, shingle and metal roofs. Available in several colors. 0.027" Aluminum

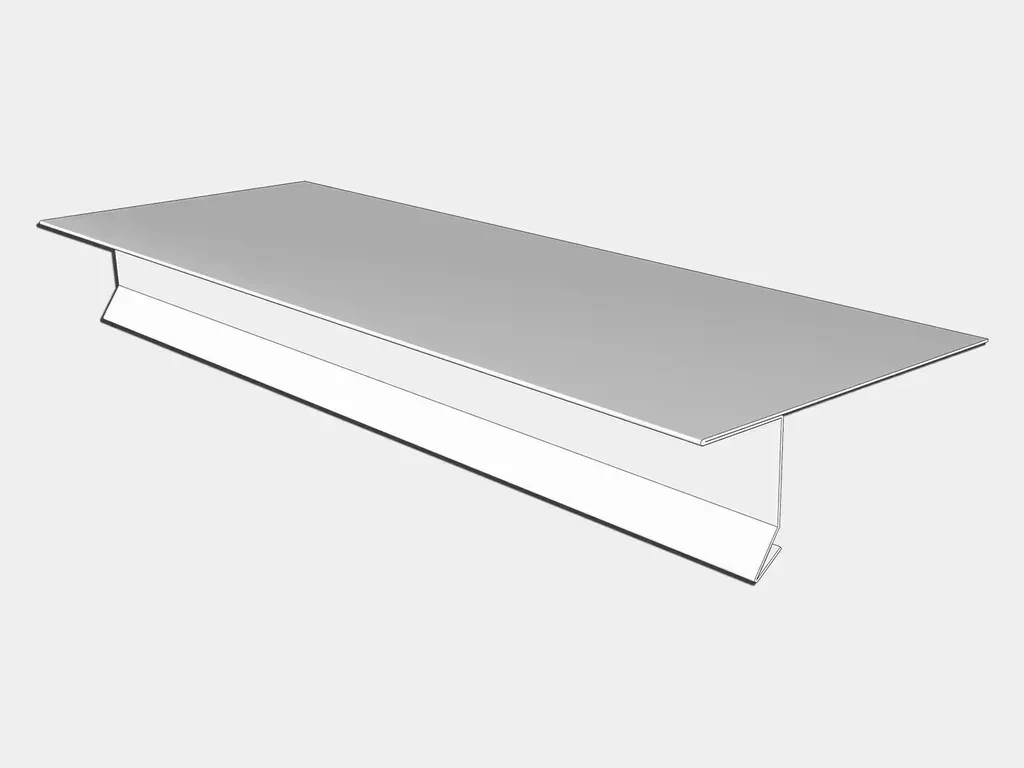

This simple drip edge profile, also known as "t-style" is used on any type roofing, but is
a requirement for metal roofs due to its overhang which is used
to secure metal roof panels.
This style of drip edge is a preferred choice for many roofers because the overhang helps with directing water away from the vertical portion of the drip edge, minimizing the risk
of the water going back against the fascia.
The name drip edge comes from the kick portion of this profile, at the very bottom, responsible for kicking the water away from the fascia board.
That portion is essentially a drip edge.
Another common name for this drip edge profile is "metal roofing drip edge".
This may be ordered as an angled drip edge or flat. A flat drip edge will
also work on an angled roof, except "B" will not sit up against the fascia,
it will be perpendicular to the roof. Although this may not be ideal, if
this is being placed on both a rake edge along with a gable it will make
both pieces line up as far as height goes. Otherwise, if the rake edge metal
is manufactured at an angle, it will need to have a taller "B" dimension to
line up with the gable drip edge.
You may order custom profiles through this page, browse our store for other profiles or send us an email
for a quote on something even more intricate.
Specifications
- Material: 0.027" Aluminum
- 10' Lengths
- Made to Order
- Made in the USA
| (H) Nominal Size | Material | (A) Roof | (B) Face | (C) Kick | (D) Hem | (E) Overhang | (F) | Stock (Total Material) |
|---|---|---|---|---|---|---|---|---|
| 1.5" | Copper, Freedom Gray, Lead Coated Copper | 2.125" | 1" | 0.5" | 0.375" | 1" | 3.125" | 6" |
| 1.5" | Aluminum, Steel, Galvalume and Stainless Steel | 2.125" | 1" | 0.5" | 0.375" | 1" | 3.825" | 6" |
| 2" | Copper, Freedom Gray, Lead Coated Copper | 2.625" | 1.5" | 0.5" | 0.375" | 1" | 3.125" | 7.2" |
| 2" | Aluminum, Steel, Galvalume and Stainless Steel | 2.625" | 1.5" | 0.5" | 0.375" | 1" | 4.625" | 8" |
All dimensions are approximate with ~1/8" tolerance.
Ordering Instructions
Submittals & Downloads
Color and Material Options
0.027" Aluminum Flashing Metal Options
Black
Dark Bronze
Musket Brown
Royal Brown
Almond
Linen
Low Gloss White (30°)
High Gloss White (80°)
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
