The Cathedral Chimney Cap

Product SKU :

$ 745.00 845.0 USD $ 745.00

$ 745.00

Have a CUSTOM request? Please EMAIL us for a quote.

Material
Mount Type
Approximate Width A
Approximate Length B
Actual Dimensions
Add 1/4" to Length and Width?
Screen Height
Screen Type
Product custom made to order
- I understand this product is custom made to order and cannot be returned.

This combination does not exist.

ADD TO CART BUY NOW

Screen Height: I have read and understand the screen height will be 75% of screen side dimension (A).

Product custom made to order: I understand this product is custom made to order and cannot be returned.

Terms and Conditions
30-day money-back guarantee
Lead Time: 30.0 Days

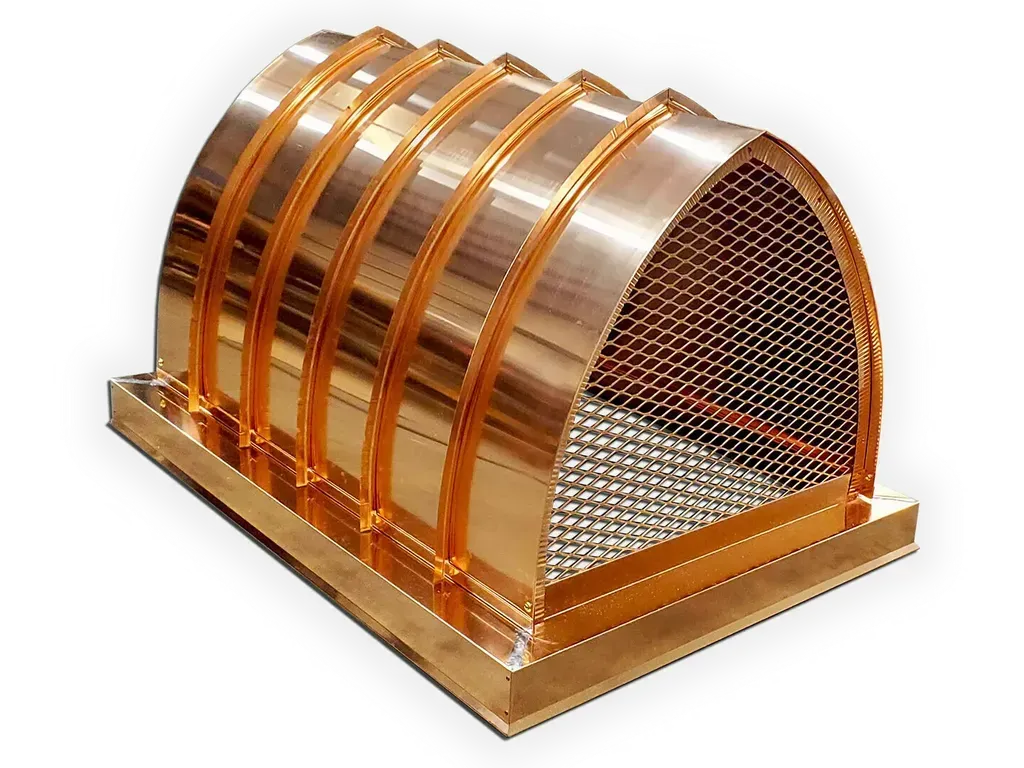

The Cathedral Multi Flue Chimney Cap

Available in Copper, Lead Coated Copper, Freedom Gray, Stainless Steel, Aluminum and Steel

This multi flue chimney cap features a convex roof with decorative standing seams. It is made to size with a radius roof in the shape of 75% of the dimension on the screen side portion.
The radius of the roof changes with the size of your cap, but is as consistent on the look as possible.
Roof will feature seams as needed due to sheet stock sizing. There is no way around this.
This chimney cap be side mounted or top mounted.
Copper or aluminum screen (expanded metal) is used to allow for ventilation.
The roof is removable to allow for cleaning. This is done by removing the 4 corner bolts that mount the roof to the frame. This means the roof will normally come out in one piece. For large caps, this task may require 2 people.
As seen in images and submittal, this cap vents on 2 sides only, rather than on all 4 as more standard chimney caps. Prior to ordering, ensure this chimney cap will provide enough ventilation for your application.
This product is cut by laser to ensure a perfect fitting.
Custom designs, sizes and different materials may be available. Please contact us for pricing. Made in the USA.

Materials

Copper - 16 oz. and 20 oz.
Freedom Gray® - 16 oz. and 20 oz.
Galvalume Plus - 24 Gauge
Kynar® Aluminum - 0.032"
Kynar® Galvalume (Steel) - 24 Gauge
Lead Coated Copper - 16 oz. and 20 oz.
Stainless Steel - 2B 304 24 gauge

Specifications

Base height: 3.5"
Base width (horizontal portion): 3"
Screen height: 75% of screen side dimension
Mount: Top mounted or Side mounted

Availability

Custom Made to order
Made in the USA

CA Residents:

Prop 65 Warning(s)

Ordering Instructions

A - Please fill out the form in order. With each selection, the main image changes to reflect your choice.
B - Approximate width and Approximate length fields are used calculate the price of your chimney cap. Pick the ranges that match your dimensions.
C - For side mount configurations, please make sure to either tell us to "Add 1/4" to Length and Width" via selecting "Yes" in that field, or pre-add at least 1/4" to your exact dimensions and tell us not add another 1/4", unless necessary. Ordering the exact dimension of your chimney will result in a chimney cap too tight that will not fit without costly on site modification.
D - Please do not place an order for a chimney cap out of square. Instead, contact us for a quote. A template or sketch may be necessary.
It is mostly common to order on the square caps for small, out of square gaps, up to 0.75"-1", since most of the time chimneys are out of square. However, it is a good idea to make a template on site and test fit to make sure the chimney cap would fit.
Shims can also be used if necessary on side mount applications to avoid denting the side of the chimney cap.

Top Mount vs. Side Mount

Top Mount: A top mount chimney cap is ideally used on irregular shape chimneys, those with out of square corners or made out of stones for example. It can also be used when a cap smaller than the chimney itself is desired (which also makes it less costly), or simply if its visually preferred; when the vertical side skirt portion present on side mount caps is not a desired feature.

Side Mount: An outside mount chimney cap features a vertical mounting skirt covering part of the side of the chimney, usually around 3.5". This is the ideal way to mount a chimney cap in most instances, as it covers the whole top of the chimney, protecting it against the weather.
Side mounting is ideal in most situations if possible.

Installation

Top Mount: Typically, a top mounted cap will be attached with construction adhesive. It can also be attached via tapcons, screws or anchors, however, this is normally not desirable as it is something that would need to be waterproofed.
It can also be either soldered to an existing chase cover if present, or attached via zip screws, rivets, or even the aforementioned screws, anchors or tapcons.

Side Mount: This most common version of our caps can be mounted via screws, masonry pins, anchors or tapcons. Unlike a top mount cap, this is to be mounted from the side, through the vertical side portion of the chimney cap base (a.k.a. skirt) which can be easily drilled. It can however, also be mounted via construction adhesive, using the underside of the horizontal portion of the base like a top mount cap.
This is only typically done because its quicker/easier, or in order not to see the side mounted fastener. This method is not as common.
Although installation is considered simple and straight forward, we recommend that it be done by a professional.

Top Mount vs. Side Mount Chimney Caps

Submittals & Downloads

PDF - CC106 - The Cathedral chimney cap

Color and Material Options

The most popular chimney cap colors in Galvalume Steel and Aluminum Kynar are Black and Dark Bronze

Kynar® Aluminum & Galvalume Steel

Black

Matte Black
**24 Gauge Steel Only

Dark Bronze

Medium Bronze

Almond

Bone White

Copper Penny

Charcoal

Special Order Colors

Special Order colors require a minimum 2000 sqf. purchase for coil. Most colors have a 1 sheet minimum per order. Extra freight charges apply.

Patina Green

Teal

Hemlock Green

Forest Green

Hartford Green

Evergreen

Hunter Green

Arcadia Green

Military Blue

Berkshire Blue

Graphite

Interstate Blue

Slate Blue

Award Blue

Burnished Slate

Aged Bronze

Mansard Brown

Burgundy

Terra Cotta

Cardinal Red

Colonial Red

Midnight Bronze

Musket Gray

Sierra Tan

Sandstone

Slate Gray

Cityscape

Granite

Stone White

Anodic Clear

Silversmith

Silver

Champagne

Zinc

Weathered Zinc

Aged Copper

Weathered Steel

More Information

Kynar coated material is supplied by Petersen (Pac-Clad).
Colors are mostly available in 0.032″ and 0.040″ aluminum as well as 24 gauge galvalume (steel).
Some colors are available in 0.050″ and 0.063″ aluminum as well as 22 gauge galvalume.
Material available in sheet or coil format.
Pac Clad Sheets measure 48″ x 120″. No minimum purchase, but fees apply.
Standard coil widths are 20″ and 24″. Coils can be cut to any custom with from 48″ and under. Fees apply. 2000 sqf minimum purchase.
To learn more about Kynar® PVDF coated materials, please click here.

Downloads / Color Charts

PDF – PAC CLAD – Kynar Aluminum and Galvalume Steel Color Chart

Color Chart – To obtain a physical color chart or color chips, please visit this link.

Unpainted Stocked Materials

Bonderized Steel

Copper

Freedom Gray

Galvalume Plus

Lead Coated Copper

Mill Finish Aluminum

Stainless Steel

More Information

Bonderized Steel: Also known as Paint Grip. Offered in 26 gauge G90. 24 gauge available as special order.

Copper is commonly stocked in 3′ x 10′ and 4’x10′ sheets, 11.75″, 15″ 18″, 20″, 24″ (16 oz. or 20 oz.) and 36″ coil (16 oz.). 24 oz. and 32 oz. are available in 3′ x 10′ sheets. Our typical stock is 1/8 to 1/4 hard copper, supplied by Aurubis, Hussey and Revere.
We also stock 1″ x 3/16″ x 12′ bar stock. Other sizes as well as 48 oz. copper are available as special order items.

Freedom Gray is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Coils are available as a special order item with a 1000 lb. minimum. Freedom gray is a Tin / Zinc coated copper from Revere Copper.

Galvalume Plus is an Acrylic coated metal, also known as Acrylume. K&M utilizes Acrylume E Plus™ supplied by US Steel.

Galvanized Steel: Offered in 26 gauge G90. 24 gauge available as special order.

Lead Coated Copper is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Special order items include 3′ x 8′ sheets and 12″, 15″, 18″, 20″ and 24″ coil stock. A minimum of 1000 lbs. is required for a coil order.

Mill finish Aluminum is commonly stocked in 4′ x 10′ sheets of 0.032″ and 0.040″.

Stainless Steel in normally available in 24 and 26 gauge 4′ x 10′ sheets, 304 alloy 2B finish. Other thickness, and finishes such as #4, #8 and 2D available as special order items.

Downloads / Color Charts

PDF – Acrylume E Plus Coated Sheet Steel (Data Sheet)
PDF – Aluminum – Alcoa (SDS)
PDF – Copper (ASTM B370 Building Spec Sheet)
PDF – Copper – Revere (Spec Sheet)
PDF – Copper – Revere (MSDS)
PDF – Freedom Gray Copper – Revere (Spec Sheet)
PDF – Lead Coated Copper (ASTM B101 02 Building Spec Sheet)
PDF – Stainless Steel – Outokumpu (Data Sheet)

PDF – Expanded Aluminum Metal Flattened
PDF – Expanded Copper Metal Flattened

Copper is the most popular metal for chimney tops. It is offered in 16 oz. and 20 oz.
Freedom Gray (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.

Looking for a custom color not listed? Please EMAIL your request with all information including the metal manufacturer for a quote.

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.

Choosing the right material

Chimney Cap Material: Copper, Stainless Steel, Aluminum or Galvalume (Steel)?

Colored Materials: The first thing to consider is whether something in colors is desired. If so, that narrows choices down to either Kynar Aluminum or Kynar Galvalume (steel). Kynar-based PVDF are coatings formulated to resist sun and weather damage.

Steel (Galvalume) - Available in colors: Zinc Aluminum coated Steel for higher corrosion resistance, coatted with Kynar colors. Comes in the same colors as aluminum with a more rigid substrate, however, it is also heavier. Galvalume materials have self healing properties where cut or scratched.
Since this material is steel based, it is not an ideal choice for coastal (saltwater or brackish water) environments. For those, aluminum is the better choice.
Aluminum - Available in colors: Offering the same colors and look as Kynar coated galvalume steel at a lighter weight. Unlike galvalume, this can be used in costal environments.
Galvalume Plus (Acrylume): Zinc/Aluminum coated steel with an acrylic coating. Galvalume has a similar look to galvanized steel while being vastly more corrosion resistant. Galvalume materials also have self healing properties where cut or scratched.
Copper: Our most popular material. Copper does not rust and has antimicrobial properties. It is widely used in any environment. Copper can can be soldered or welded, which makes it a much better choice for now and future repairs. Copper comes with a raw finish that will start to patina immediately once outdoors, turning partly brown the day after the installation and mostly brown within a month. Although there's no precise way to determine due to many factors, copper will typically start to turn green within 25-35 years.
Freedom Gray: This copper based material offers all the same advantages as copper with a tin/zinc coating that will develop a mature slate gray patina after around one to three years of weather exposure.
Lead Coated Copper: Copper that has been dipped in lead. A traditional material that offers all the same advantages as copper. Because of the lack of solubility, not only lead coated copper prevents most if not all staining, it's environmentally safe.
Stainless steel: A trade off between color choices and sturdiness/longevity. While stainless steel withstands the test of time, it is limited to its mill finish (2B finish) look. The stainless steel we typically offer is a 304 alloy (most common). This alloy should not be used in coastal environments. A 316 marine alloy can be offered as a special order material.
Zinc: Special order. A traditional look at the cost of a more malleable, lighter material. While easier to work with, zinc is soft, and not always (depending on size and configuration) the best choice for a chimney cap. It can be offered as a special order in either a raw or other finishes.

Screen Specifications

PDF - Aluminum expanded metal screen
PDF - Copper expanded metal screen
