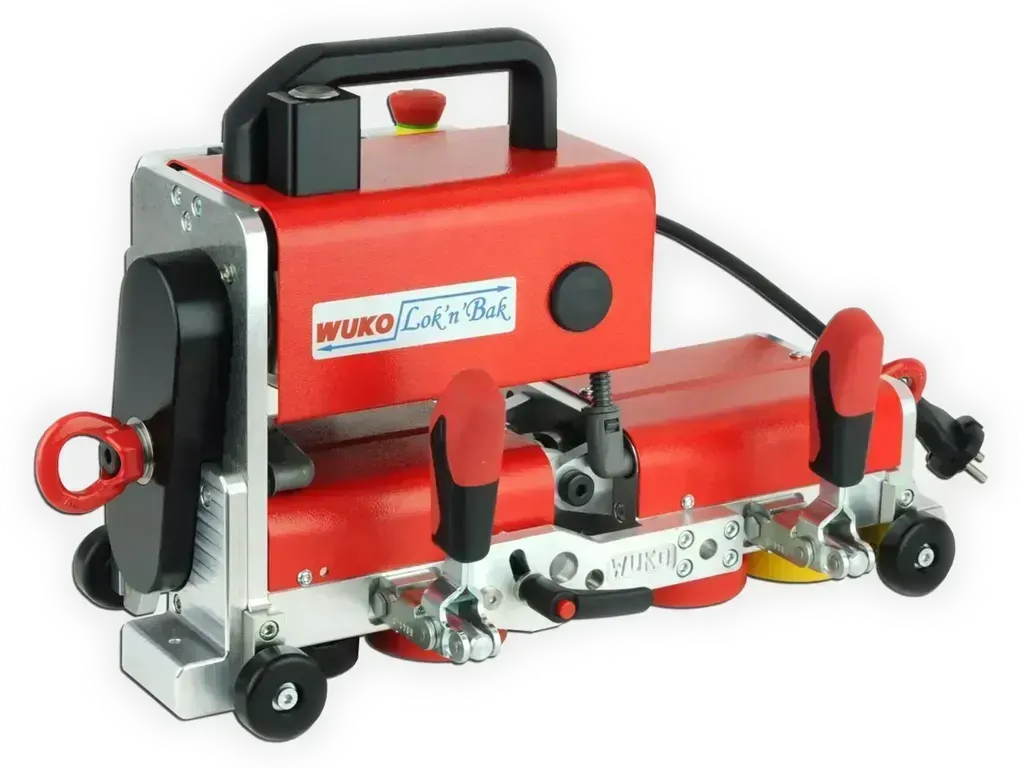

WUKO Lok’n’Bak 0412 - Standing Seam Roofing Automatic Seamer

WUKO Lock'n'Bak 0412

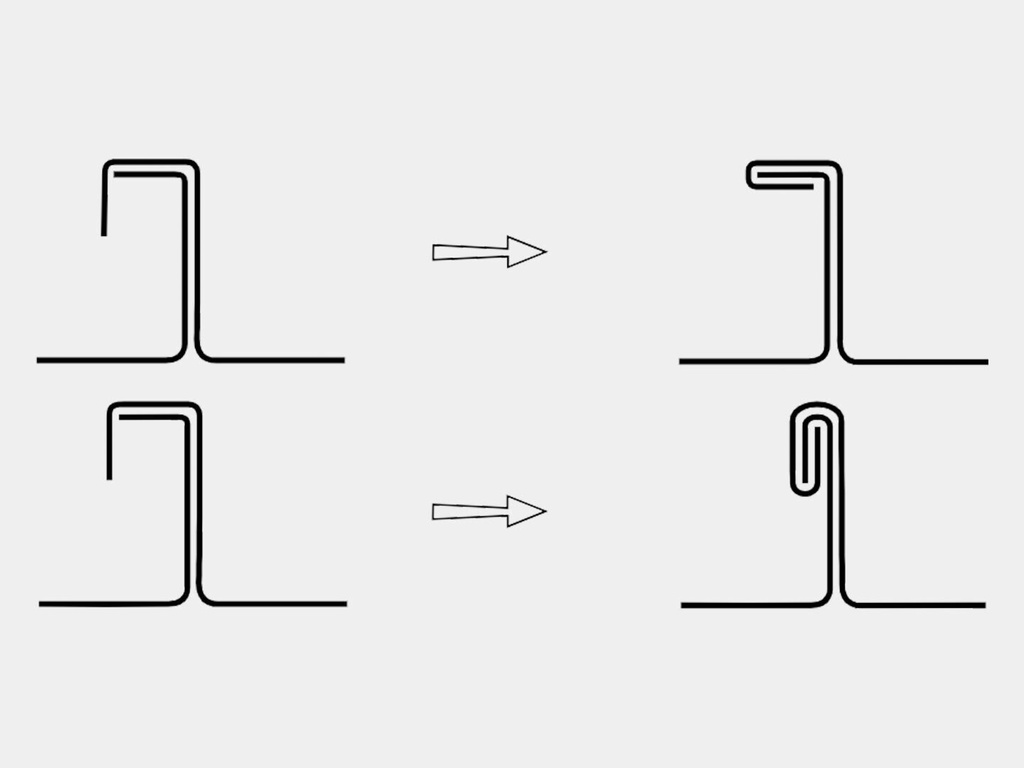

Lock seamer for closing the single or double lock standing seam metal roof panels

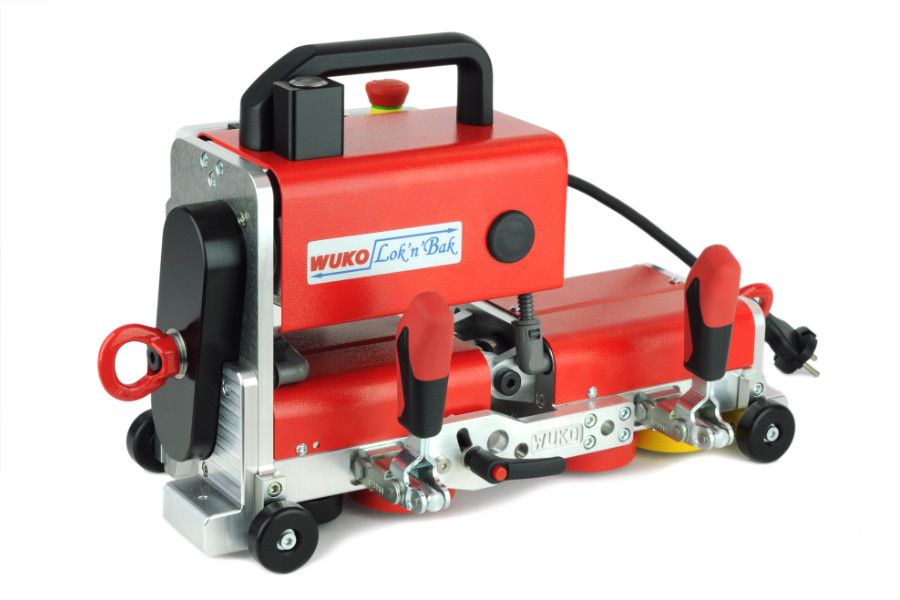

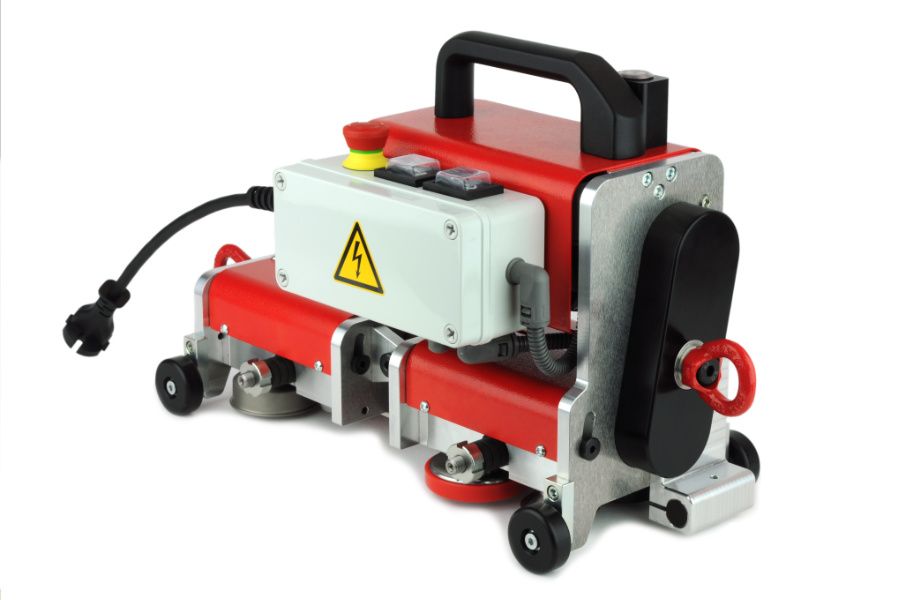

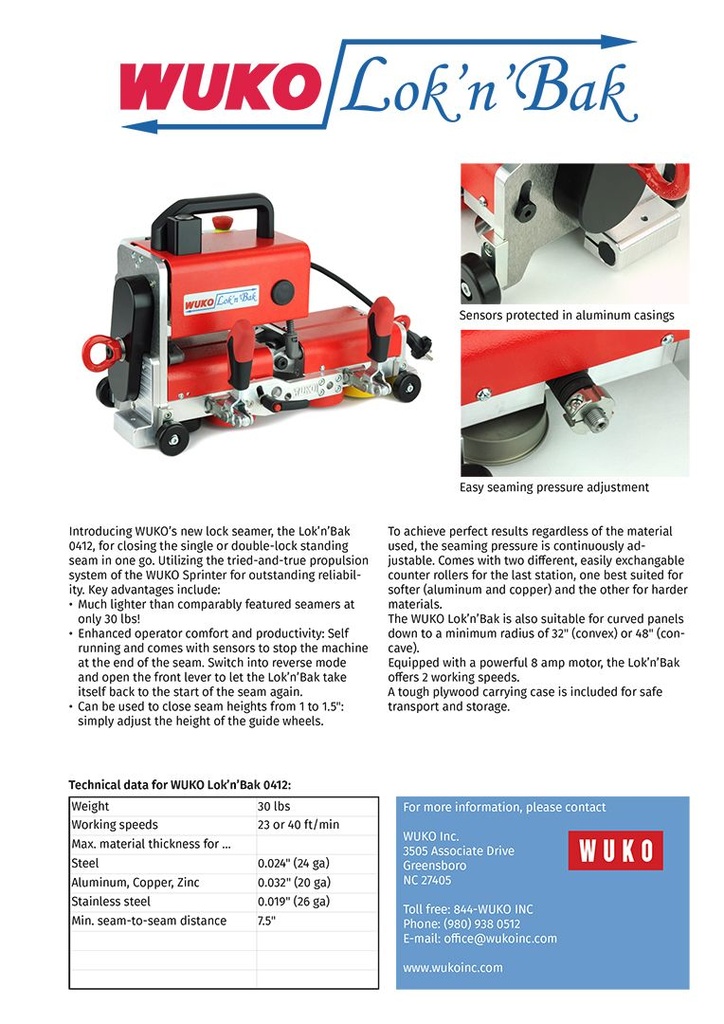

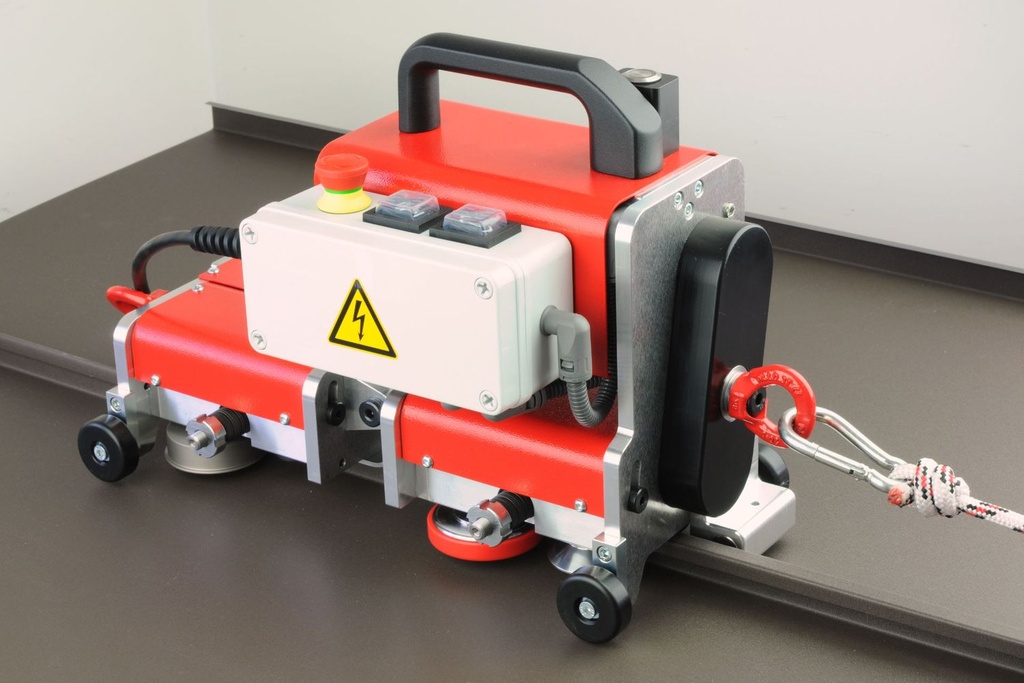

WUKO°s lock seamer, the Lok'n'Bak 0412, is used for closing the single or double-lock standing seam in one go. Utilizing the tried-and-true propulsion system of the WUKO Sprinter for outstanding reliability.

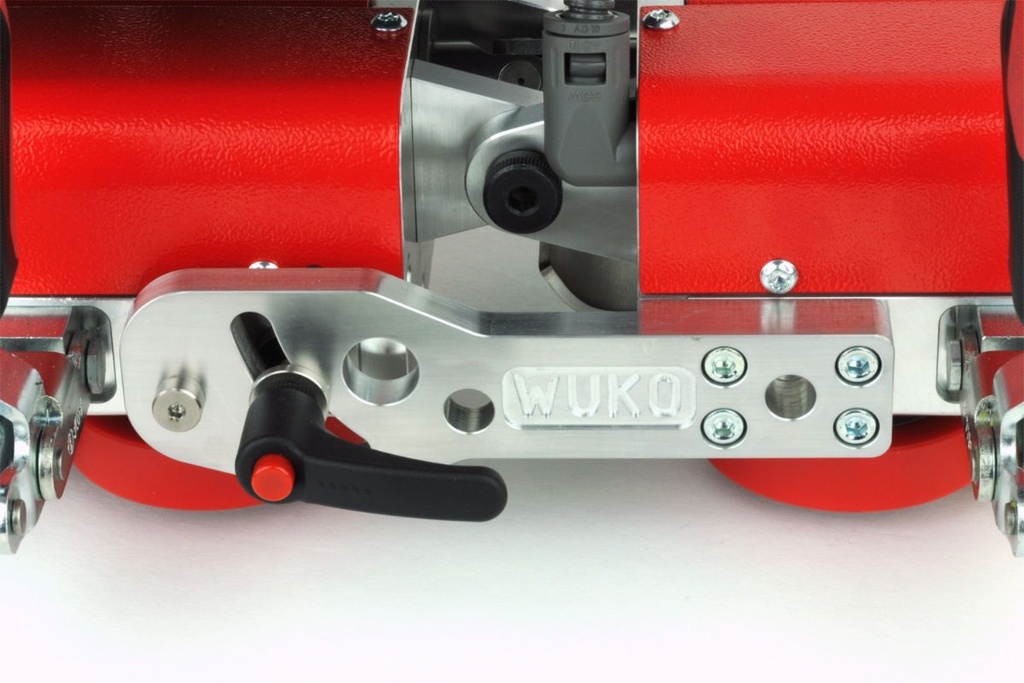

There's no need to changing the forming rollers. With one move of a handle, switch between closing a single or double lock.

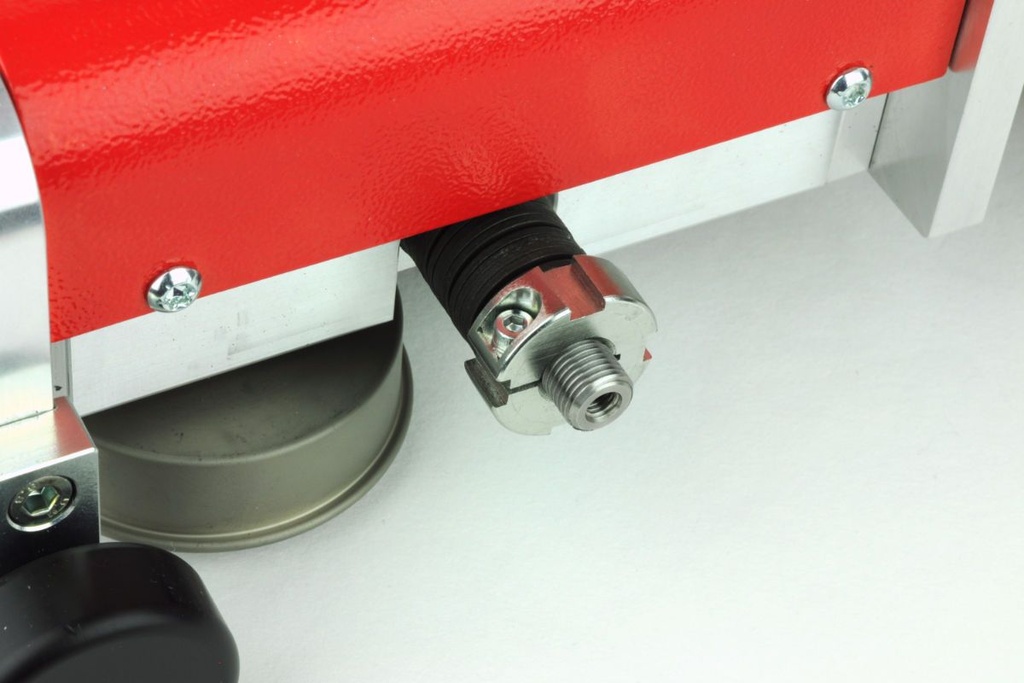

To achieve perfect results regardless of the material used, the seaming pressure is continuously adjustable. It comes with two different, easily exchangeable counter rollers for the last station, one best suited for softer (aluminum and copper) and the other for harder materials.
The WUKO Lok'n'Bak is also suitable for curved panels down to a minimum radius of 32" (convex) or 48" (concave).
Equipped with a powerful 8 amp motor, the Lok'n'Bak offers 2 working speeds.
Although the initial price may be high, this tool may pay for itself in the very first use. It is an incredible time saver!
A tough plywood carrying case is included for safe transport and storage.
Another great tool from the Wuko Arsenal.
This tool can be used on most sheet metals. Commonly on copper, zinc, steel, aluminum, freedom gray, lead coated copper, galvanized steel etc.

Highlights

  • Forward and backward run
  • Variable pressure adjustment
  • For different materials and seam heights (1" and 1.5")
  • No damage to painted or coated materials
  • Also for curved panels: convex: min. radius 0.8 m / 32" concave: min. radius 1.2 m / 48°
  • Two working speeds: 7 or 12 m/min / 23 or 40 ft/min
  • Incl. tough plywood carrying case
  • Compatible on profiles measuring up to 1/2" across top
  • Much lighter than comparably featured seamers at only 30 lbs.!
  • Enhanced operator comfort and productivity: Self running and comes with sensors to stop the machine at the end of the seam. Switch into reverse mode and open the front lever to let the Lok'n'Bak take itself back to the start of the seam again.

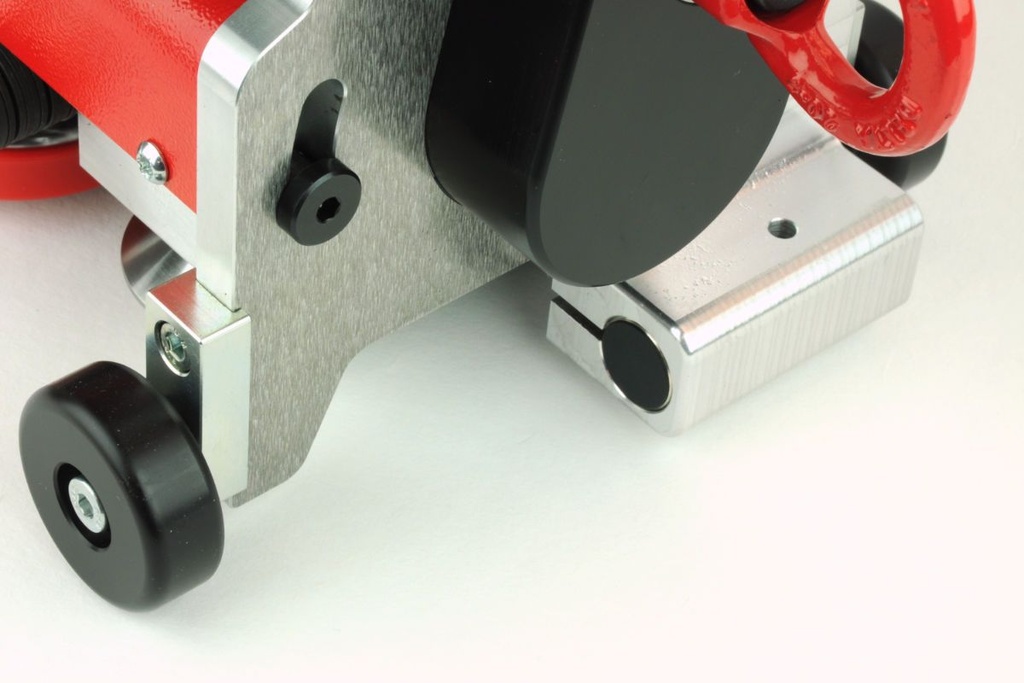

  • Can be used to close seam heights from 1" to 1.5": simply adjust the height of the guide wheels.

Specifications

  • Seam height: 25 mm / 1" and 1 1/2")
  • Maximum sheet metal thickness for Galvanized Steel: 0.65 mm / 0.024" - 24 gauge
  • Maximum sheet metal thickness for Aluminum, Copper and Zinc: 0.80 mm / 0.031" - 20 gauge
  • Maximum sheet metal thickness Stainless Steel: 0.50 mm / 0.020" - 26 gauge
  • Minimum seam-to-seam distance: 10 cm / 4"
  • Power rating: 720 W
  • Standard voltage: 120 V
  • Weight: 13.5 kg / 30 lbs.
  • Made in Austria
WU0412

WUKO Lok’n’Bak 0412 - Standing Seam Roofing Automatic Seamer

Product SKU : WU0412

6,990.00 6990.0 USD 6,990.00

6,990.00

/ ea

    This combination does not exist.

    ADD TO CART BUY NOW

    Terms and Conditions
    30-day money-back guarantee
    Lead Time: 10.0 Days
