The Royal Conductor Head

Product SKU :

$ 379.95 379.95 USD $ 379.95

$ 379.95

/ ea
  • Material / Color
  • Outlet Size

This combination does not exist.

ADD TO CART BUY NOW

Select Variant Min. Quantity Price per Unit

Terms and Conditions
30-day money-back guarantee
Lead Time: 14.0 Days

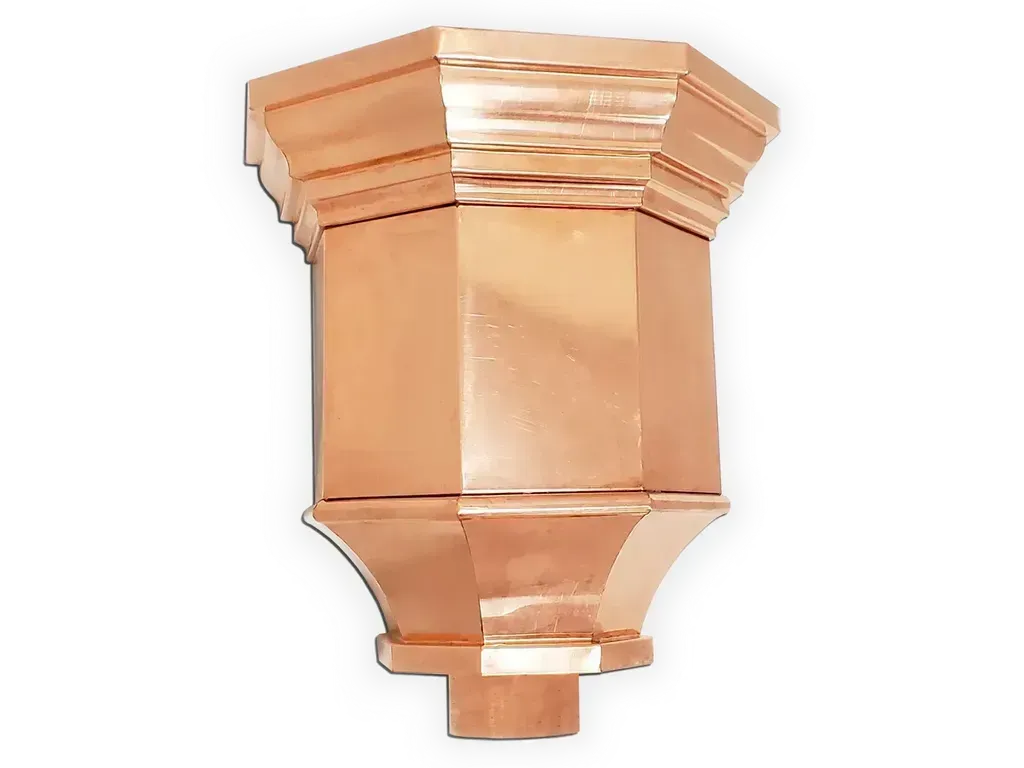

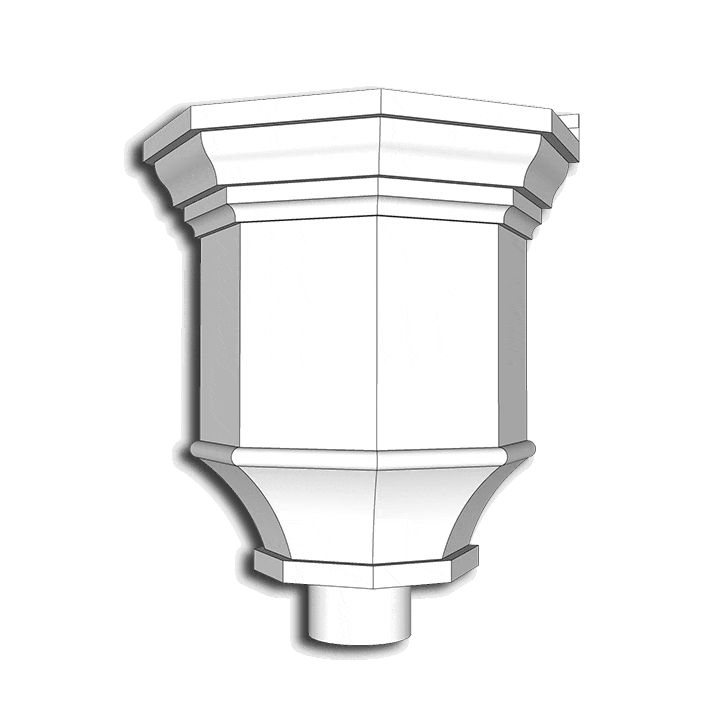

The Royal Conductor Head

Available in copper, zinc, lead coated copper, freedom gray® and stainless steel

The Royal is a large leader head featuring a detailed ogee profile. It is a favorite of our residential customers and contractors for higher-end jobs. The Royal pairs well with both square and round downspouts.
Because of its detailed profile, this leader head is only available in materials that can be soldered together.
Please contact us for a custom size, color or material, such as pre patina copper, lead coated copper, stainless steel, aluminum or freedom gray.

Adding conductor heads to a gutter system will enhance the beauty and architectural style on a building. They are traditionally installed under the soffit to let air into the line which then prevents excess noise (gurgling) and helps stop vacuum lock. They are also used for through wall scuppers and roof drains.

Why is this conductor head not available in aluminum?

  • This conductor head can be manufactured in aluminum, however, since every side of this item is one individual piece of metal, that makes the need for a lot of rivets when putting this together, which some customers don't like. For this reason, we decided to offer this one as a standard in stainless steel. This way, we can still solder the seams like in copper, but powder coat it to match the standard colors we offer. If you still decide you want it in aluminum, please contact us for a quote.

Specifications

  • Width: 15"
  • Depth: 9.75"
  • Height: 15.75"

Downspout Options

  • 2"x3", 3"x3", 3"x4", 4"x4", 4"x5", 4"x6", 5"x5" & 5"x6" Square
  • 3", 4", 5" & 6" Round

Availability

  • Made to order
  • Made in the USA

CA Residents: Prop 65 Warning(s)
Submittals & Downloads

PDF - The Royal Conductor Head

Color and Material Options

Stainless Steel Powder Coated to Match 0.027" Aluminum Material Colors

Black 0.027

Black

Dark bronze 0.027

Dark bronze

Musket Brown 0.027

Musket Brown

Royal brown 0.027

Royal brown

Almond 0.027

Almond

Linen 0.027

Linen

30° white 0.027

Low Gloss (30°) White

80° white 0.027

High Gloss (80°) White

Stainless Steel Powder Coated to Match Kynar Pac Clad Standard Aluminum & Galvalume Steel Material Colors

Black kynar aluminum

Black Aluminum

Matte black kynar steel

Matte Black Steel

Dark bronze kynar aluminum and galvalume

Dark Bronze

Medium bronze kynar aluminum and galvalume

Medium Bronze

Almond kynar aluminum and galvalume

Almond

Bone white kynar aluminum and galvalume

Bone White

Copper penny kynar aluminum and galvalume

Copper Penny

Charcoal kynar aluminum and galvalume

Charcoal

Unpainted Stocked Materials

Bonderized Steel

Bonderized Steel

Copper

Copper

Freedom gray

Freedom Gray

Galvalume

Galvalume Plus

Lead coated copper

Lead Coated Copper

Mill finish aluminum

Mill Finish Aluminum

Stainless steel

Stainless Steel

More Information

Bonderized Steel: Also known as Paint Grip. Offered in 26 gauge G90. 24 gauge available as special order.

Copper is commonly stocked in 3′ x 10′ and 4’x10′ sheets, 11.75″, 15″ 18″, 20″, 24″ (16 oz. or 20 oz.) and 36″ coil (16 oz.). 24 oz. and 32 oz. are available in 3′ x 10′ sheets. Our typical stock is 1/8 to 1/4 hard copper, supplied by Aurubis, Hussey and Revere.
We also stock 1″ x 3/16″ x 12′ bar stock. Other sizes as well as 48 oz. copper are available as special order items.

Freedom Gray is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Coils are available as a special order item with a 1000 lb. minimum. Freedom gray is a Tin / Zinc coated copper from Revere Copper.

Galvalume Plus is an Acrylic coated metal, also known as Acrylume. K&M utilizes Acrylume E Plus™ supplied by US Steel.

Galvanized Steel: Offered in 26 gauge G90. 24 gauge available as special order.

Lead Coated Copper is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Special order items include 3′ x 8′ sheets and 12″, 15″, 18″, 20″ and 24″ coil stock. A minimum of 1000 lbs. is required for a coil order.

Mill finish Aluminum is commonly stocked in 4′ x 10′ sheets of 0.032″ and 0.040″.

Stainless Steel in normally available in 24 and 26 gauge 4′ x 10′ sheets, 304 alloy 2B finish. Other thickness, and finishes such as #4, #8 and 2D available as special order items.

Downloads / Color Charts

 PDF – Acrylume E Plus Coated Sheet Steel (Data Sheet)
 PDF – Aluminum – Alcoa (SDS)
 PDF – Copper (ASTM B370 Building Spec Sheet)
 PDF – Copper – Revere (Spec Sheet)
 PDF – Copper – Revere (MSDS)
 PDF – Freedom Gray Copper – Revere (Spec Sheet)
 PDF – Lead Coated Copper (ASTM B101 02 Building Spec Sheet)
 PDF – Stainless Steel – Outokumpu (Data Sheet)

 PDF – Expanded Aluminum Metal Flattened
 PDF – Expanded Copper Metal Flattened

Looking for a custom color not listed? Please EMAIL your request with all information including the metal manufacturer for a quote.

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
