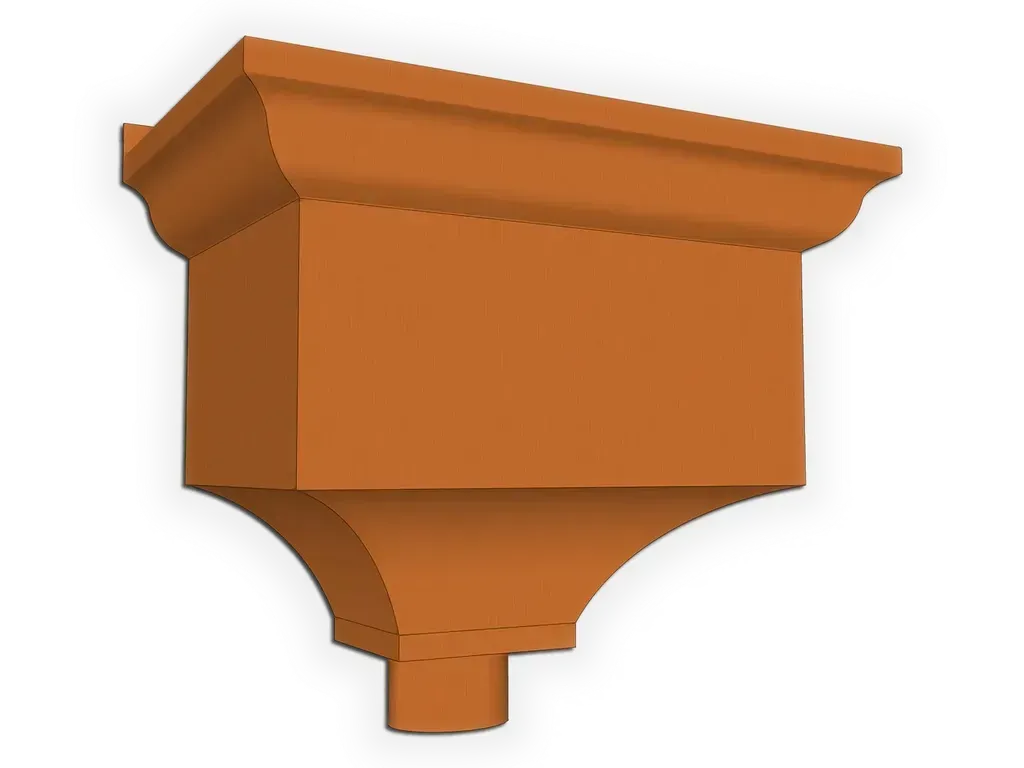

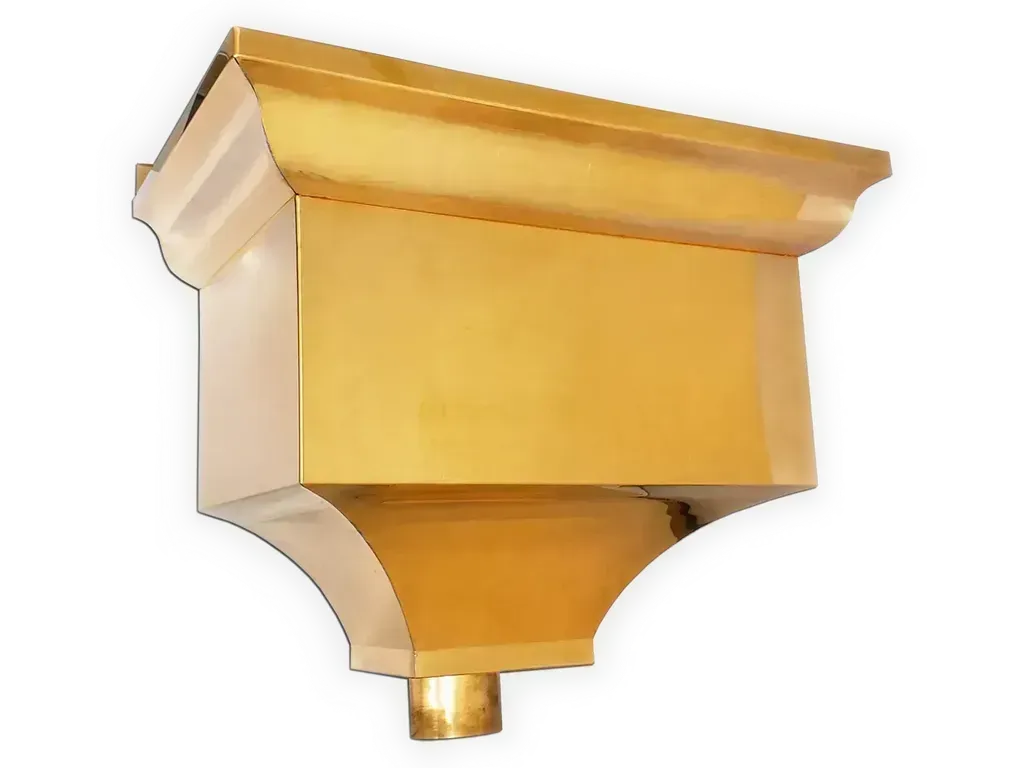

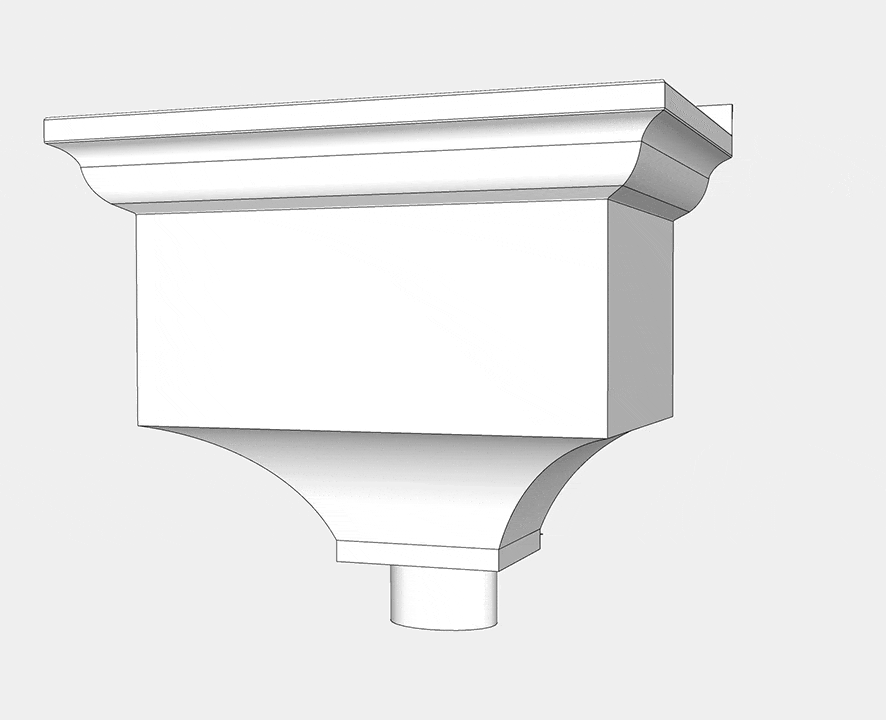

The Large Federal Conductor Head

Available in copper, zinc, galvalume plus, colored kynar aluminum and galvalume

The Federal Large Conductor Head is a 20" wide version of our most popular economy conductor head also known as leader head or collector box. This allows for larger size scupper box or downspout options. The Federal Large Conductor Head has an elegant look that pairs well with both square and round downspouts. This conductor features a base with a concave swoop and an 'Ogee' style top.
Please contact us for a custom size, color or material, such as pre patina copper, lead coated copper, stainless steel or freedom gray.

Adding conductor heads to a gutter system will enhance the beauty and architectural style on a building. They are traditionally installed under the soffit to let air into the line which then prevents excess noise (gurgling) and helps stop vacuum lock. They are also used for through wall scuppers and roof drains.

Specifications

  • Width: 20"
  • Depth: 12"
  • Height: 15"

Downspout Options

  • 2"x3", 3"x4" & 4"x5" Square
  • 3", 4" & 5" Round

Availability

  • Made to order
  • Made in the USA
CA Residents: Prop 65 Warning(s)
Submittals & Downloads
Color and Material Options
0.027" Aluminum Conductor Heads and Leader Heads Color Options
Black 0.027

Black

Dark bronze 0.027

Dark Bronze

Musket Brown 0.027

Musket Brown

Royal brown 0.027

Royal Brown

Almond 0.027

Almond

Linen 0.027

Linen

30Úð°° white 0.027

Low Gloss White

80Úð°° white 0.027

High Gloss White

Pac Clad Standard 0.032" Kynar Aluminum and 24 Gauge Galvalume Steel Conductor Heads and Leader Heads Color Options
Black kynar aluminum

Black Aluminum

Matte black kynar steel

Matte Black Steel

Black kynar aluminum and galvalume

Charcoal Aluminum Steel

Dark bronze aluminum and galvanized steel

Dark Bronze Aluminum Steel

Medium bronze aluminum and galvanized steel

Medium Bronze Aluminum Steel

Copper penny aluminum and galvanized steel

Copper Penny Aluminum Steel

Almond aluminum and galvanized steel

Almond Aluminum Steel

Bone white aluminum and galvanized steel

Bone White Aluminum Steel

Common Material Options for Leader Heads
Copper

Copper

Pre Patina Copper

Pre Patina Copper

Freedom gray

Freedom Gray

Galvalume Plus

Galvalume Plus

Lead coated copper

Lead Coated Copper

Stainless Steel

Stainless Steel

Zinc

Zinc

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
