[CHCL] The Chancellor Conductor Head | Leader Headhttps://docs.kmsheetmetal.com/shop/the-chancellor-conductor-head-leader-head-13538The Chancellor is a beautiful 5 sided conductor head that features 1/4" inset panels on the sides and front along with a gorgeous scroll pattern on the front. Made in USA.CHCL
Available in 16 oz. and 20 oz. Copper, Freedom Gray®, Lead Coated Copper and and 0.7 mm zinc

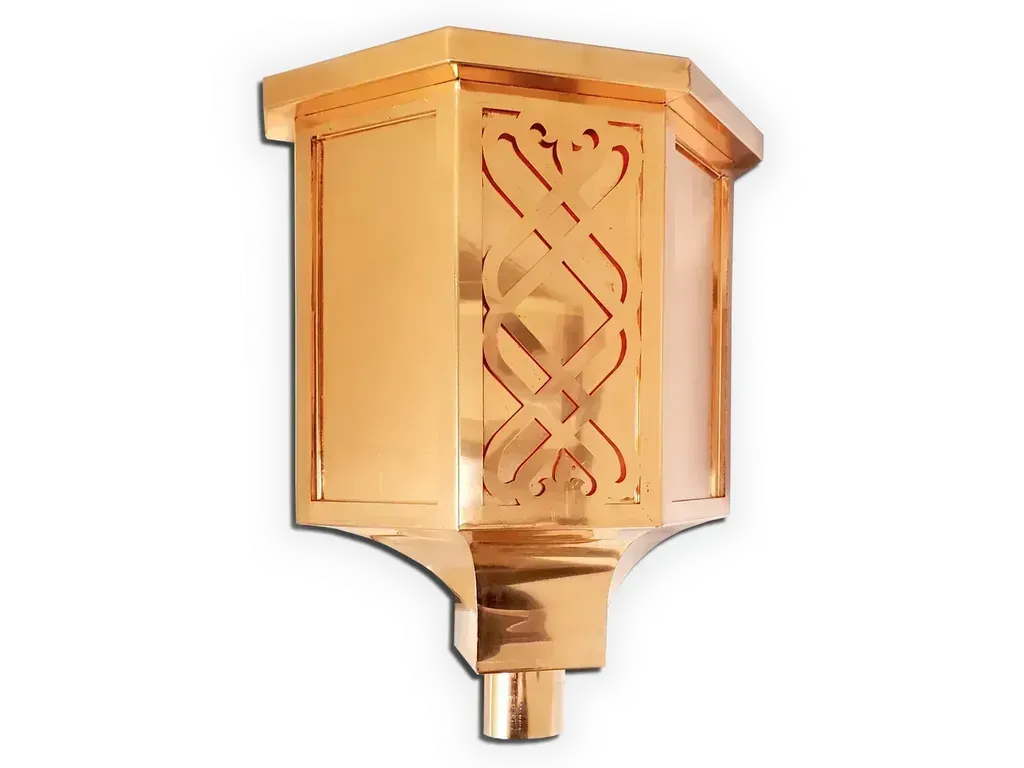

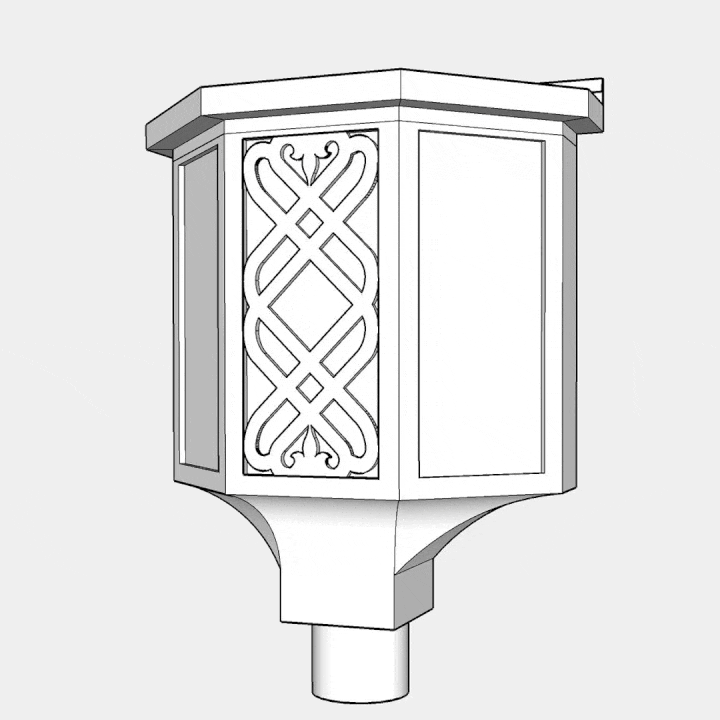

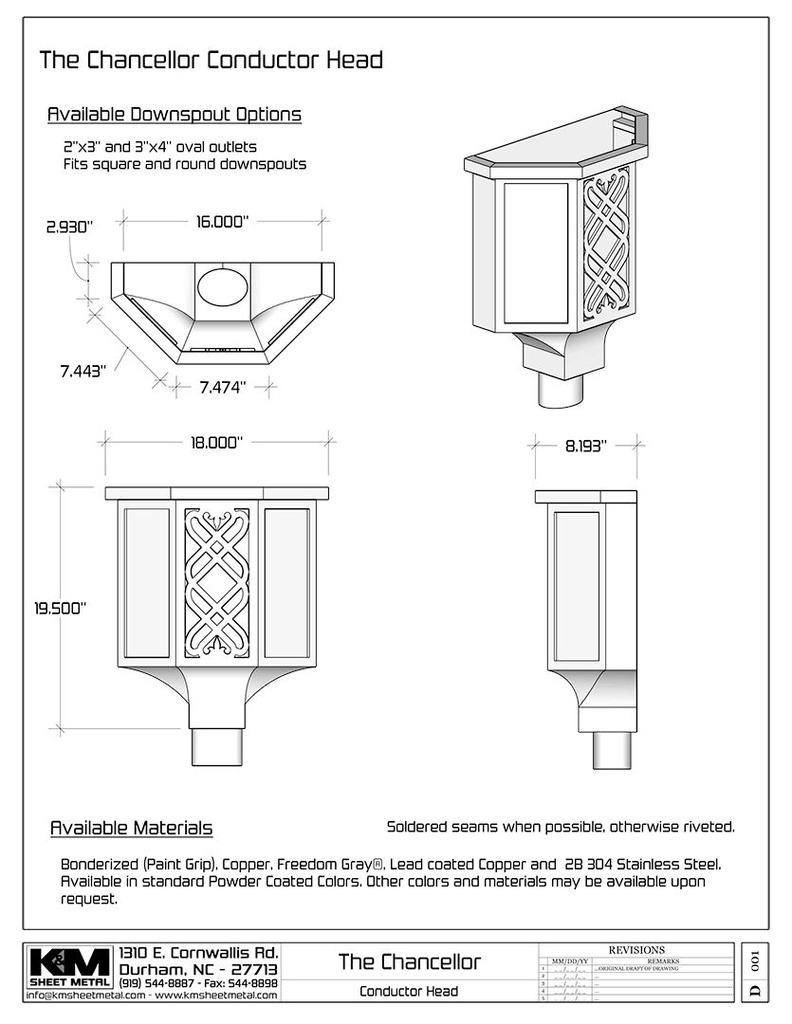

The Chancellor is a beautiful 5 sided conductor head that features 1/4" inset panels on the sides and front along with a gorgeous scroll pattern on the front. The Chancellor pairs well with both square and round downspouts.
Please contact us for a custom size, color or material, such as pre patina copper, lead coated copper, stainless steel, aluminum or freedom gray.
Adding conductor heads to a gutter system will enhance the beauty and architectural style on a building. They are traditionally installed under the soffit to let air into the line which then prevents excess noise (gurgling) and helps stop vacuum lock. They are also used for through wall scuppers and roof drains.
Why is this conductor head not available in aluminum?
This item is made up of several individual pieces because of its intricacy. For this reason, it is only offered in materials that can be soldered.
Bonderized Steel: Also known as Paint Grip. Offered in 26 gauge G90. 24 gauge available as special order.
Copper is commonly stocked in 3′ x 10′ and 4’x10′ sheets, 11.75″, 15″ 18″, 20″, 24″ (16 oz. or 20 oz.) and 36″ coil (16 oz.). 24 oz. and 32 oz. are available in 3′ x 10′ sheets. Our typical stock is 1/8 to 1/4 hard copper, supplied by Aurubis, Hussey and Revere.
We also stock 1″ x 3/16″ x 12′ bar stock. Other sizes as well as 48 oz. copper are available as special order items.
Freedom Gray is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Coils are available as a special order item with a 1000 lb. minimum. Freedom gray is a Tin / Zinc coated copper from Revere Copper.
Galvalume Plus is an Acrylic coated metal, also known as Acrylume. K&M utilizes Acrylume E Plus™ supplied by US Steel.
Galvanized Steel: Offered in 26 gauge G90. 24 gauge available as special order.
Lead Coated Copper is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Special order items include 3′ x 8′ sheets and 12″, 15″, 18″, 20″ and 24″ coil stock. A minimum of 1000 lbs. is required for a coil order.
Mill finish Aluminum is commonly stocked in 4′ x 10′ sheets of 0.032″ and 0.040″.
Stainless Steel in normally available in 24 and 26 gauge 4′ x 10′ sheets, 304 alloy 2B finish. Other thickness, and finishes such as #4, #8 and 2D available as special order items.
Copper is the most popular metal for conductor heads. It is offered in 16 oz. and 20 oz.
Freedom Gray (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Looking for a custom color not listed?
Please EMAIL your request with all information including the metal manufacturer for a quote.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
