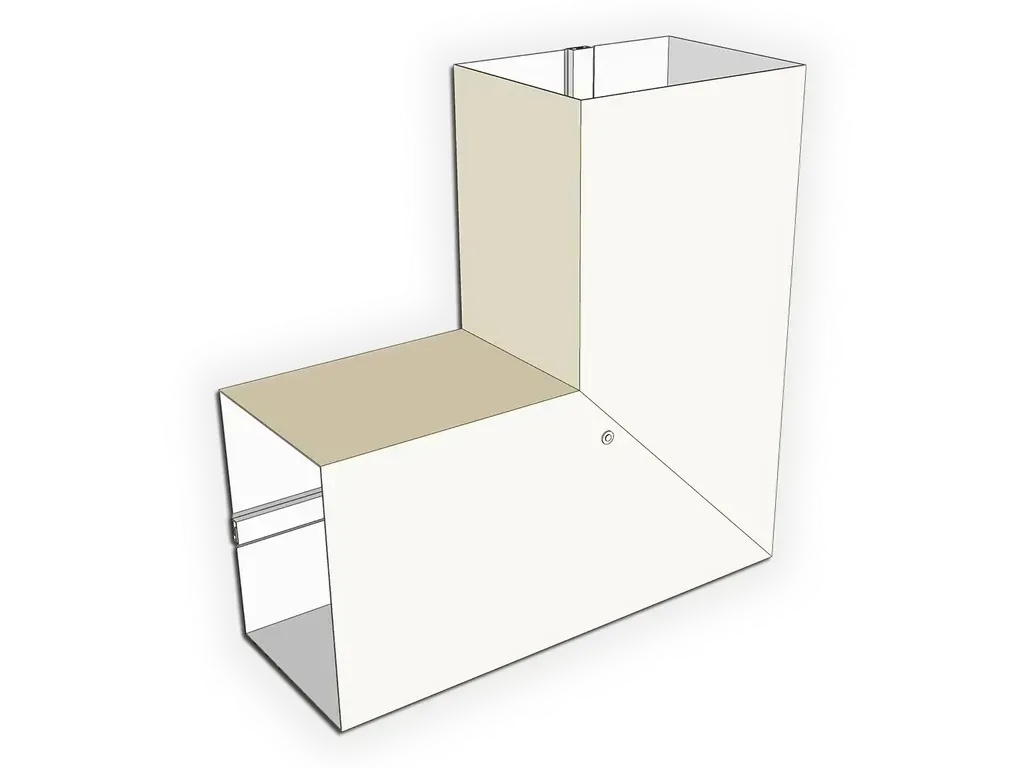

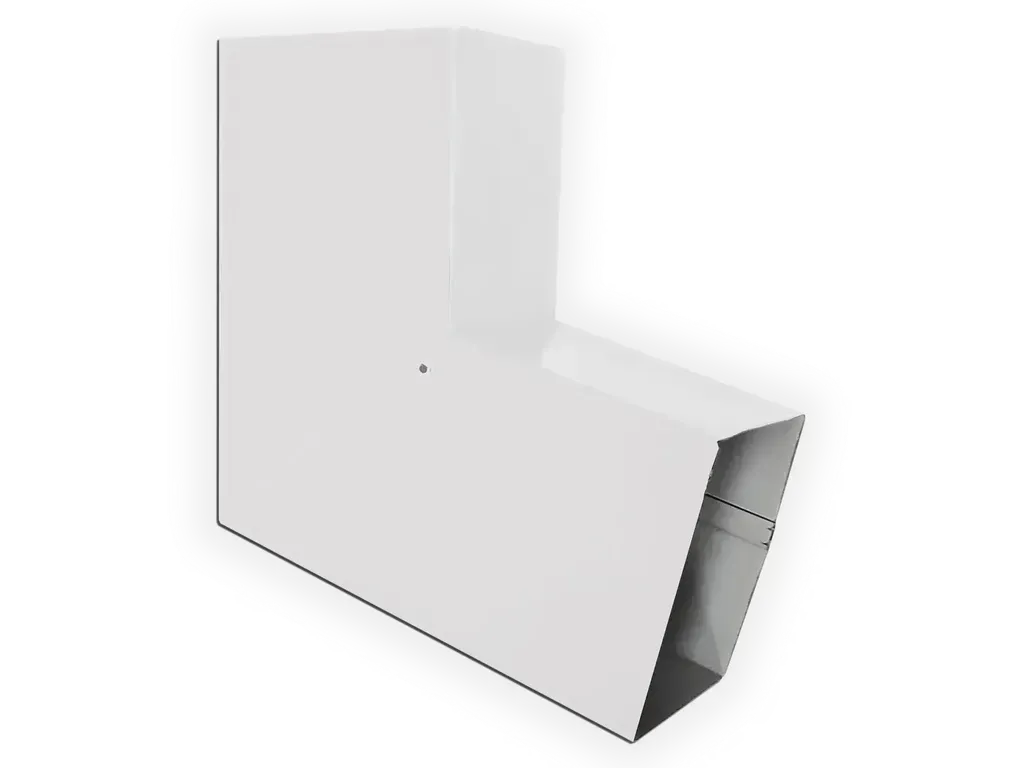

Plain Square 0.027" (B) Aluminum Elbow
Available in several colors. 0.027" Standard Aluminum.
Elbows are fittings designed to change the downspout direction in pre specified angles.
A "B" style elbow refers to an elbow that, when attached to a downspout, angles the downspout sideways in reference to a building.
Plain Square Elbows are commonly paired with K-Style and Box Gutters, but not necessairly. Typically 2"x3" is selected for 5" K Style and 3"x4" is used with 6" K Style.
The non crimped end easily fits over the outside of an outlet or the crimped end of a downspout. We also sell
crimpers for the downspout portion not crimped (if it was trimmed for example).
Custom colors and materials are available. Please contact us for pricing.
Specifications
- Size: 2" x 3" & 3" x 4"
- Material Thickness: 0.027"
- Angle: #0 (30°), #1 (45°), #2 (60°), #3 (75°) and #4 (90°)
Submittals & Downloads
No downloads available.
Color and Material Options
0.027" Aluminum Elbow Color Options
Black
Dark Bronze
Musket Brown
Royal Brown
Almond
Linen
Low Gloss White (30°)
High Gloss White (80°)
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
