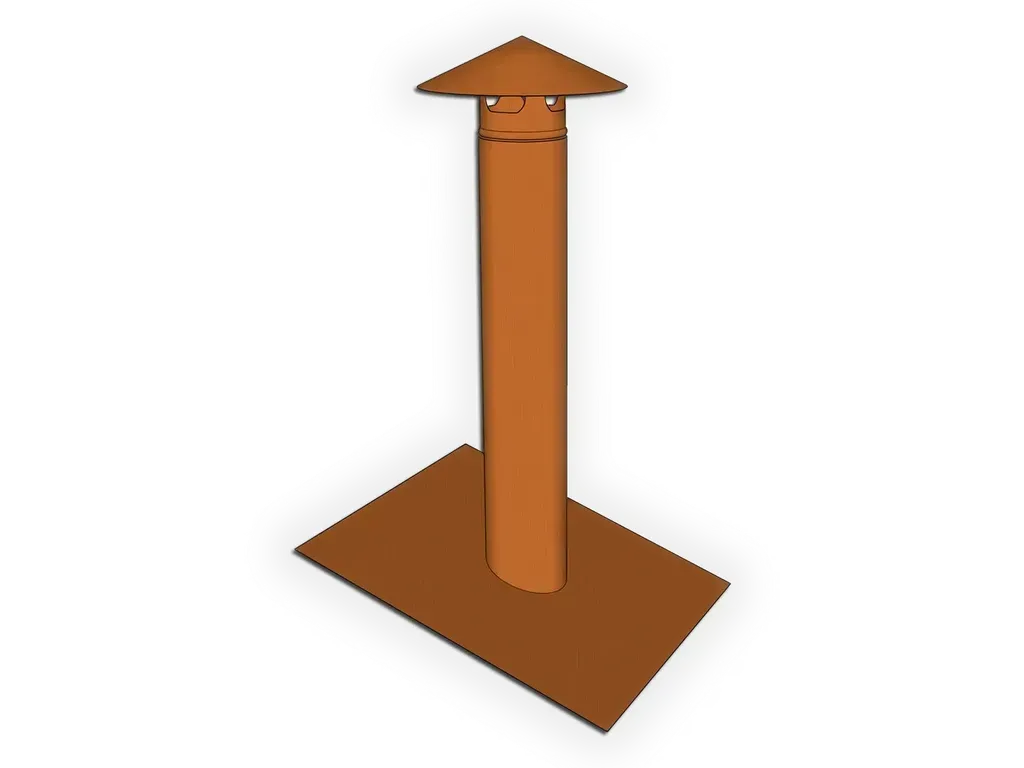

Custom Pipe Vent Stack - Pitched and Flat
Available in Copper, Lead Coated Copper, Freedom Gray, Stainless Steel Aluminum and Steel
Our Roof Vent Pipe Covers, also known as Stink Pipe Covers are used to dress and flash Drain Vent Pipes.
Our stink pipes are laser cut and manufactured in any angle from a flat roof (0) to a 15 pitch. The mounting base is 12"x12", 16" x 16" or 24" x 24".
K&M manufactures these items in 18" of length + the cap (included in the price). If necessary, you may
cut the pipe down to a shorter length with sheet metal snips.
Our roof vent flashings can be used on slate, metal, shingle, tile or wood roofs.
Custom designs, sizes and different materials may be available. Please contact us for pricing. Made in the USA.
Materials
Specifications
Availability
- Custom Made to order
Correct Pipe Dimensions
The cover we manufacture is sold as the listed size.
A 3" cover will be approximately 3" on the outside with 2 7/8" inside dimension.
A 4" cover will be approximately 4" on the outside with 3 7/8" inside dimension.
A 5" cover will be approximately 5" on the outside with 4 7/8" inside dimension.
A 6" cover will be approximately 6" on the outside with 5 7/8" inside dimension.
PVC Pipe Examples
| K&M Cover Size | K&M Cover Inside Dimension | PVC SCH 40 Nominal Size | PVC Inside Diameter | PVC Outside Diameter |
|---|---|---|---|---|
| 3" | ~2.875" | 2" | 2.067" | 2.375" |
| 4" | ~3.875" | 3" | 3.068" | 3.5" |
| 5" | ~4.875" | 4" | 4.026" | 4.5" |
| 6" | ~5.875" | 5" | 5.047" | 5.563" |
Materials loss table chart
The table below explain the loss of material in the back of a pipe cover per pitch. For example, a 3" stack vent cover on a 5 pitch will lose 1.25" off the back. The front of the pipe will be 18" while the back will be 16.75" (18"-1.25").
| Pitch | 3" Cover | 4" Cover | 5" Cover | 6" Cover |
|---|---|---|---|---|
| 0.5 | 0.125" | 0.167" | 0.208" | 0.250" |
| 1 | 0.250" | 0.333" | 0.417" | 0.500" |
| 1.5 | 0.375" | 0.500" | 0.625 | 0.750" |
| 2 | 0.500" | 0.667" | 0.833" | 1.000" |
| 2.5 | 0.625" | 0.833" | 1.041" | 1.250" |
| 3 | 0.750" | 1.000" | 1.250" | 1.500" |
| 3.5 | 0.875" | 1.167" | 1.458" | 1.750" |
| 4 | 1.000" | 1.333" | 1.667" | 2.000" |
| 4.5 | 1.125" | 1.500" | 1.875" | 2.250" |
| 5 | 1.250" | 1.667" | 2.083" | 2.500" |
| 5.5 | 1.375" | 1.833" | 2.292" | 2.750" |
| 6 | 1.500" | 2.000" | 2.500" | 3.000" |
| 6.5 | 1.625" | 2.167" | 2.708" | 3.250" |
| 7 | 1.750" | 2.333" | 2.917" | 3.500" |
| 7.5 | 1.875" | 2.500" | 3.125" | 3.750" |
| 8 | 2.000" | 2.667" | 3.333" | 4.000" |
| 8.5 | 2.125" | 2.833" | 3.542" | 4.250" |
| 9 | 2.250" | 3.000" | 3.750" | 4.500" |
| 9.5 | 2.375" | 3.167" | 3.958" | 4.750" |
| 10 | 2.500" | 3.333" | 4.167" | 5.000" |
| 10.5 | 2.625" | 3.500" | 4.375" | 5.250" |
| 11 | 2.750" | 3.667" | 4.583" | 5.500" |
| 11.5 | 2.875" | 3.833" | 4.792" | 5.750" |
| 12 | 3.000" | 4.000" | 5.00" | 6.000" |
| 12.5 | 3.125" | 4.167" | 5.208" | 6.250" |
| 13 | 3.250" | 4.333" | 5.416" | 6.500" |
| 13.5 | 3.375" | 4.500" | 5.625" | 6.750" |
| 14 | 3.500" | 4.667" | 5.833" | 7.000" |
| 14.5 | 3.625" | 4.833" | 6.042" | 7.250" |
| 15 | 3.750" | 5.000" | 6.250" | 7.500" |
Submittals & Downloads
PDF - Roof pipe vent cover
Color and Material Options
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Flashing Color Options
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Flashing Color Options
Black Aluminum Steel
Charcoal Grey Aluminum Steel
Classic Bronze (Dark Bronze) Aluminum Steel
Medium Bronze Aluminum Steel
Coppertone (Faux Copper) Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Common Material Options for Roof Flashings
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
