Copper Bar Gutter Wedge for Gutter Hanger
For Hangers used with Half-Round Copper Gutters, K-Style and Box Gutters

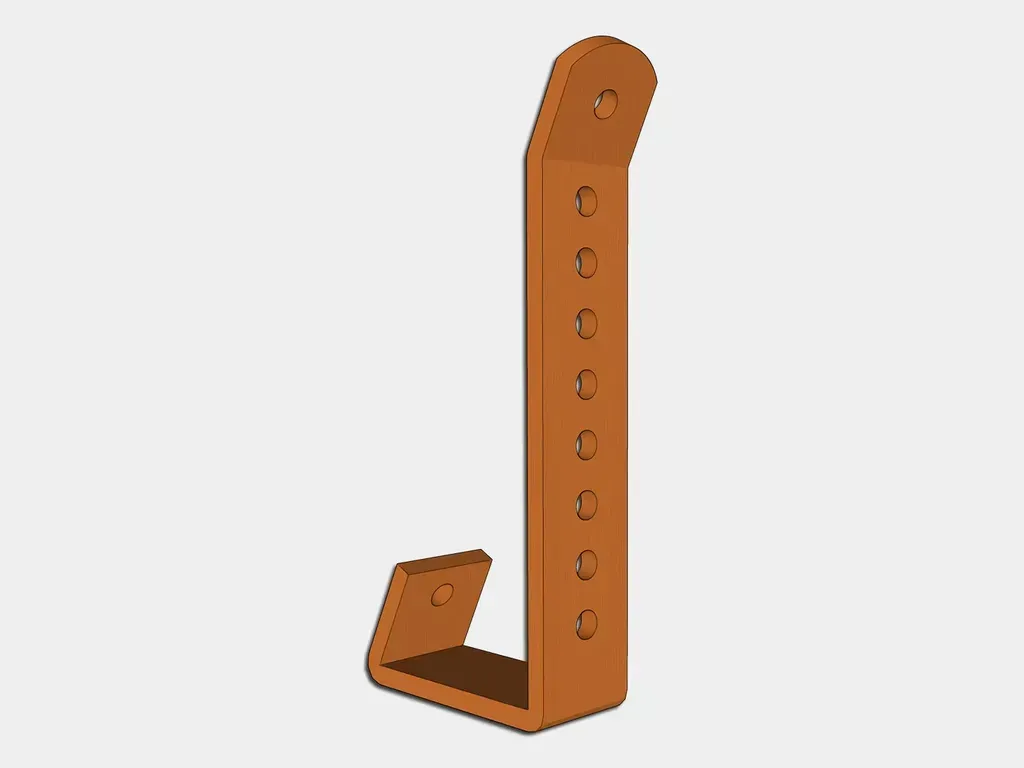

K&M's Gutter Wedge is manufactured from 3/16" copper bar stock. The dimensions and angles change along with the roof pitch in order to hang a gutter correctly.
A mounting hole is provided at the very top of the wedge and a optional hole is also provided at the back from sizes of pitch 3 and up.
This gutter wedge will work with most gutter hangers that can accept a 1/4" bolt for attachment through the back. It works
with our #15 half round gutter hanger and our
copper cross bar hanger.
Like our universal roof mounts and rafter mounts, our gutter wedge allows for 4.25" of total vertical pitch adjustments in 1/8" increments.
It comes with a 1/4" Stainless Steel bolt and locking nut.
It is important to note that all dimensions and angles assume that the fascia board is perpendicular to the roof line, meaning it measures 90° off the roof. This
should always be the case when the fascia is angled, however, it may not be, so please double checking before ordering.
When a hidden hanger is used (as the crossbar hanger in the examples shown), a hole will need to be drilled in the back of the gutter
to attach the hanger to the gutter wedge with the provided bolt.
Measuring the pitch
The pitch or the angle of a roof is calculated by how many inches it rises vertically for every 12 inches it extends horizontally.
For example, a roof that rises 6 inches for every 12 inches of horizontal run is called a 6 pitch or a 6-12 pitch.
If drawn on a piece of paper, this triangle would have a 26.57° angle off the horizontal line (the wall line). A different example is a 12-12 pitch, where the rise is 12" over a 12" span,
creating a 45° angle. A flat roof would have a 0 pitch.
Specifications
| K&M Gutter Wedge (INSIDE DIMENSIONS) | Internal Use | ||||||
|---|---|---|---|---|---|---|---|
| Roof Pitch | A | B | C | D | Stock | A1 | A2 |
| 1” | 1” | 4.5” | 0.375” | N/A | 5.875 | 5° | N/A |
| 2” | 1” | 4.5” | 0.75” | N/A | 6.25 | 9.5° | N/A |
| 3” | 1” | 4.5” | 0.937” | 0.75” | 7.187” | 15° | 105° |
| 4” | 1” | 4.5” | 1.313” | 1” | 7.813 | 19° | 109° |
| 5” | 1” | 4.5” | 1.687” | 1.313” | 8.5” | 23° | 113° |
| 6” | 1” | 4.5” | 2” | 1” | 8.5” | 27° | 117° |
| 7” | 1” | 4.5” | 2.437” | 1.687” | 9.625” | 30° | 120° |
| 8” | 1” | 4.5” | 2.75” | 1.375” | 9.625” | 24° | 124° |
| 9” | 1” | 4.5” | 3.125” | 1” | 9.625” | 37° | 127° |
| 10” | 1” | 4.5” | 3.5” | 2” | 11” | 40° | 130° |
| 11” | 1” | 4.5” | 3.875” | 1.625” | 11” | 42.5° | 132.5° |
| 12” | 1” | 4.5” | 4.25” | 1.25” | 11” | 45° | 135° |
| 13” | 1” | 4.5” | 4.625” | 1.25” | 11.375” | 47° | 137° |
| 14” | 1” | 4.5” | 4.937” | 1.25” | 11.687” | 49° | 139° |
| 15” | 1” | 4.5” | 5.313” | 1.25” | 12.062 | 51° | 141° |
| 16” | 1” | 4.5” | 5.687” | 1.25” | 12.437” | 53° | 143° |
| 17” | 1” | 4.5” | 6” | 1.25” | 12.75” | 55° | 145° |
| 18” | 1” | 4.5” | 6.437” | 1.25” | 13.187” | 56° | 146° |
Submittals & Downloads
Color and Material Options
Common Material Options for Gutter Hangers
Copper
Lead Coated Copper
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
