Vented Ridge Cap Roof Flashing Metal - 10' Length
Flashing metal used on tile, slate, wood, shingle and metal roofs. Available in 24 gauge Galvalume Plus.

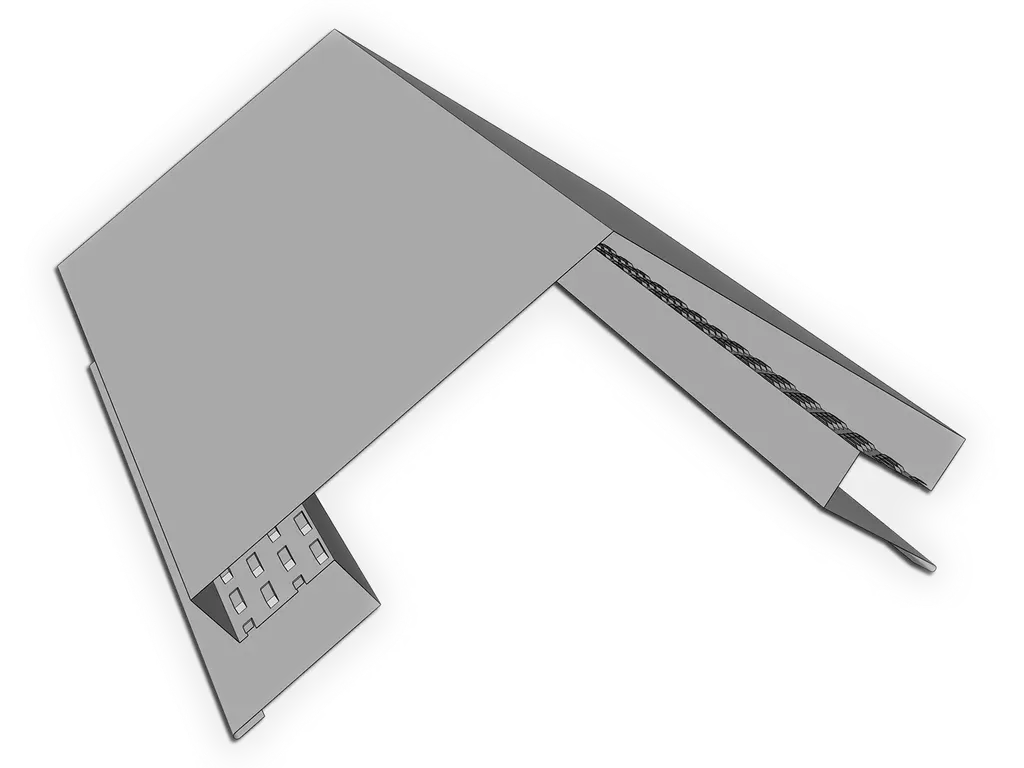

A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.
A Vented Ridge Cap can provide proper ventilation to an attic, where heat from the house builds up. It is crucial for the air vapors and
moisture to have a way out of the house to prevent mold and premature all around deterioration, including damage to the roofing material, such as shingles for example.
Because of the intricacy in manufacturing this item, no dimension can be changed.
We can however, make a 3 piece system with different dimensions. For a quote,
please send us a drawing of your intended profile with dimensions via email.
Specifications
- Material: 24 ga. Galvalume Plus
- 6.72" of net free area per linear foot
- 10' Lengths
- Made to Order
- Made in the USA
| Stock Size | (A) | (B) | (C) Vented Portion | (D) | (E) | (F) Closed Hem |
|---|---|---|---|---|---|---|
| 24" | 6.25" | 0.813" | 1.437" | 0.875" | 2.25" | 0.375" |
All dimensions are approximate with ~1/8" tolerance.
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
