L Shape Roof Drip Edge Flashing Metal - 10' Length
Edge metal used on rubber, tile, slate and shingle roofs. Available in 16 oz. and 20 oz. Copper.

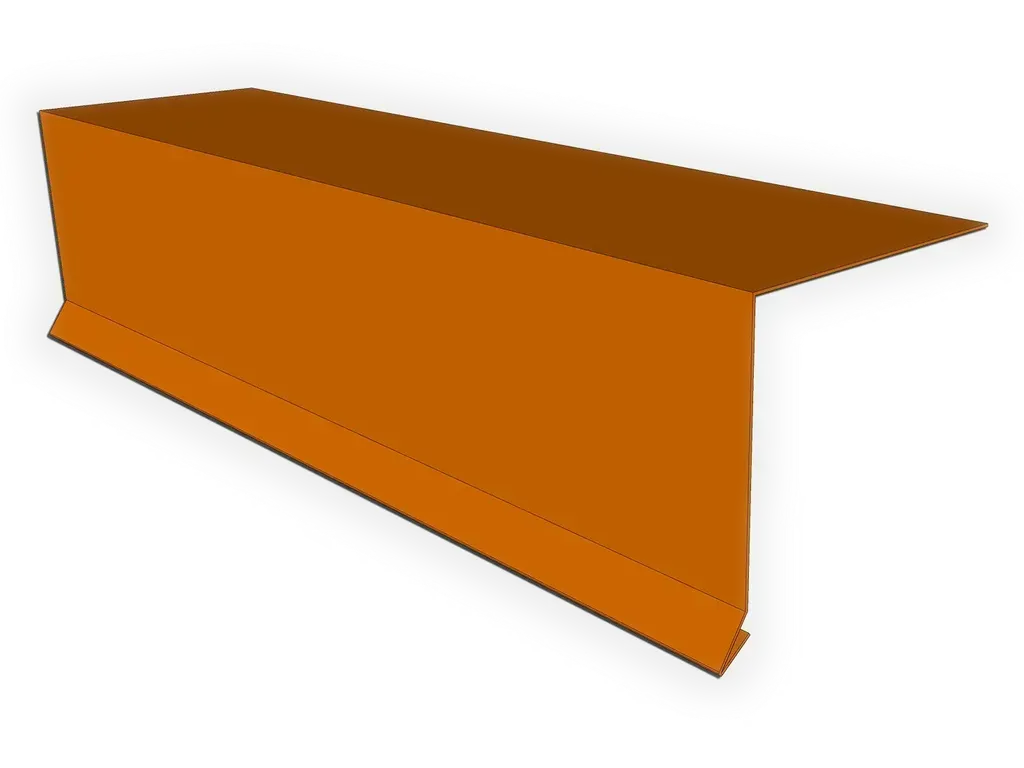

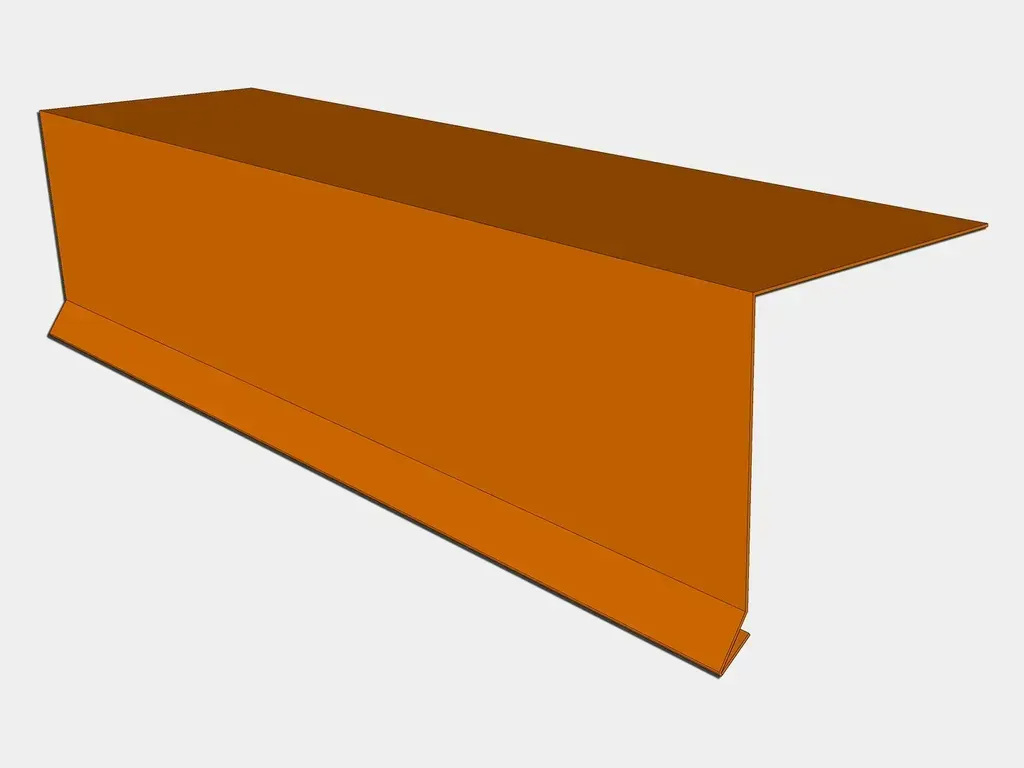

This simple drip edge profile, also known as "baldy cleat" is used on rubber roofs, slate and shingle roofs. It can be used to help direct water towards a gutter for example.
The name drip edge comes from the kick portion of this profile, at the very bottom, responsible for kicking the water away from the fascia board.
That portion is essentially a drip edge.
Other common names for our drip edge profiles include 2"x2" drip edge, 3"x3" drip edge, etc.
You may order custom profiles through this page, browse our store for other profiles or send us an email
for a quote on something even more intricate.
Specifications
- Material: 16 oz. and 20 oz. Copper
- 10' Lengths
- Made to Order
- Made in the USA
| (H) Nominal Size | Material | (A) Roof | (B) Face | (C) Kick | (D) Hem | Stock (Total Material) |
|---|---|---|---|---|---|---|
| 1.5" | Copper, Freedom Gray, Lead Coated Copper | 2.125" | 1" | 0.5" | 0.375" | 4" |
| 1.5" | Aluminum, Steel, Galvalume and Stainless Steel | 2.125" | 1" | 0.5" | 0.375" | 4" |
| 3" | Copper, Freedom Gray, Lead Coated Copper | 2.625" | 2.5" | 0.5" | 0.375" | 6" |
| 3" | Aluminum, Steel, Galvalume and Stainless Steel | 2.625" | 2.5" | 0.5" | 0.375" | 6" |
| 4" | Copper, Freedom Gray, Lead Coated Copper | 2.825" | 3.5" | 0.5" | 0.375" | 7.2" |
| 4" | Aluminum, Steel, Galvalume and Stainless Steel | 3.625" | 3.5" | 0.5" | 0.375" | 8" |
| 6" | Copper, Freedom Gray, Lead Coated Copper | 2.625" | 5.5" | 0.5" | 0.375" | 9" |
| 6" | Aluminum, Steel, Galvalume and Stainless Steel | 3.225" | 5.5" | 0.5" | 0.375" | 9.6" |
| 8" | Copper, Freedom Gray, Lead Coated Copper | 3.625" | 7.5" | 0.5" | 0.375" | 12" |
| 8" | Aluminum, Steel, Galvalume and Stainless Steel | 3.625" | 7.5" | 0.5" | 0.375" | 12" |
All dimensions are approximate with ~1/8" tolerance.
Ordering Instructions
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
