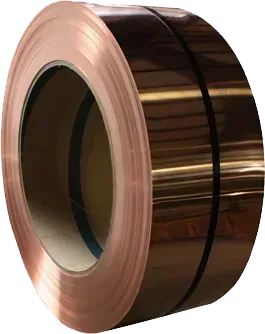

This copper coil is the same material that K&M uses on its gutter and roofing products.
The product normally has a 20" arbor, but some
11.875" and 15" coils may have a 16" arbor. If you have a special requirement, please let us know and wee will inform you
whether we can accommodate that or not.
These coils are "roofing" and "gutter" coils. They are used for gutters, roof flashings, edge metal, metal roof panels, etc.
Specifications
Width: 11.875", 15", 18", 20", 24", 36" and 48".
CDA Alloy: 110
Description: Copper Roofing Coil
Hardness: 1/8 - 1/4 Hard
Availability
All but 36" and 48" are typically in stock.
Extended lead times for 36" and 48" coils.
16 oz. Copper Coil Yields
Coil Width
Lbs. / Foot
25'
50'
100'
250'
500'
FULL COIL
11.875"
1
25 lbs.
50 lbs.
100 lbs.
250 lbs.
500 lbs.
~1,000 lbs. / ~1,000'
15"
1.25
31.25 lbs.
62.5 lbs.
125 lbs.
312.5 lbs.
625 lbs.
~1,000 lbs. / ~800'
18"
1.5
37.5 lbs.
75 lbs.
150 lbs.
375 lbs.
750 lbs.
~1,000 lbs. / ~666.67'
20"
1.667
41.67 lbs.
83.33 lbs.
166.67 lbs.
416.67 lbs.
833.33 lbs.
~1,000 lbs. / ~600'
24"
2
50 lbs.
166.67 lbs.
333.33 lbs.
833.33 lbs.
1666.67 lbs.
~1,000 lbs. / ~500'
36"
3
75 lbs.
150 lbs.
300 lbs.
750 lbs.
1500 lbs.
~10,000 lbs. / ~3,333'
48"
4
100 lbs.
200 lbs.
400 lbs.
1000 lbs.
2000 lbs.
~10,000 lbs. / ~2,500'
20 oz. Copper Coil Yields
Coil Width
Lbs. / Foot
25'
50'
100'
250'
500'
FULL COIL
11.875"
1.25
31.25 lbs.
62.5 lbs.
125 lbs.
312.5 lbs.
625 lbs.
~1,000 lbs. / ~800'
15"
1.5625
39.06 lbs.
78.13 lbs.
156.25 lbs.
390.63 lbs.
781.25 lbs.
~1,000 lbs. / ~640'
18"
1.875
46.88 lbs.
93.75 lbs.
187.50 lbs.
468.75 lbs.
937.5 lbs.
~1,000 lbs. / ~533.33'
20"
2.0833
52.08 lbs.
104.17 lbs.
208.33 lbs.
520.83 lbs.
1041.67 lbs.
~1,000 lbs. / ~480'
24"
2.5
62.5 lbs.
125 lbs.
250 lbs.
625 lbs.
1250 lbs.
~1,000 lbs. / ~400'
36"
3.75
93.75 lbs.
187.5 lbs.
375 lbs.
937.5 lbs.
1875 lbs.
~10,000 lbs. / ~2,666.67'
48"
5
125 lbs.
250 lbs.
500 lbs.
1250 lbs.
2500 lbs.
~10,000 lbs. / ~2,000'
Gutter Coil Sizes
10" - Normally used on 5" Half Round Reverse Bead gutter machines.
11.75", 11.875", 12" - Used for 5" K-Style gutter machines and 6" Reverse Bead Half Round gutter
machines. Typically, machines are adjustable and can use anything from 11.75" to 12".
13.125" - A custom coil typically used for 4" plain round or corrugated round downspout.
15" - Used for 6" K-Style gutter
18", 20" and 24" - Normally used for metal roof panels.
36" and 48" - Master coils - typically cut down to sheet stock or slit into narrower widths.
Material Finish:

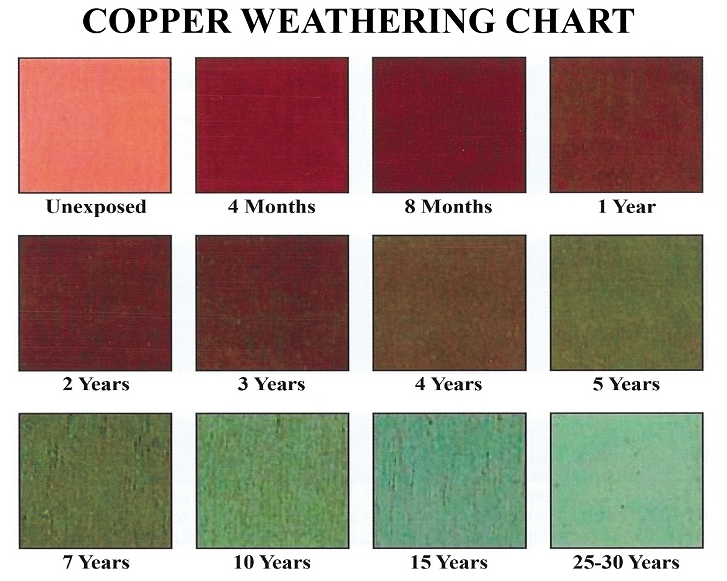

I understand that copper comes with a mill finish. It has no protective film. Surface scratches and some discoloration if present are NORMAL. As any copper product, it will patina over time.
Price Agreement:
I understand due to price volatility, K&M will contact me for approval if there’s a discrepancy in price and if so, I will have the opportunity to cancel the order or pay the balance to proceed.
Agreement:
I understand this product is non-returnable.
Lead Times:
I understand that FULL COILS (~1000 lbs.) are normally READILY AVAILABLE, however any other amount needs to be cut to order and will have a longer lead time.
