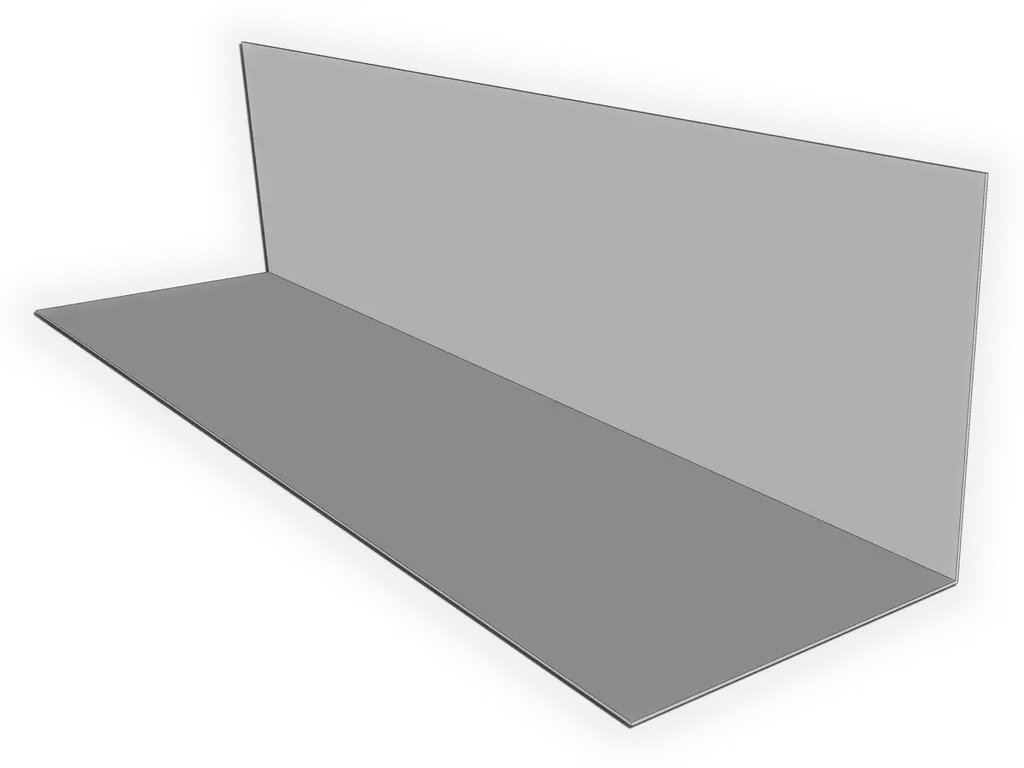

90° Roof Flashing Angle - 10' Length
Edge metal available in 24 Gauge Galvalume Plus.
This simple flashing profile, also simply known as "angle" or "L-shape" is commonly used on any type roofing.
Typically, L flashings are used in sidewall adjacent to roofs or end wall applications to prevent water infiltration, but are also used on random
flashings, chimney flashings, sometimes even cut up to be used as step flashings.
Custom dimensioned profiles can be ordered through this page. Other profiles are available on our webstore. For quotes on more intricate flashings,
please send us an email.
Specifications
- Material: 24 Gauge Galvalume Plus
- 10' Lengths
- Made to Order
- Made in the USA
| Nominal Size | Material | (A) | (B) | Angle | Stock (Total Material) |
|---|---|---|---|---|---|
| 3x3 | Copper, Freedom Gray, Lead Coated Copper | 3" | 3" | 45°/90° | 6" |
| 4x5 | Copper, Freedom Gray, Lead Coated Copper | 4" | 5" | 45°/90° | 9" |
| 6x6 | Copper, Freedom Gray, Lead Coated Copper | 6" | 6" | 45°/90° | 12" |
| 2x2 | Aluminum, Steel, Galvalume and Stainless Steel | 2" | 2" | 45°/90° | 4" |
| 3x3 | Aluminum, Steel, Galvalume and Stainless Steel | 3" | 3" | 45°/90° | 6" |
| 4x4 | Aluminum, Steel, Galvalume and Stainless Steel | 4" | 4" | 45°/90° | 8" |
| 6x6 | Aluminum, Steel, Galvalume and Stainless Steel | 6" | 6" | 45°/90° | 12" |
All dimensions are approximate with ~1/8" tolerance.
Ordering Instructions
Submittals & Downloads
Color and Material Options
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
