#16 Roof Mount Half Round Gutter Aluminum Bar Hanger

Product SKU :

10.95 10.950000000000001 USD 10.95

10.95

/ ea
  • Size
  • Color
  • Roof bend
  • Bend dimension (pre-bent hangers only)
  • Roof pitch (pre-bent hangers only)
  • Pre-bent hangers
  • Powder Coating Disclosure (Please read in item description)

This combination does not exist.

ADD TO CART

Select Variant Min. Quantity Price per Unit

Terms and Conditions
30-day money-back guarantee
Lead Time: 7.0 Days

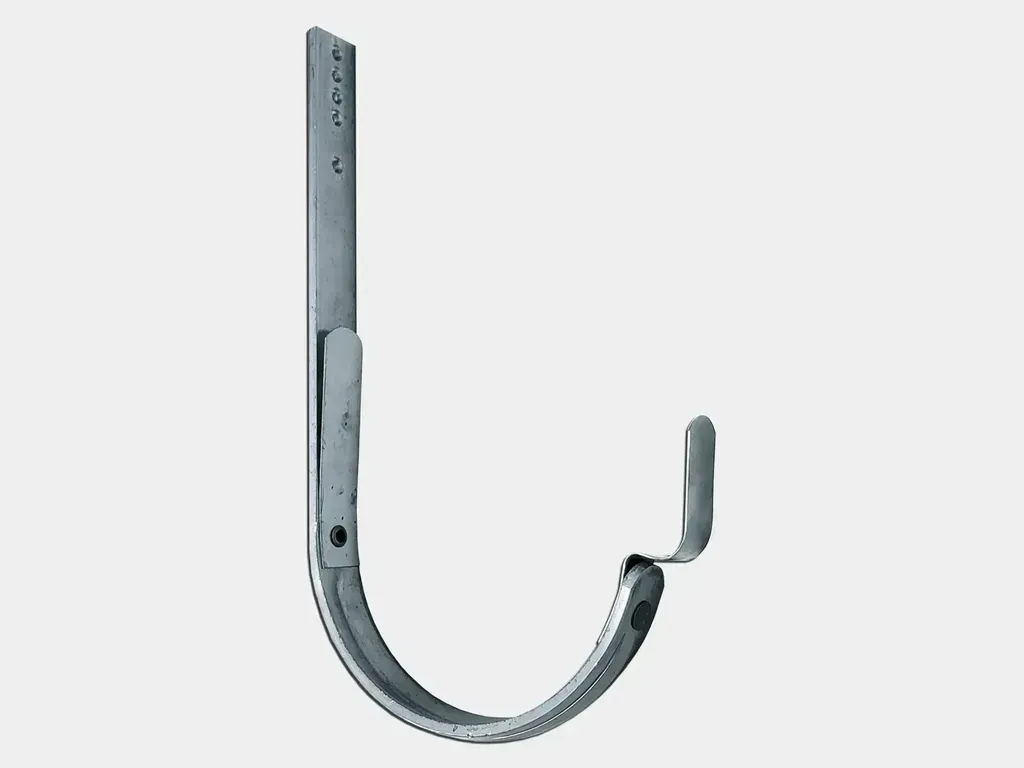

3/16" Aluminum bar roof mount hanger for half round gutter

The #16 Heavy Duty Hanger is our strongest Roof Mount Hanger available for half round gutter

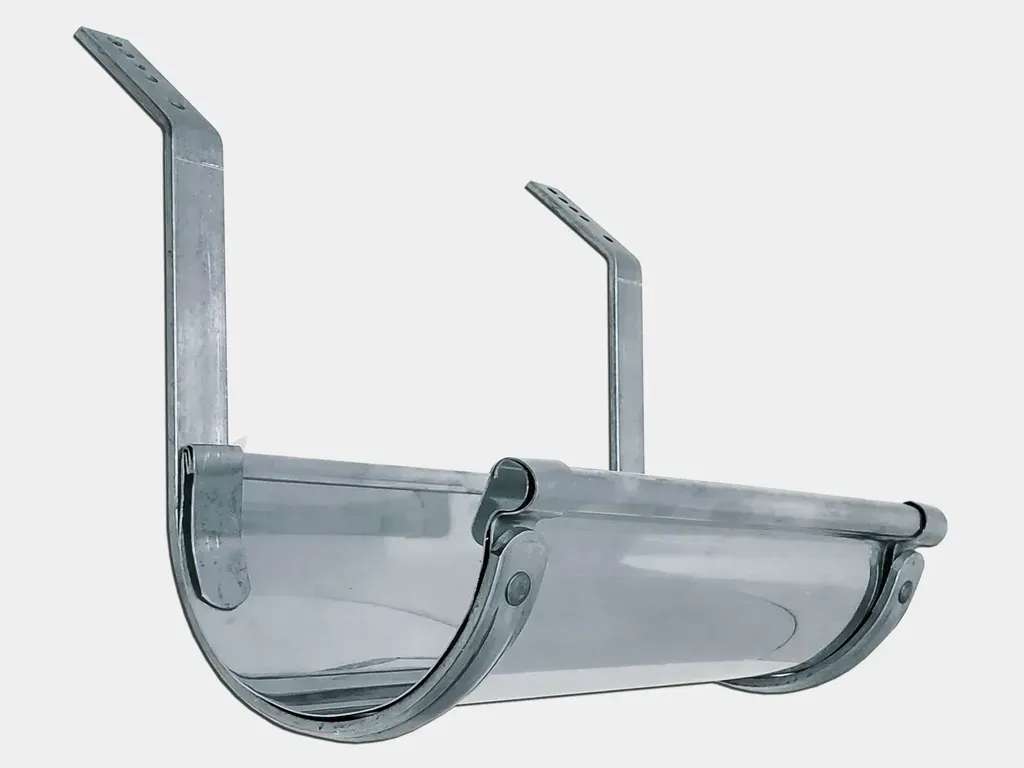

This hanger is formed with 3/16" thick bar with a stiffing wedge. Fold-over tabs are used to secure the hanger to a half-round aluminum, galvalume or steel gutter. Please, fold tabs over slowly, by hand to avoid paint chipping. Say goodbye to reattaching lost and missing spring clips!
Mounts directly to the roof. Standard Spacing 24" to 36" on center, depending on application / expected snow loads.

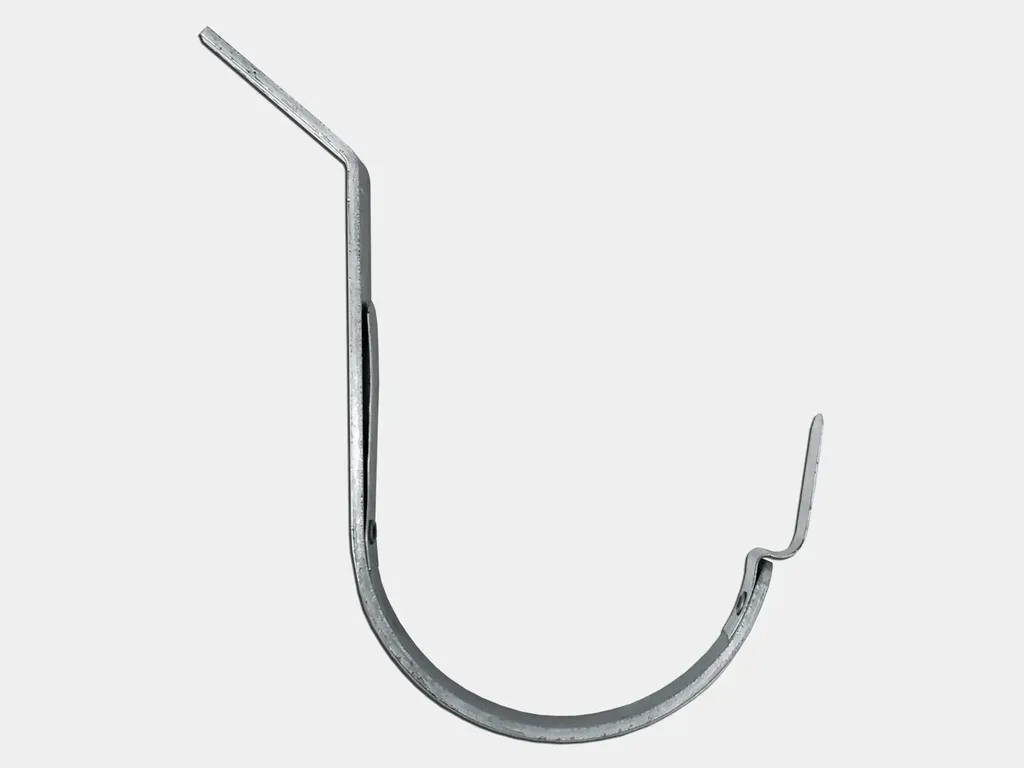

May be purchased straight, where you bend the roof mounting portion of the hanger on site to the desired length and pitch, or we can pre bend it for you.

Works with Reverse Bead and Traditional Bead Gutters

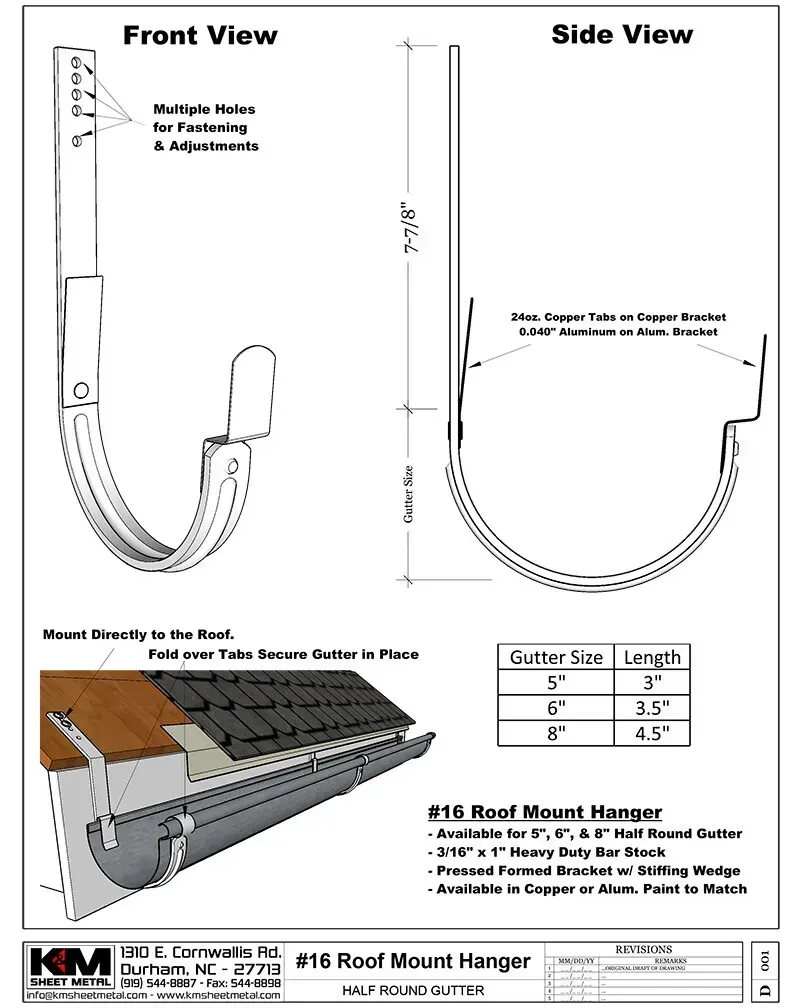

Specifications

  • Heavy Duty 3/16" x 1" aluminum bar stamped hanger
  • Available for 5", 6", 7", 7.6" (Euro) and 8" Half-Round Gutters
  • Fold over tabs hold gutter securely in place
  • Features several roof mounting holes
  • Available in Copper and Aluminum (Mill Finish or Painted to Match)

Powder Coating Disclosure

Our colored hangers are powder coated, which provides a very durable, long lasting finish. Every batch is tested and a significant percentage of the tabs are hand bent prior to leaving our facility to ensure high quality and no chipping when bent in the field. However, on rare occasions (as per our customer's feedback) there has been some chipping of the paint at the point where the metal tab is bent around the gutter. Although this does not affect the performance of the hanger, K&M does offer for purchase a touch up spray paint to remediate this issue.
This chipping can also occur at the point of bending if the gutter hanger or roof mount hanger is bent during installation. Although this is normally not visible, we recommend that hangers be purchased pre-bent and that a can of touch up spray paint be purchased with your hanger order.

Submittals & Downloads
Color and Material Options
0.027" Aluminum Material Colors to Match
Black 0.027

Black

Dark bronze 0.027

Dark Bronze

Musket Brown 0.027

Musket Brown

Royal brown 0.027

Royal Brown

Almond 0.027

Almond

Linen 0.027

Linen

30  white 0.027

Low Gloss White (30°)

80  white 0.027

High Gloss White (80°)

Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Material Powder Coated Color Options to Match
Black kynar aluminum

Black Aluminum

Matte black kynar steel

Matte Black Steel

Black kynar aluminum and galvanized steel

Charcoal Aluminum Steel

Dark bronze aluminum and galvanized steel

Dark Bronze Aluminum Steel

Medium bronze aluminum and galvanized steel

Medium Bronze Aluminum Steel

Copper penny aluminum and galvanized steel

Copper Penny Aluminum Steel

Almond aluminum and galvanized steel

Almond Aluminum Steel

Bone white aluminum and galvanized steel

Bone White Aluminum Steel

Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Material Powder Coated Color Options to Match
Kynar Black aluminum and steel

Black Aluminum Steel

Kynar Charcoal Grey aluminum and steel

Charcoal Grey Aluminum Steel

Kynar Classic Bronze aluminum and steel

Classic Bronze (Dark Bronze) Aluminum Steel

Kynar Medium Bronze aluminum and steel

Medium Bronze Aluminum Steel

Kynar Coppertone Bronze aluminum and steel

Coppertone (Faux Copper) Aluminum Steel

Kynar Matte Almond aluminum and steel

Almond Aluminum Steel

Kynar Bone White aluminum and steel

Bone White Aluminum Steel

Common Material Options for Gutter Hangers
Mill finish aluminum

Mill Finish Aluminum

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
