Ridge Cap Roof Flashing Metal - 10' Length
Flashing metal used on tile, slate, wood, shingle and metal roofs. Available in several colors. 0.032" Kynar® Aluminum.

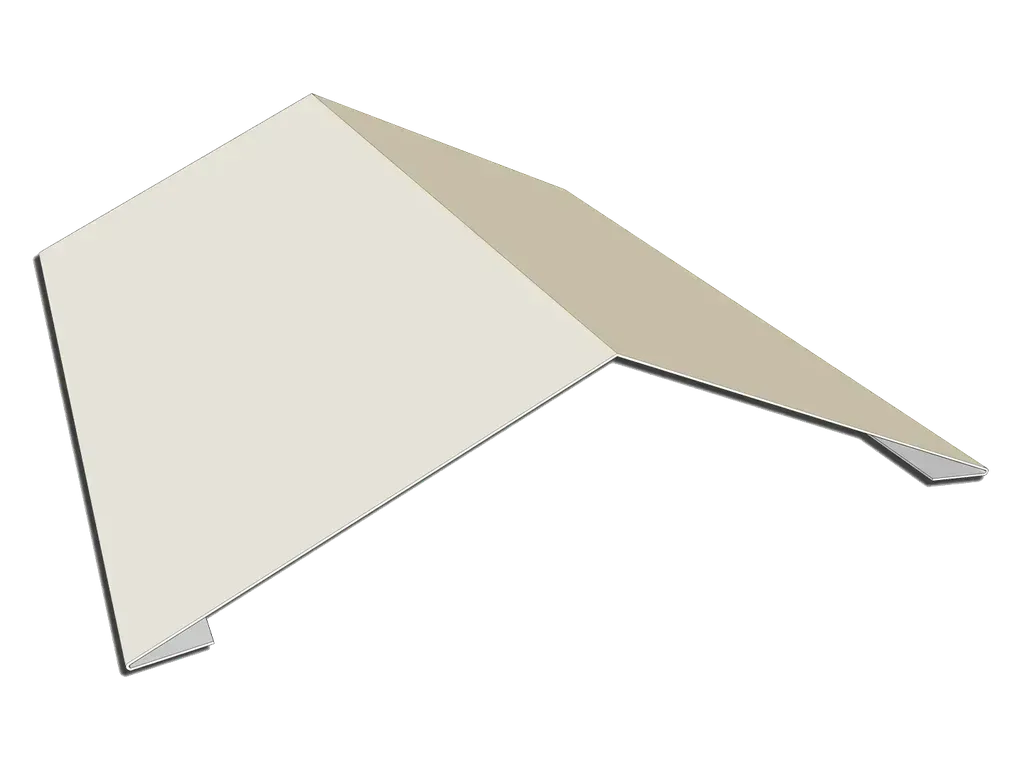

A Ridge Cap is a piece of roof flashing metal placed at the very peak of the roof, where the two roof slopes meet, creating the ridge.
This is the very last step on installing a roof system. It is not only a decorative portion of a roof, but it creates a leak proof water directional barrier.
This simple profile can be used with mostly any roof system, but its design comes from its usage on metal roof systems, where it hooks onto J channels on both sides of the ridge.
Custom profiles and dimension changes can be quoted via email.
Specifications
Material: 0.032" Kynar® Aluminum
10' Lengths
Made to Order
Made in the USA

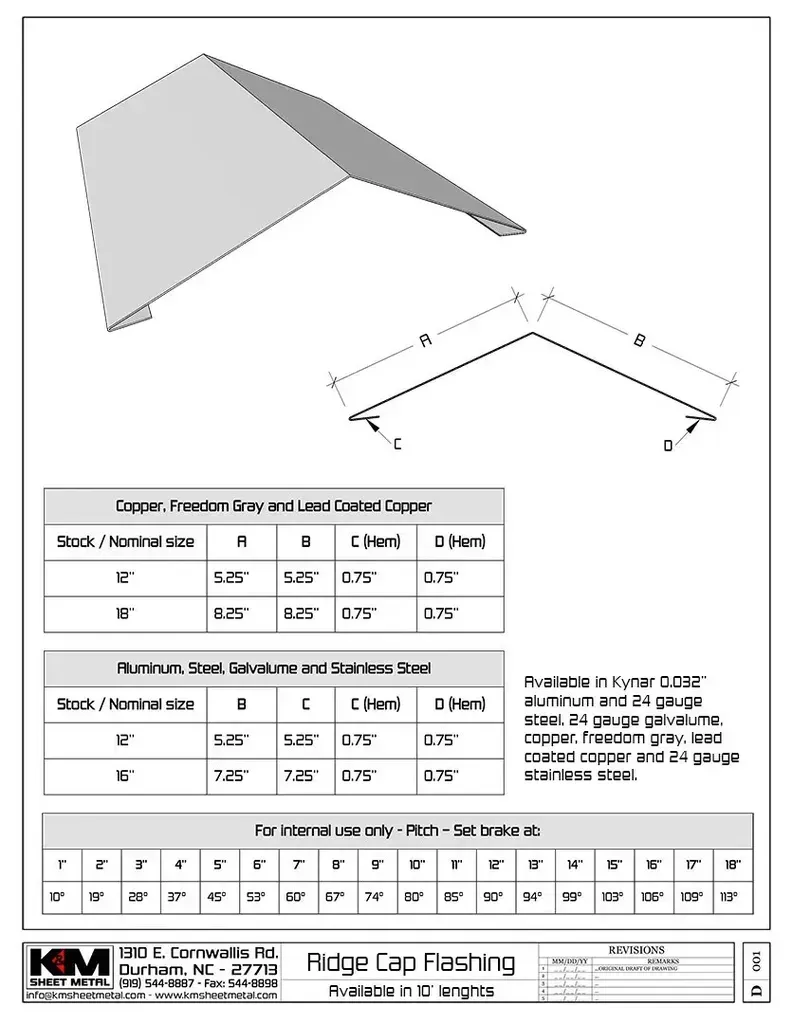

Size
Material
(A)
(B)
(C)
(D)
Stock
Small
Copper, Freedom Gray, Lead Coated Copper
5.25"
5.25"
0.75"
0.75"
12"
Large
Copper, Freedom Gray, Lead Coated Copper
8.25"
8.25"
0.75"
0.75"
18"
Small
Aluminum, Steel, Galvalume and Stainless Steel
5.25"
5.25"
0.75"
0.75"
12"
Large
Aluminum, Steel, Galvalume and Stainless Steel
7.25"
7.25"
0.75"
0.75"
16"
Roof Ridge Angle
Roof Pitch
Roof Slope
Ridge Angle
Finished Flashing Angle (Measured on the inside)
1"
4.76°
9.52°
170° (170.48°)
2"
9.46°
18.92°
161° (161.08°)
3"
14.04°
28.08°
152° (151.92°)
4"
18.43°
36.86°
143° (143.14°)
5"
22.62°
45.24°
135° (134.76°)
6"
26.57°
53.14°
127° (126.86°)
7"
30.26°
60.52°
119° (119.48°)
8"
33.69°
67.38°
113° (112.52°)
9"
36.87°
73.74°
106° (106.26°)
10"
39.81°
79.62°
100° (100.38°)
11"
42.51°
85.02°
95° (94.98°)
12"
45°
90°
90°
13"
47.29°
94.58°
85° (85.42°)
14"
49.4°
98.8°
81° (81.2°)
15"
51.34°
102.68°
77° (77.32°)
16"
53.13°
106.26°
74° (73.74)
17"
54.78°
109.56°
70° (70.44°)
18"
56.31°
112.62°
67° (67.38°)
All dimensions are approximate with ~1/8" tolerance.
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
The most popular roof flashing metal colors in Galvalume Steel and Aluminum Kynar® are Bone White and Classic Bronze (Dark Bronze) Click here for a full list of Kynar® metal colors
Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum Steel
Charcoal Grey Aluminum Steel
Classic Bronze (Dark Bronze) Aluminum Steel
Medium Bronze Aluminum Steel
Coppertone (Faux Copper) Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
The most popular roof flashing metal colors in Galvalume Steel and Aluminum Kynar® are Bone White and Classic Bronze (Dark Bronze) Click here for a full list of Kynar® metal colors
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
