0.032" Aluminum Kynar Residential Box Gutter

0.032" Aluminum Kynar Residential Box Gutter

Product SKU :

$ 73.95 73.95 USD $ 73.95

$ 73.95

Size
Color
Tapered End

This combination does not exist.

ADD TO CART BUY NOW

Terms and Conditions
30-day money-back guarantee
Lead Time: 14.0 Days

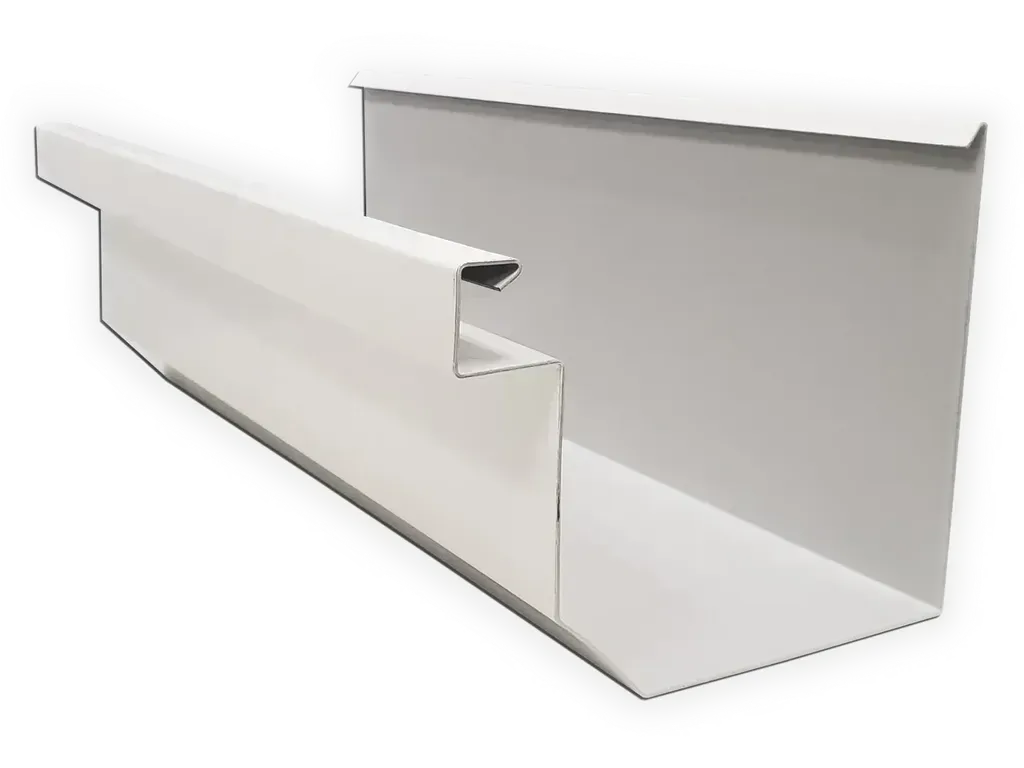

Residential Aluminum Box Gutter

Style D - Available in several colors. 0.032" Kynar® Aluminum.

A Box Gutter profile designed for modern residences, that is very common and easily found in large industrial & commercial applications as well. The advantage of box gutters, is due to their shape, which allows for a much larger water carrying capacity.
Box Gutters are bent in a brake, and therefore are offered in 10' lengths. For this reason, these gutters can also be customized, with added roof flanges, for example.
Our profiles are made to fit the K-Style and Box gutter hangers we sell and will work with most K hangers. Please refer to the submittal to ensure this will work with your favorite hanger.
K&M also supplies gutter guards / screens for all gutter profiles we offer along with all accessories needed for your gutter system.
Custom lengths, sizes and heavier gauges may be available. Please contact us for pricing.

Tapered Gutter Ends

Want to make your installation easier and achieve a cleaner look? We now offer this gutter with tapered ends. One side of the gutter is made slightly smaller, allowing it to fit inside the larger end of another gutter without the need to notch or snip away material. This not only provides a more seamless appearance but also strengthens the lap joint, making it easier to seal or solder (for materials that can be soldered).
Smaller on the Left Side: for installations where the gutter is pitched toward the left for drainage. This means the left side is lower than the right when viewed from the front. This setup is ideal for installations where water flows to the left, allowing the gutter to be installed in a water-directional manner to help avoid leaks.
Smaller on the Right Side: for installations where the gutter is pitched toward the right for drainage. This means the right side is lower than the left when viewed from the front. This configuration suits installations where water flows to the right, again supporting a directional fit to reduce the risk of leaks.
Depending on your installation, some minor on-site modifications may still be necessary.

Joining gutter lengths / seams

To put 2 lengths of gutter together, simply cut back the front bead / lip of the gutter 1" or more depending on your needs. Do the same for the hem in the back if present. Cut where needed to create tabs. Overlap the 2 lengths of the gutter and join them by soldering if possible, or with zip screws / rivets and sealer if not.
Coupling pieces can be custom manufactured if needed. Keep in mind that using a coupling piece like a cover plate gives the appearance of 2 seams. Splice plates can also be manufactured. Unlike cover plates, these sit on the inside of the gutter, giving the appearance of one seam, like overlapping 2 gutter lengths.

Benefits of aluminum gutters

Cost effective
Ease to work with

Specifications

Size: 5", 6", 7" and 8"
Length: 10' & 20'
Material Thickness: 0.032" Aluminum

Availability

Made to order

Submittals & Downloads

PDF - Box Gutter - Residential - Style D

PDF - Tapered Gutter Direction Example

Color and Material Options

The most popular gutter colors in Kynar® Aluminum are Bone White and Black

Kynar® Aluminum & Galvalume Steel

Black

Matte Black
**24 Gauge Steel Only

Dark Bronze

Medium Bronze

Almond

Bone White

Copper Penny

Charcoal

Special Order Colors

Special Order colors require a minimum 2000 sqf. purchase for coil. Most colors have a 1 sheet minimum per order. Extra freight charges apply.

Patina Green

Teal

Hemlock Green

Forest Green

Hartford Green

Evergreen

Hunter Green

Arcadia Green

Military Blue

Berkshire Blue

Graphite

Interstate Blue

Slate Blue

Award Blue

Burnished Slate

Aged Bronze

Mansard Brown

Burgundy

Terra Cotta

Cardinal Red

Colonial Red

Midnight Bronze

Musket Gray

Sierra Tan

Sandstone

Slate Gray

Cityscape

Granite

Stone White

Anodic Clear

Silversmith

Silver

Champagne

Zinc

Weathered Zinc

Aged Copper

Weathered Steel

More Information

Kynar coated material is supplied by Petersen (Pac-Clad).
Colors are mostly available in 0.032″ and 0.040″ aluminum as well as 24 gauge galvalume (steel).
Some colors are available in 0.050″ and 0.063″ aluminum as well as 22 gauge galvalume.
Material available in sheet or coil format.
Pac Clad Sheets measure 48″ x 120″. No minimum purchase, but fees apply.
Standard coil widths are 20″ and 24″. Coils can be cut to any custom with from 48″ and under. Fees apply. 2000 sqf minimum purchase.
To learn more about Kynar® PVDF coated materials, please click here.
