[CC301-5002] 24 Gauge Stainless Steel 304 2B finish Lighthouse Chimney Pothttps://docs.kmsheetmetal.com/[cc301-5002]-24-gauge-stainless-steel-304-2b-finish-lighthouse-chimney-potLighthouse 8-Sided Chimney Pot – Nautical-inspired design with integrated ventilation slots. Works with direct vent fireplaces. Extends and protects flues. Copper, stainless steel & more. Laser-cut & soldered. Made in USA. Order Online!CC301-5002
Available in Copper, Lead Coated Copper, Freedom Gray, Stainless Steel and Powder Coated Stainless Steel

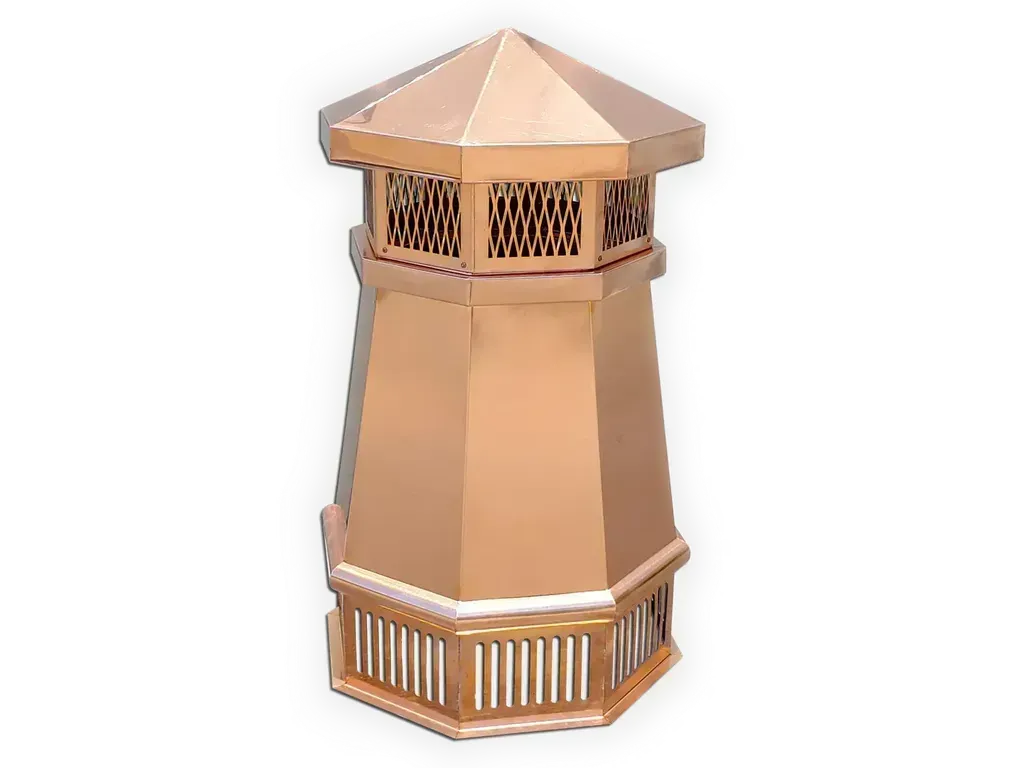

Inspired by the look of lighthouses, this chimney pot features an eight sided flat base. It can be used to protect or simply to extend your chimney flue.
Slots are cut out from the actual stock used to manufacture this item for
ventilation.
It can be installed to the top of your chimney or to the top of a chimney chase cover (click here to order it separately).
This chimney topper is cut by laser and because of the intricate design, we only offer this Chimney Top in materials that can be soldered.
Custom designs, sizes and different materials may be available. Please contact us for pricing. Made in the USA.
Stainless Steel Powder Coated to Match 0.027" Aluminum Material Colors
Black
Dark Bronze
Musket Brown
Royal Brown
Almond
Linen
Low Gloss White
High Gloss White
Looking for a custom color not listed?
Please EMAIL your request with all information including the metal manufacturer for a quote.
The most popular colors to match 0.027" aluminum material are Dark Bronze and Low Gloss White Click here for a full list of 0.027" 0.027" aluminum colors
Stainless Steel Powder Coated to Match Kynar Pac Clad Standard Aluminum Galvalume Steel Material Colors
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
The most popular chimney cap colors to match are Black and Dark Bronze Click here for a full list of Kynar metal colors
Pac Clad Standard 0.032" Kynar Aluminum and 24 Gauge Galvalume Steel Common Chimney Caps Color Options
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Looking for a custom color not listed?
Please EMAIL your request with all information including the metal manufacturer for a quote.
The most popular chimney cap colors in Galvalume Steel and Aluminum Kynar are Black and Dark Bronze Click here for a full list of Kynar metal colors
Common Material Options for Chimney Caps
Copper
Pre Patina Copper
Freedom Gray
Lead Coated Copper
Stainless Steel
Zinc
Copper is the most popular metal for chimney pots. It is offered in 16 oz. and 20 oz.
Freedom Gray (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
The most popular chimney pot colors to match are Black and Dark Bronze
Stainless Steel Powder Coated to Match 0.027" Aluminum Material Colors
Black
Dark bronze
Musket Brown
Royal brown
Almond
Linen
Low Gloss (30°) White
High Gloss (80°) White
Stainless Steel Powder Coated to Match Kynar Pac Clad Standard Aluminum Galvalume Steel Material Colors
Black Aluminum
Matte Black Steel
Dark Bronze
Medium Bronze
Almond
Bone White
Copper Penny
Charcoal
Unpainted Stocked Materials
Bonderized Steel
Copper
Freedom Gray
Galvalume Plus
Lead Coated Copper
Mill Finish Aluminum
Stainless Steel
More Information
Bonderized Steel: Also known as Paint Grip. Offered in 26 gauge G90. 24 gauge available as special order.
Copper is commonly stocked in 3′ x 10′ and 4’x10′ sheets, 11.75″, 15″ 18″, 20″, 24″ (16 oz. or 20 oz.) and 36″ coil (16 oz.). 24 oz. and 32 oz. are available in 3′ x 10′ sheets. Our typical stock is 1/8 to 1/4 hard copper, supplied by Aurubis, Hussey and Revere.
We also stock 1″ x 3/16″ x 12′ bar stock. Other sizes as well as 48 oz. copper are available as special order items.
Freedom Gray is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Coils are available as a special order item with a 1000 lb. minimum. Freedom gray is a Tin / Zinc coated copper from Revere Copper.
Galvalume Plus is an Acrylic coated metal, also known as Acrylume. K&M utilizes Acrylume E Plus™ supplied by US Steel.
Galvanized Steel: Offered in 26 gauge G90. 24 gauge available as special order.
Lead Coated Copper is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Special order items include 3′ x 8′ sheets and 12″, 15″, 18″, 20″ and 24″ coil stock. A minimum of 1000 lbs. is required for a coil order.
Mill finish Aluminum is commonly stocked in 4′ x 10′ sheets of 0.032″ and 0.040″.
Stainless Steel in normally available in 24 and 26 gauge 4′ x 10′ sheets, 304 alloy 2B finish. Other thickness, and finishes such as #4, #8 and 2D available as special order items.
Copper is the most popular metal for chimney pots. It is offered in 16 oz. and 20 oz.
Freedom Gray (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Looking for a custom color not listed?
Please EMAIL your request with all information including the metal manufacturer for a quote.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
Choosing the right material
Chimney Cap Material: Copper, Stainless Steel, Aluminum or Galvalume (Steel)?
Colored Materials: The first thing to consider is whether something in colors is desired. If so, that narrows choices down to either Kynar
Aluminum or Kynar Galvalume (steel). Kynar-based PVDF are coatings formulated to resist sun and weather damage.
Steel (Galvalume) - Available in colors: Zinc Aluminum coated Steel for higher corrosion resistance, coatted with Kynar colors.
Comes in the same colors as aluminum with a more rigid substrate, however, it is also heavier.
Galvalume materials have self healing properties where cut or scratched.
Since this material is steel based, it is not an ideal choice for coastal (saltwater or brackish water) environments. For those, aluminum is the better choice.
Aluminum - Available in colors: Offering the same colors and look as Kynar coated galvalume steel at a lighter weight. Unlike galvalume, this can
be used in costal environments.
Galvalume Plus (Acrylume): Zinc/Aluminum coated steel with an acrylic coating. Galvalume has a similar look to galvanized steel while
being vastly more corrosion resistant. Galvalume materials also have self healing properties where cut or scratched.
Copper: Our most popular material. Copper does not rust and has antimicrobial properties. It is widely used in any environment.
Copper can can be soldered or welded, which makes it a much better choice for now and future repairs. Copper comes with a raw finish that will
start to patina immediately once outdoors, turning partly brown the day after the installation and mostly brown within a month.
Although there's no precise way to determine due to many factors, copper will typically start to turn green within 25-35 years.
Freedom Gray: This copper based material offers all the same advantages as copper with a tin/zinc coating that will develop a mature slate
gray patina after around one to three years of weather exposure.
Lead Coated Copper: Copper that has been dipped in lead. A traditional material that offers all the same advantages as copper.
Because of the lack of solubility, not only lead coated copper prevents most if not all staining, it's environmentally safe.
Stainless steel: A trade off between color choices and sturdiness/longevity. While stainless steel withstands the test of time,
it is limited to its mill finish (2B finish) look. The stainless steel we typically offer is a 304 alloy (most common). This alloy should not
be used in coastal environments. A 316 marine alloy can be offered as a special order material.
Zinc: Special order. A traditional look at the cost of a more malleable, lighter material. While easier to work with,
zinc is soft, and not always (depending on size and configuration) the best choice for a chimney cap. It can be offered as a special order in
either a raw or other finishes.
