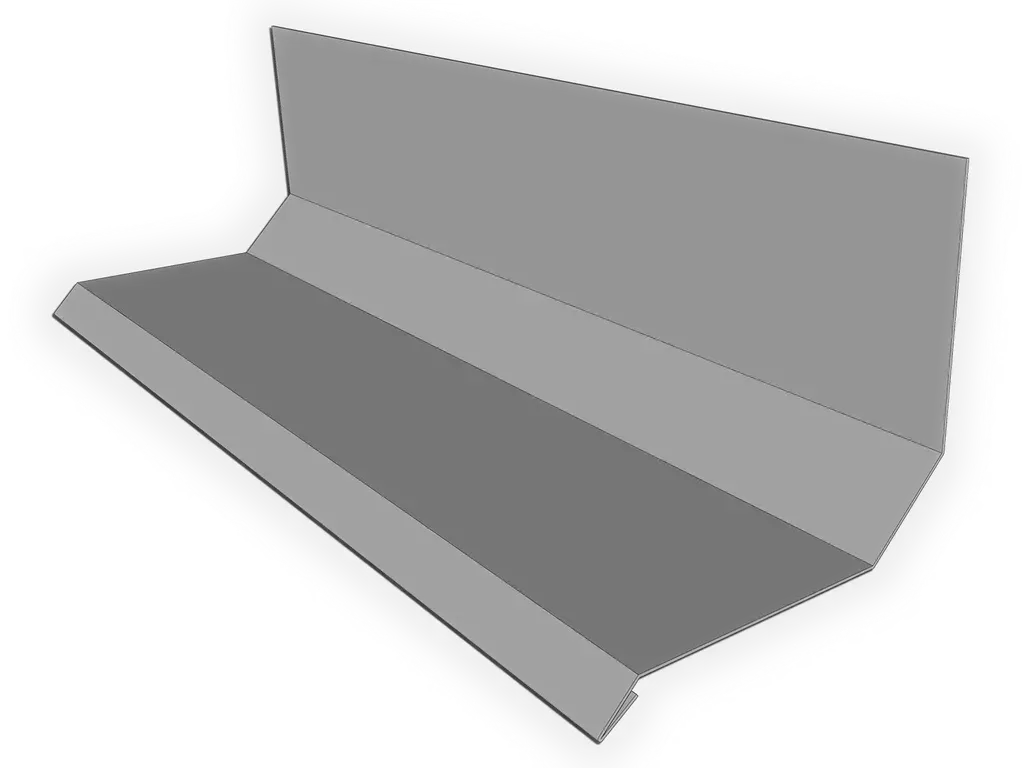

Thorough Wall Masonry Flashing Metal with Drip Edge - 10' Length
Available in Stainless Steel, Galvanized Steel and other materials as special order.
This simple thru wall flashing profile is used to divert moisture trapped inside a wall to the outside in an effort to avoid damage.
Our masonry flashing features a 0.5" kick with a 0.375" closed hem but can be customized to different sizes.
The most commonly used material for this style masonry drip edge is 26 gauge 304 2B finish, but 316 alloy as well as 24 gauge or even thicker
may be purchased as a special order.
For modified profiles, send us an email with a sketch for a quote.
2 -Material
Stretch-out: Pick the appropriate selection for the amount of stock material needed. Example: If adding all dimensions of your custom profile (A+B+C+D) equals 11.5",
you'll pick the next size up, for example, 12" stock. Provide dimensions needed and angles if needed on field 3.
3 - This is where you'll enter dimensions for fields A, B, C, D & E. You may also upload a sketch and leave this field blank.
A and B are standard at 0.375" and 0.5".
4 - If you prefer to email a sketch you can use this field, otherwise, leave blank.
Either field 3 or 4 will be required.
5 - If there isn't enough information a sketch will be required for manufacturing.
Material Options for Roof Flashing Metal and Edge Metal
Stainless Steel
Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
Product custom made to order:
I understand this product is custom made to order and cannot be returned. All dimensions are approximate. Custom profiles may be rejected due to limitations in bending.
