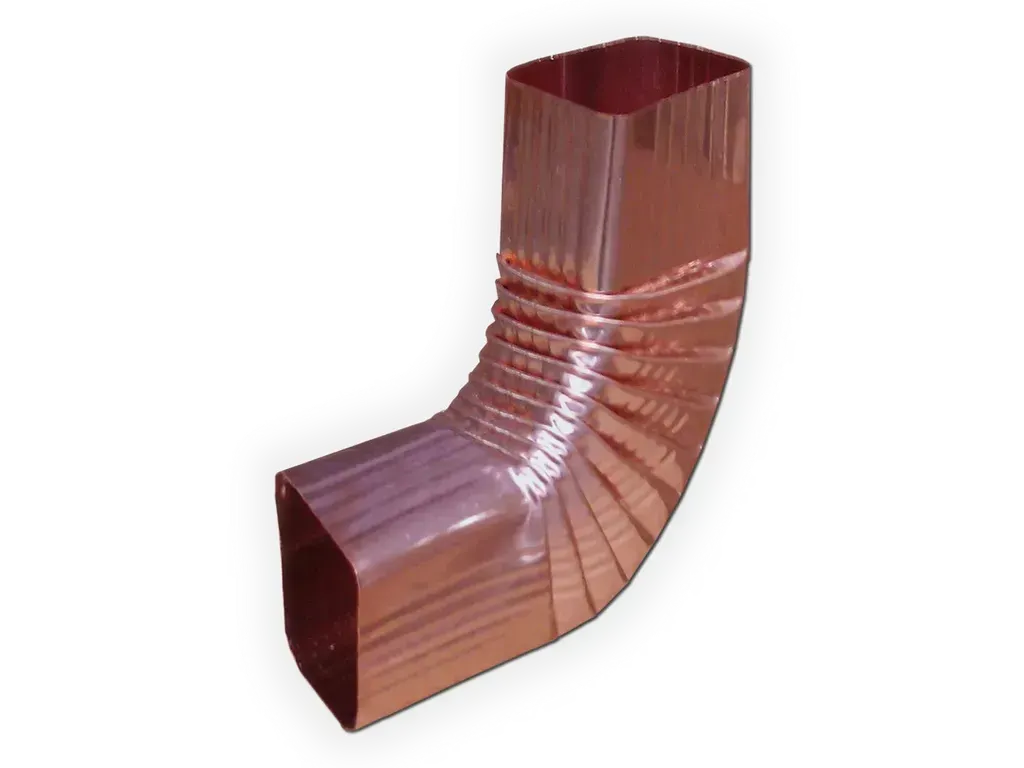

Square Corrugated Copper (B) Elbow
Available in 16 oz. Copper.
Elbows are fittings designed to change the downspout direction in pre specified angles.
A "B" style elbow refers to an elbow that, when attached to a downspout, angles the downspout sideways in reference to a building.
Our square corrugated elbows are available in the colors below and match our downspouts.
The square corrugated downspout and elbow system is commonly used with k-style and box gutters, but can be used with any other gutter system.
The non crimped end easily fits over the outside of an outlet or the crimped end of a downspout. We also sell
crimpers for the downspout portion not crimped (if it was trimmed for example).
Custom colors and materials are available. Please contact us for pricing.
Specifications
- Size: 2" x 3" & 3" x 4"
- Material Thickness: 16 oz. Copper
- Angle: #0 (30°), #1 (45°), #2 (60°), #3 (75°) and #4 (90°)
Submittals & Downloads
No downloads available.
Color and Material Options
Common Material Options for Elbows
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
