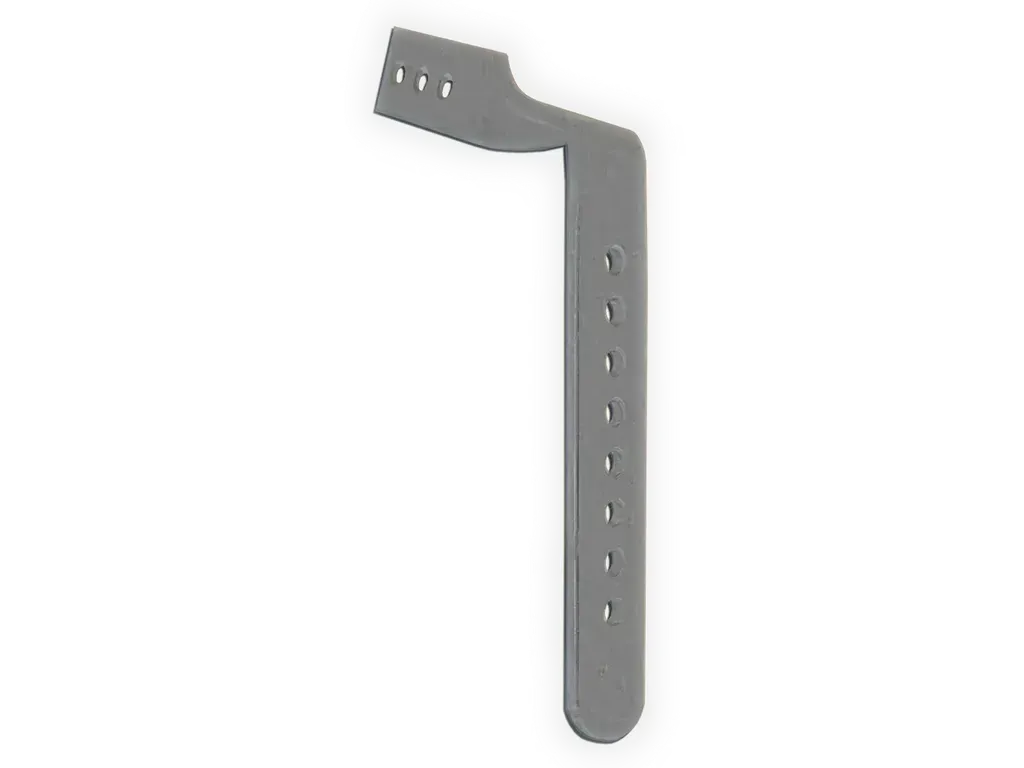

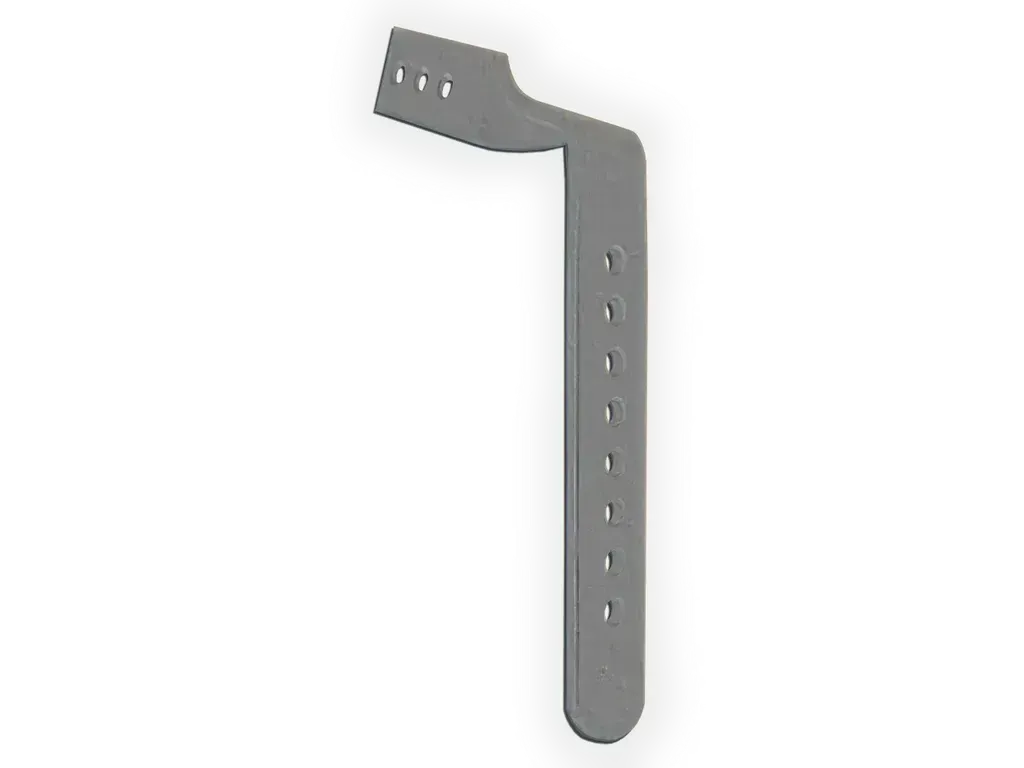

Universal Lead Coated Copper Rafter Mount for Gutter Hanger
For Hangers used with Half-Round Copper Gutters, K-Style and Box Gutters
The Universal Rafter Mount is designed to be used with our
#15 half round gutter hanger on roofs with exposed rafters
for gutter installations.
Our rafter mount is always bent to a pitch 7 (60°) but it can be used on any roof pitch: simply rotate the rafter mount to
adjust to your roof pitch for correct mounting.
It can also be used with other gutter profiles and gutter hangers as long as those can be attached to one of the 1/4" holes provided in our rafter mount via a bolt.
Just make sure it'll work for your application before ordering.
The rafter mount is formed from heavy duty 3/16" bar stock material.
Like our Universal Roof Mounts and Gutter Wedges, the Universal Rafter Mount allows for 4.25" of total vertical pitch adjustments in 1/8" increments.
It comes with a 1/4" Stainless Steel bolt and locking nut.
When a hidden hanger is used (as the crossbar hanger in the examples shown), a hole will need to be drilled in the back of the gutter
to attach the hanger to the rafter mount with the provided bolt.
Specifications
Submittals & Downloads
Color and Material Options
Common Material Options for Gutter Hangers
Copper
Lead Coated Copper
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
