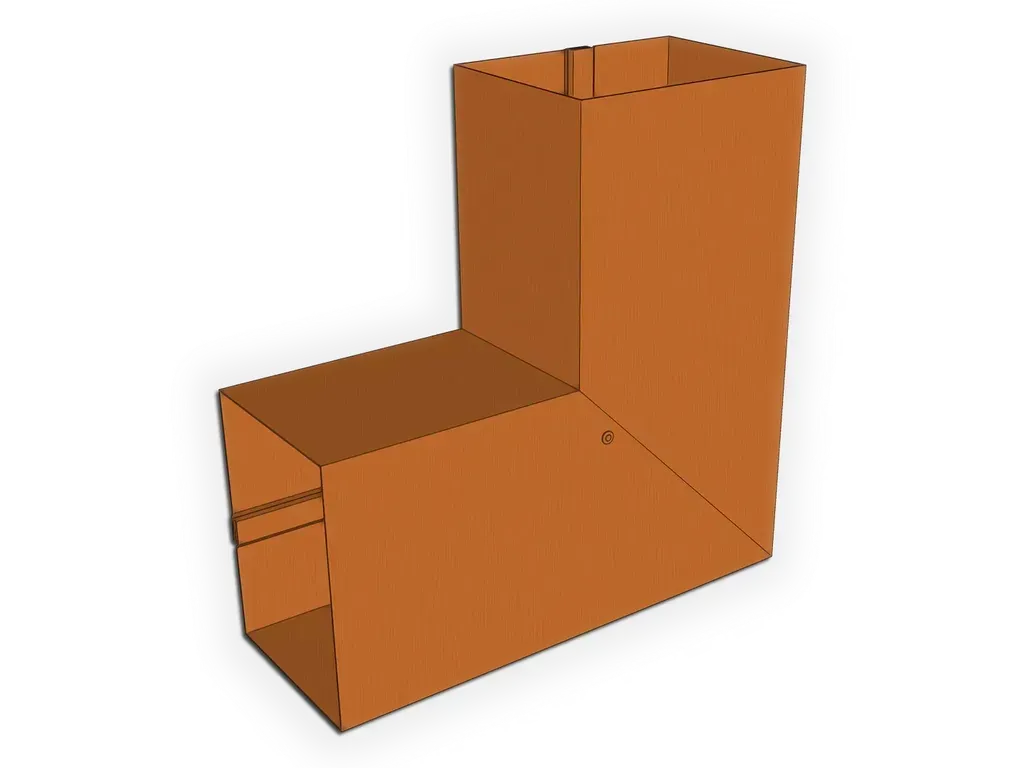

Plain Square Copper Elbow
Available in 16 oz. and 20 oz. Copper.
Elbows are fittings designed to change the downspout direction in pre specified angles.
A "B" style elbow refers to an elbow that, when attached to a downspout, angles the downspout sideways in reference to a building.
Plain Square Elbows are commonly paired with K-Style and Box Gutters, but not necessarily. Typically 2"x3" is selected for 5" K Style and 3"x4" is used with 6" K Style.
The non crimped end easily fits over the outside of an outlet or the crimped end of a downspout. We also sell
crimpers for the downspout portion not crimped (if it was trimmed for example).
Custom colors and materials are available. Please contact us for pricing.
Specifications
- Size: 2" x 3", 3" x 4", 4" x 5" & 4" x 6"
- Material Thickness: 16 oz. Copper
- Angle: #0 (30°), #1 (45°), #2 (60°), #3 (75°) and #4 (90°)
- Custom sizes: 3" x 3", 4" x 4", 5" x 5", 6" x 6" and others available as custom orders
Submittals & Downloads
PDF - 3"x4" Plain Smooth Elbow
Color and Material Options
Common Material Options for Elbows
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
