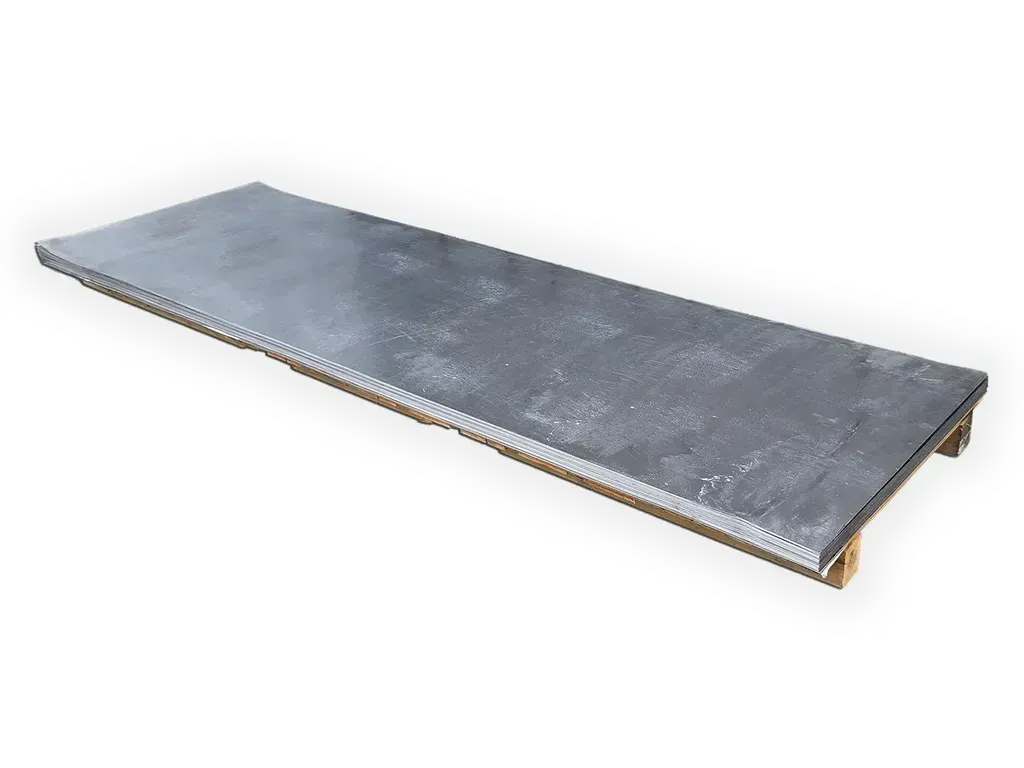

Freedom Gray Sheets - 16 oz. and 20 oz.

FreedomGray Satin TZ-Alloy™ for Gutter, Flashing and Roofing

Available in 16 oz. and 20 oz.

These Revere Freedom Gray Copper sheets are the same material that K&M uses on its gutter and roofing products.
This material comes with a satin, tin/zinc finish.
These sheets are "roofing", "flashing" and "gutter" sheets. Typically used for gutters products, roof flashings, edge metal, metal roof panels, etc.

Specifications

  • Width: 3'x10'
  • CDA Alloy: 110
  • Description: Lead Coated Copper Sheets (LCC)
  • Hardness: 1/8 - 1/4 Hard

Availability

  • 16 oz. 3'x10' are typically in stock
  • 20 oz. 3'x10' are typically in stock
  • All others are special order materials

Weight Yields of Copper Sheets, Prior to Coating

Nominal Weight Weight Per Sq Foot Nearest Gauge Number Thickness - Inches (mm) Minimum Thickness - Inches (mm)
16 oz. 1.00 lb. 23 0.0216" (0.549 mm) 0.0204" (0.518 mm)
20 oz. 1.25 lb. 21 0.0270" (0.686 mm) 0.0258" (0.655 mm)
24 oz. 1.50 lb. 20 0.0323" (0.820 mm) 0.0308" (0.782 mm)
32 oz. 2.00 lb. 17 0.0431" (1.09) 0.0411" (1.04 mm)
48 oz. 3.00 lb. 14 0.0646" (1.64) 0.0621" (1.58 mm)
SH3610-1201
  1. Products
  2. Freedom Gray Sheets - 16 oz. and 20 oz.

Freedom Gray Sheets - 16 oz. and 20 oz.

Product SKU :
Helpful Crowd review badge icon

$ 476.93 476.93 USD $ 476.93

$ 0.00

/ ea
  • Material Thickness
  • Width
  • Length
  • Material Finish
  • Price Agreement
  • Agreement
This combination does not exist.

ONLINE LIMIT: 20 SHEETS - Please contact us for larger quantities.

Maximum Qty 20

ADD TO CART BUY NOW
Width: 36"
Length: 120"
Material Finish: I understand that freedom gray copper has a natural, non-uniform finish and may display variations, marks, and tonal differences that will evolve over time.
Price Agreement: I understand due to price volatility, K&M will contact me for approval if there’s a discrepancy in price and if so, I will have the opportunity to cancel the order or pay the balance to proceed.
Agreement: I understand this product is non-returnable.

Terms and Conditions
30-day money-back guarantee
Lead Time: ~10.0 Days

FreedomGray Satin TZ-Alloy™ for Gutter, Flashing and Roofing

Available in 16 oz. and 20 oz.

These Revere Freedom Gray Copper sheets are the same material that K&M uses on its gutter and roofing products.
This material comes with a satin, tin/zinc finish.
These sheets are "roofing", "flashing" and "gutter" sheets. Typically used for gutters products, roof flashings, edge metal, metal roof panels, etc.

Specifications

  • Width: 3'x10'
  • CDA Alloy: 110
  • Description: Lead Coated Copper Sheets (LCC)
  • Hardness: 1/8 - 1/4 Hard

Availability

  • 16 oz. 3'x10' are typically in stock
  • 20 oz. 3'x10' are typically in stock
  • All others are special order materials

Weight Yields of Copper Sheets, Prior to Coating

Nominal Weight Weight Per Sq Foot Nearest Gauge Number Thickness - Inches (mm) Minimum Thickness - Inches (mm)
16 oz. 1.00 lb. 23 0.0216" (0.549 mm) 0.0204" (0.518 mm)
20 oz. 1.25 lb. 21 0.0270" (0.686 mm) 0.0258" (0.655 mm)
24 oz. 1.50 lb. 20 0.0323" (0.820 mm) 0.0308" (0.782 mm)
32 oz. 2.00 lb. 17 0.0431" (1.09) 0.0411" (1.04 mm)
48 oz. 3.00 lb. 14 0.0646" (1.64) 0.0621" (1.58 mm)

Submittals & Downloads

PDF - Freedom Gray Copper – Revere (Spec Sheet)

Color and Material Options

Unpainted Stocked Materials

Bonderized Steel

Bonderized Steel

Copper

Copper

Freedom gray

Freedom Gray

Galvalume

Galvalume Plus

Galvanized Steel

Galvanized Steel

Lead coated copper

Lead Coated Copper

Mill finish aluminum

Mill Finish Aluminum

Stainless steel

Stainless Steel

More Information

Bonderized Steel: Also known as Paint Grip. Offered in 26 gauge G90. 24 gauge available as special order.

Copper is commonly stocked in 3′ x 10′ and 4’x10′ sheets, 11.75″, 15″ 18″, 20″, 24″ (16 oz. or 20 oz.) and 36″ coil (16 oz.). 24 oz. and 32 oz. are available in 3′ x 10′ sheets. Our typical stock is 1/8 to 1/4 hard copper, supplied by Aurubis, Hussey and Revere.
We also stock 1″ x 3/16″ x 12′ bar stock. Other sizes as well as 48 oz. copper are available as special order items.

Freedom Gray is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Coils are available as a special order item with a 1000 lb. minimum. Freedom gray is a Tin / Zinc coated copper from Revere Copper.

Galvalume Plus is an Acrylic coated metal, also known as Acrylume. K&M utilizes Acrylume E Plus™ supplied by US Steel.

Galvanized Steel: Offered in 26 gauge G90. 24 gauge available as special order.

Lead Coated Copper is commonly stocked in 3′ x 10′ sheets of 16 oz. and 20 oz. Special order items include 3′ x 8′ sheets and 12″, 15″, 18″, 20″ and 24″ coil stock. A minimum of 1000 lbs. is required for a coil order.

Mill finish Aluminum is commonly stocked in 4′ x 10′ sheets of 0.032″ and 0.040″.

Stainless Steel in normally available in 24 and 26 gauge 4′ x 10′ sheets, 304 alloy 2B finish. Other thickness, and finishes such as #4, #8 and 2D available as special order items.

Downloads / Color Charts

 PDF – Acrylume E Plus Coated Sheet Steel (Data Sheet)
 PDF – Aluminum – Alcoa (SDS)
 PDF – Copper (ASTM B370 Building Spec Sheet)
 PDF – Copper – Revere (Spec Sheet)
 PDF – Copper – Revere (MSDS)
 PDF – Freedom Gray Copper – Revere (Spec Sheet)
 PDF – Lead Coated Copper (ASTM B101 02 Building Spec Sheet)
 PDF – Stainless Steel – Outokumpu (Data Sheet)

 PDF – Expanded Aluminum Metal Flattened
 PDF – Expanded Copper Metal Flattened

Looking for a custom color not listed? Please EMAIL your request with all information including the metal manufacturer for a quote.

Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
