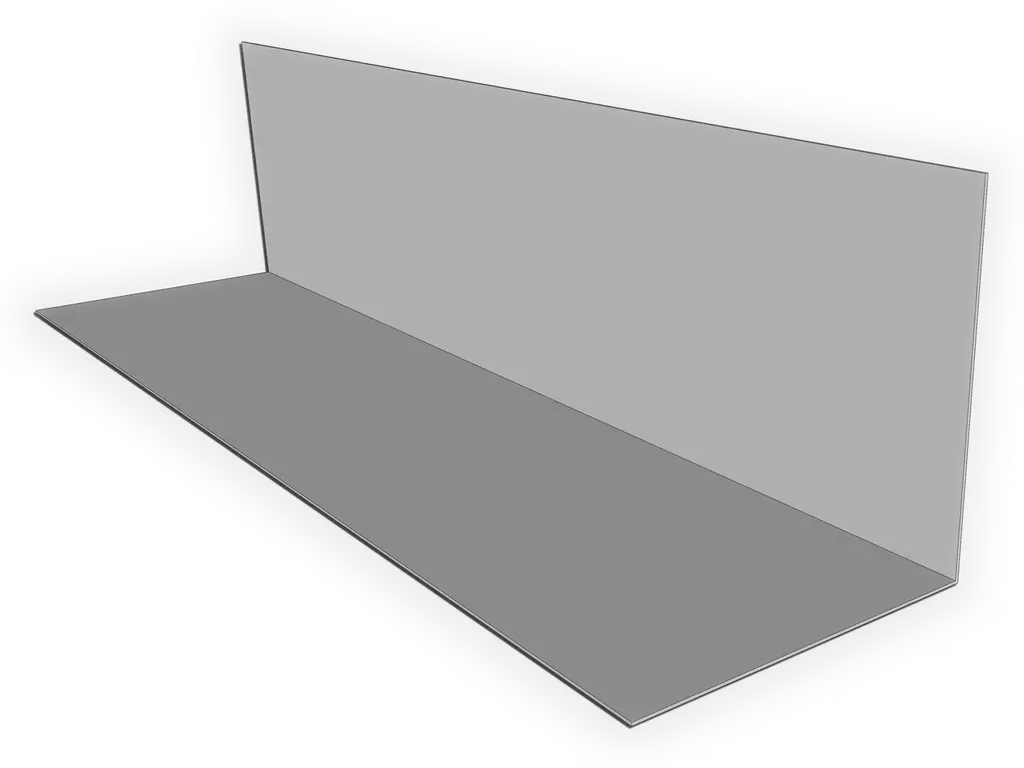

This simple flashing profile, also simply known as "angle" or "L-shape" is commonly used on any type roofing.
Typically, L flashings are used in sidewall adjacent to roofs or end wall applications to prevent water infiltration, but are also used on random
flashings, chimney flashings, sometimes even cut up to be used as step flashings.
Custom dimensioned profiles can be ordered through this page. Other profiles are available on our webstore. For quotes on more intricate flashings,
please send us an email.
Specifications
Material: 24 Gauge Galvalume Plus
10' Lengths
Made to Order
Made in the USA
Nominal Size
Material
(A)
(B)
Angle
Stock (Total Material)
3x3
Copper, Freedom Gray, Lead Coated Copper
3"
3"
45°/90°
6"
4x5
Copper, Freedom Gray, Lead Coated Copper
4"
5"
45°/90°
9"
6x6
Copper, Freedom Gray, Lead Coated Copper
6"
6"
45°/90°
12"
2x2
Aluminum, Steel, Galvalume and Stainless Steel
2"
2"
45°/90°
4"
3x3
Aluminum, Steel, Galvalume and Stainless Steel
3"
3"
45°/90°
6"
4x4
Aluminum, Steel, Galvalume and Stainless Steel
4"
4"
45°/90°
8"
6x6
Aluminum, Steel, Galvalume and Stainless Steel
6"
6"
45°/90°
12"
All dimensions are approximate with ~1/8" tolerance.
Ordering Instructions
1 - Pick your material/color. For other materials navigate back to
Edge Metal.
2 - Pick your profile dimensions. These are provided in the chart above. If a custom dimensioned profile is desired,
pick the appropriate stock size: If adding all dimensions of your custom profile (A+B) equals
6.5", you'll pick the next dimension up, in this case 9" or 8" depending on the material.
3 - Pick your angle. 90° standard.
4 - This is where you'll enter dimensions for fields
A and B if custom dimensioned profile is desired, as well as the custom inside angle, otherwise leave blank.
5 - If you prefer to email a sketch you can use this field, otherwise, leave blank.
Material Options for Roof Flashing Metal and Edge Metal
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Stainless Steel
Zinc
Copper is the most popular metal roofing and flashing metal. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
