L Shape Roof Drip Edge Flashing Metal - 10' Length
Edge metal used on rubber, tile, slate and shingle roofs. Available in several colors. 24 Gauge Kynar® Steel.

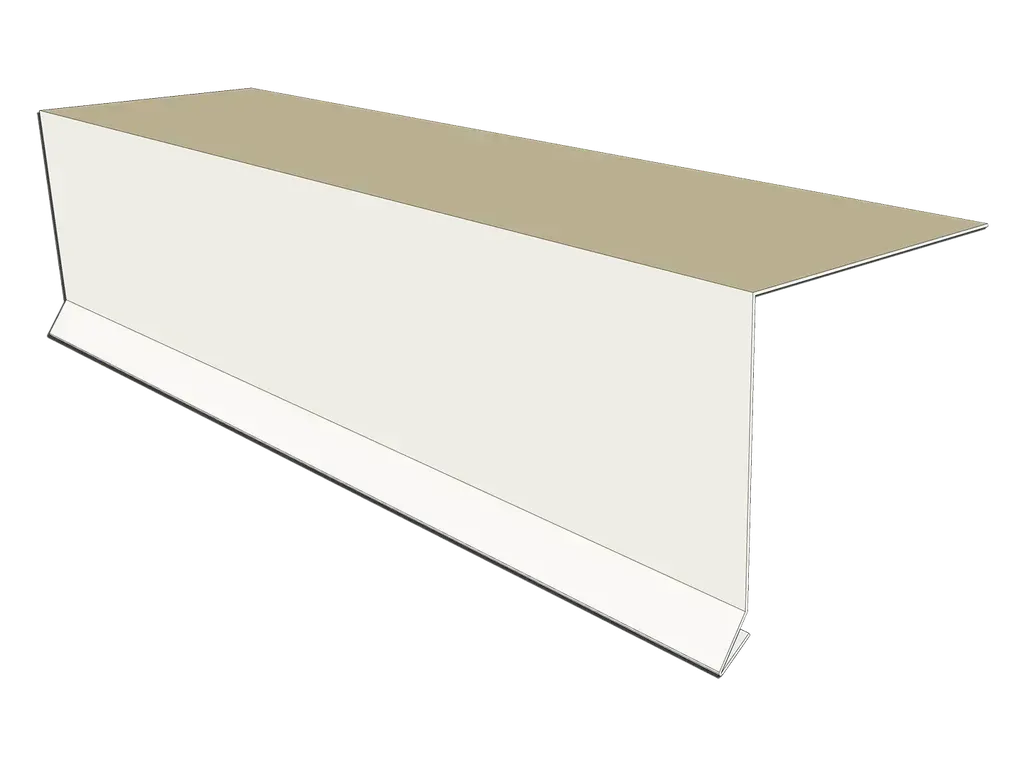

This simple drip edge profile, also known as "baldy cleat" is used on rubber roofs, slate and shingle roofs. It can be used to help direct water towards a gutter for example.
The name drip edge comes from the kick portion of this profile, at the very bottom, responsible for kicking the water away from the fascia board.
That portion is essentially a drip edge.
Other common names for our drip edge profiles include 2"x2" drip edge, 3"x3" drip edge, etc.
You may order custom profiles through this page, browse our store for other profiles or send us an email
for a quote on something even more intricate.
Specifications
- Material: 24 Gauge Kynar Steel
- 10' Lengths
- Made to Order
- Made in the USA
| (H) Nominal Size | Material | (A) Roof | (B) Face | (C) Kick | (D) Hem | Stock (Total Material) |
|---|---|---|---|---|---|---|
| 1.5" | Copper, Freedom Gray, Lead Coated Copper | 2.125" | 1" | 0.5" | 0.375" | 4" |
| 1.5" | Aluminum, Steel, Galvalume and Stainless Steel | 2.125" | 1" | 0.5" | 0.375" | 4" |
| 3" | Copper, Freedom Gray, Lead Coated Copper | 2.625" | 2.5" | 0.5" | 0.375" | 6" |
| 3" | Aluminum, Steel, Galvalume and Stainless Steel | 2.625" | 2.5" | 0.5" | 0.375" | 6" |
| 4" | Copper, Freedom Gray, Lead Coated Copper | 2.825" | 3.5" | 0.5" | 0.375" | 7.2" |
| 4" | Aluminum, Steel, Galvalume and Stainless Steel | 3.625" | 3.5" | 0.5" | 0.375" | 8" |
| 6" | Copper, Freedom Gray, Lead Coated Copper | 2.625" | 5.5" | 0.5" | 0.375" | 9" |
| 6" | Aluminum, Steel, Galvalume and Stainless Steel | 3.225" | 5.5" | 0.5" | 0.375" | 9.6" |
| 8" | Copper, Freedom Gray, Lead Coated Copper | 3.625" | 7.5" | 0.5" | 0.375" | 12" |
| 8" | Aluminum, Steel, Galvalume and Stainless Steel | 3.625" | 7.5" | 0.5" | 0.375" | 12" |
All dimensions are approximate with ~1/8" tolerance.
Ordering Instructions
Submittals & Downloads
Color and Material Options
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum Steel
Charcoal Grey Aluminum Steel
Classic Bronze (Dark Bronze) Aluminum Steel
Medium Bronze Aluminum Steel
Coppertone (Faux Copper) Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
