Standard Valley Flashing For Roofs - 10' Length
Flashing metal used on tile, slate and metal roofs. Available in 0.032" Kynar® Aluminum.
A roof valley is a channel created where two different roof slopes meet / where a roof changes direction.
A regular valley flashing is one that features only one bend in the middle, unlike the
W valley.

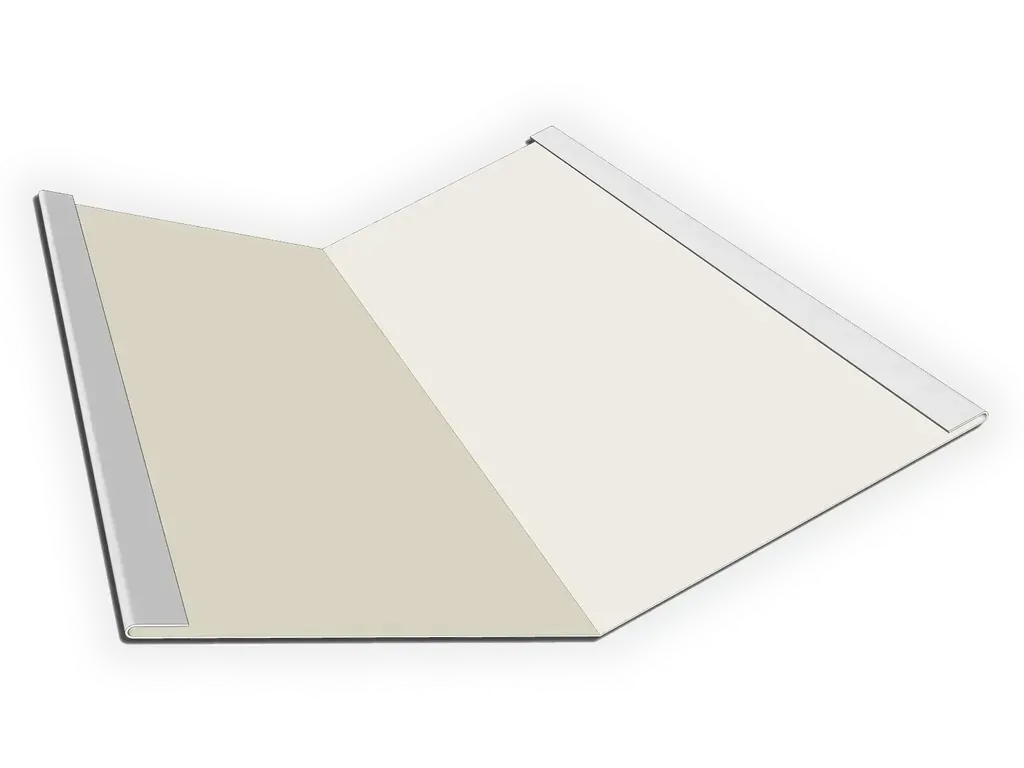

The V valley profile we sell features 1/2" open hems for clip installation, while making edges not sharp which is always a plus when carrying the material. Removing the hem, will make B and C dimensions grow.
Custom profiles and dimension changes can be quoted via email.
Specifications
Material: 0.032" Kynar® Aluminum
10' Lengths
Made to Order
Made in the USA
Nominal / Stock size
Material
(A) Open Hem
(B)
(C)
18"
Copper, Freedom Gray, Lead Coated Copper
0.5"
7.5"
1"
24"
Copper, Freedom Gray, Lead Coated Copper
0.5"
10.5"
1"
36"
Copper, Freedom Gray, Lead Coated Copper
0.5"
16.5"
1"
16"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
6.5"
1"
24"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
10.5"
1"
36"
Aluminum, Steel, Galvalume and Stainless Steel
0.5"
16.5"
1"
Hip and Valley Factor Table
Roof Pitch
Roof Slope
Hip or Valley Rafter Slope
Hip and Valley Factor
Finished Angle (Measured on the inside)
1"
4.76°
3.37°
1.4167
1.5"
7.13°
5.05°
1.4197
2"
9.46°
6.72°
1.424
166.5°
2.5"
11.77°
8.38°
1.4295
3"
14.04°
10.03°
1.4362
3.5"
16.26°
11.65°
1.444
4"
18.43°
13.26°
1.4529
154°
4.5"
20.56°
14.85°
1.4631
5"
22.62°
16.42°
1.4743
5.5"
24.62°
17.96°
1.4866
6"
26.57°
19.47°
1.5
143°
6.5"
28.44°
20.96°
1.5144
7"
30.26°
22.42°
1.5298
7.5"
32.01°
23.84°
1.5462
8"
33.69°
25.24°
1.5635
134°
8.5"
35.31°
26.61°
1.5817
9"
36.87°
27.94°
1.6008
9.5"
38.37°
29.24°
1.6207
10"
39.81°
30.51°
1.6415
126°
10.5"
41.19°
31.75°
1.663
11"
42.51°
32.95°
1.6853
11.5"
43.78°
34.12°
1.7083
12"
45°
35.27°
1.7321
120°
12.5"
46.17°
36.38°
1.7564
13"
47.29°
37.45°
1.7815
13.5"
48.37°
38.50°
1.8071
14"
49.4°
39.52°
1.8333
115°
14.5"
50.39°
40.51°
1.8601
15"
51.34°
41.47°
1.8874
15.5"
52.25°
42.41°
1.9153
16"
53.13°
43.31°
1.9437
111°
16.5"
53.97°
44.20°
1.9725
17"
54.78°
45.05°
2.0017
17.5"
55.56°
45.88°
2.0314
18"
56.31°
46.69°
2.0616
108°
18.5"
57.03°
47.47°
2.0921
19"
57.72°
48.23°
2.123
19.5"
58.39°
48.97°
2.1542
20"
59.04°
49.69°
2.1858
105°
20.5"
59.66°
50.38°
2.2177
21"
60.26°
51.06°
2.25
21.5"
60.83°
51.72°
2.2826
22"
61.39°
52.35°
2.3154
103°
22.5"
61.93°
52.98°
2.3485
23"
62.45°
53.58°
2.3819
23.5"
62.95°
54.17°
2.4156
24"
63.43°
54.74°
2.4495
24.5"
63.90°
55.29°
2.4836
All dimensions are approximate with ~1/8" tolerance.
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum
Matte Black Steel
Charcoal Aluminum Steel
Dark Bronze Aluminum Steel
Medium Bronze Aluminum Steel
Copper Penny Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
The most popular roof flashing metal colors in Galvalume Steel and Aluminum Kynar® are Bone White and Classic Bronze (Dark Bronze) Click here for a full list of Kynar® metal colors
Atas Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Common Roof Edge Metal and Flashing Metal Color Options
Black Aluminum Steel
Charcoal Grey Aluminum Steel
Classic Bronze (Dark Bronze) Aluminum Steel
Medium Bronze Aluminum Steel
Coppertone (Faux Copper) Aluminum Steel
Almond Aluminum Steel
Bone White Aluminum Steel
The most popular roof flashing metal colors in Galvalume Steel and Aluminum Kynar® are Bone White and Classic Bronze (Dark Bronze) Click here for a full list of Kynar® metal colors
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
