Industrial Box Gutters
What are Box Gutters?
Box Gutters are a type of gutter that features a more square / rectangular boxy look, hence the name box gutter.
At K&M Sheet Metal and Gutter Supply, we offer box gutters in several profiles, since these are bent on a brake. Normally offered in 10′ and 20′, we can actually bend such profiles in up to 21′ lengths. Modifications such as roof flanges are common on custom profiles.
These gutters are commonly seen in commercial and industrial applications, but are also used in homes for a more clean and modern look.
Box gutters are offered in colored Kynar material (0.032″ aluminum and 24 gauge galvanized steel), 24 gauge galvalume plus, 0.027″ regular standard aluminum colors and in copper, both 16 oz and 20 oz.
We also offer custom lengths, colors and materials for box gutters along with downspouts, elbows, hangers, end caps, outlets and any other gutter accessories needed.

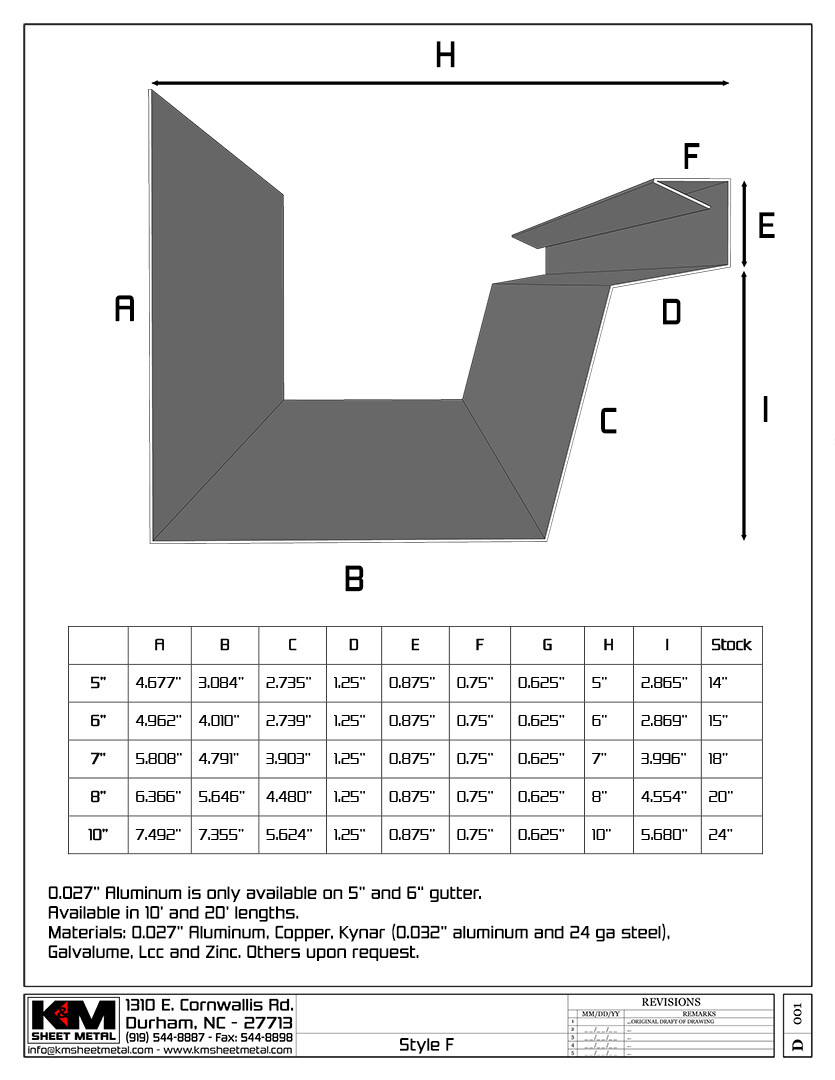

Industrial Box Gutter Profile - Sizes
Industrial Box Gutter - Material Weight and Thickness
| Box Gutter Size |
Material | Weight / Thickness |
|---|---|---|
| 5″ & 6" | Aluminum Standard Colors | 0.027″ thick |
| 5″, 6″, 7″, 8″, & 10" | Aluminum Kynar Colors | 0.032″, 0.040″ thick |
| 5″, 6″, 7″, 8″, & 10" | Copper | 16 oz, 20 oz /sqf |
| 5″, 6″, 7″, 8″, & 10" | Galvalume | 24 Gauge, 26 Gauge |
| 5″, 6″, 7″, 8″, & 10" | Galvanized Steel Kynar Colors | 26 Gauge, 24 Gauge |
| 5″, 6″, 7″, 8″, & 10" | Lead Coated Copper | 16 oz, 20 oz /sqf |
| 5″, 6″, 7″, 8″, & 10" | Stainless Steel | 26 Gauge |
| 5″, 6″, 7″, 8″, & 10" | Zinc | 0.7mm |
| Industrial Box Gutter Size | A | B | C | D | E | F | G | H | I | Stock |
|---|---|---|---|---|---|---|---|---|---|---|
| 5″ Box Gutter | 4.677″ | 3.084″ | 2.735″ | 1.25″ | 0.875″ | 0.75″ | 0.625″ | 5″ | 2.865″ | 14″ |
| 6″ Box Gutter | 4.962″ | 4.010″ | 2.739″ | 1.25″ | 0.875″ | 0.75″ | 0.625″ | 6″ | 2.869″ | 15″ |
| 7″ Box Gutter | 5.808″ | 4.791″ | 3.903″ | 1.25″ | 0.875″ | 0.75″ | 0.625″ | 7″ | 3.996″ | 18″ |
| 8″ Box Gutter | 6.366″ | 4.646″ | 4.480″ | 1.25″ | 0.875″ | 0.75″ | 0.625″ | 8″ | 4.554″ | 20″ |
| 10″ Box Gutter | 7.492″ | 7.355″ | 5.624″ | 1.25″ | 0.875″ | 0.75″ | 0.625″ | 10″ | 5.680″ | 24″ |
Submittals & Downloads
Color and Material Options
0.027" Aluminum Box Gutter Color Options
Black
Dark Bronze
Musket Brown
Royal Brown
Almond
Linen
Low Gloss White (30°)
High Gloss White (80°)
Pac Clad Standard 0.032" Kynar® Aluminum and 24 Gauge Galvalume Steel Box Gutter Color Options
Black
Matte Black
Charcoal
Dark Bronze
Medium Bronze
Copper Penny
Almond
Bone White
Common Material Options for Box Gutters
Copper
Pre Patina Copper
Freedom Gray®
Galvalume Plus
Lead Coated Copper
Zinc
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
