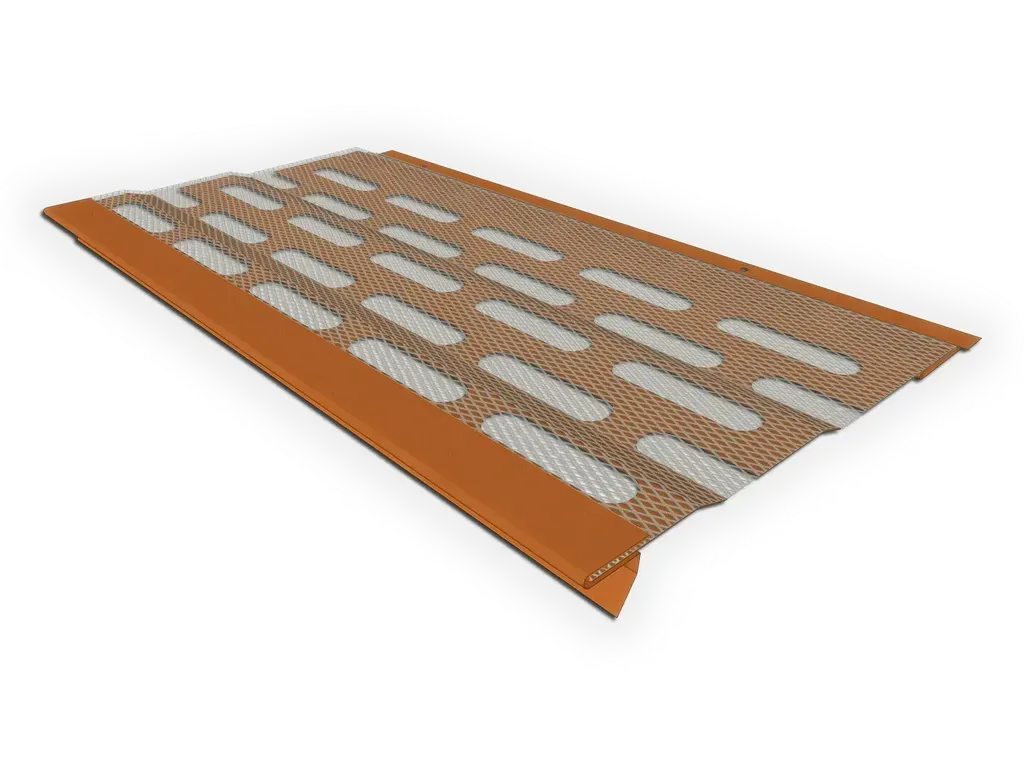

K&M's Under Roof Copper Gutter Guards - Available in 16 oz. and 20 oz.
Gutter Screen made to fit K-Style Gutter, Box Gutters or Half-Round Gutters
K&M's Leaf Gutter Screen combines the strength of a solid gutter helmet® / hood with the ability to capture water in a heavy rain using
our offset laser cut hole design and Stainless Steel Micro Mesh wire screen skin. The perfect solution to keep leaves out of a gutter! This version of the gutter screen is made exactly the same as our traditional gutter screen, with the exception of the back, where a bend used to fasten the product
to a fascia board is not present. This allows for this flat gutter screen to be installed directly under the roof at an angle, or to be bent by the installer
(even by hand) to match the roof pitch.
We think our Gutter Screen is the best option available in the market,
giving you one type of cover that will work with all kinds and sizes of gutters, offering multiple material options and the most important feature, minimal maintenance! The profile changes slightly from the picture depending on your gutter choice to fit either K-Style, Box, or Half Round Gutters.
The #1 reason why you would pick our gutter screen is because of its strength. Our gutter guards are backed up by solid metal, making them
much stronger and less susceptible to dents and sagging due to debris weight. Cheaper guards feature only a wobbly mesh.
Advantages of our Gutter Screen
Bendable by hand to match roof pitch
Strength of a solid gutter cover
Offset hole top pattern ensures water flow into the gutter heavy rains
Available for Reverse Bead or Euro Bead Half Round Gutters, K-Style Gutters and K&M's Box Gutters
Can be customized for custom profile gutters
Available in any of our standard materials and common colors to blend in with our gutters or others
Stainless Steel micro screen mesh keeps leaves and small debris out of your gutter while letting water through
Sold in 5' lengths allowing for a faster installation / less expensive shipping
Available in 5", 6", 7", 7.6", 8" and 10"
Stainless Steel Mesh Specifications
Nominal Size: 26x26
Wire Diameter: ~0.0075" / ~0.19mm
Opening Size: ~0.031" / ~0.79mm
Open Area Percentage: ~64%
Installation
The front portion may be secured to the front bead of the gutter via rivets or screws. The back part
will sit on the roof, under the roof shingles, slates or tiles and may be
bent to match he roof pitch if necessary. Normally, this is an extremely easy installation with minimal work required, however, in some installations, for some gutters, some on site tweaking may be necessary.
Please keep this in mind.
Attaching lengths is much like doing the same with gutters, by overlapping and securing them if needed. You can also just butt the seams. Same goes for miters, cut as needed, overlap and attach.
Free sample
We offer a free 1' sample in aluminum. Pick up at our location, or have it shipped (shipping not included).
Copper is the most popular metal for gutter screens. It is offered in 16 oz. and 20 oz.
Freedom Gray® (zinc / tin coated copper) is offered in 16 oz. and 20 oz.
Galvalume Plus is offered in 24 gauge.
Lead Coated Copper is offered in 16 oz. and 20 oz.
Stainless steel is offered in 24 gauge 304 2B.
Zinc is offered in 0.7 mm and 0.8 mm with a raw finish.
Other colors, materials and thickness may be available upon request. Colors displayed for reference only.
Please click here for a full selection of colors and materials offered.
